Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | RICHI | Model Number | BX-215 | |
| Voltage | 380v | Power(W) | 45kw | |
| Dimension(L*W*H) | 1470*1550*970MM | Weight | 2T | |
| Certification | CE, ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
wood log drum chipper/ wood shaver machine/2016 drum type wood chipper
Introduction of wood log drum chipper/ wood shaver machine
Drum wood chipper series is the special equipment, production of wood products are widely applied in particieboard factory, and the high density fiberboard,stubble, biomass powder plant,wood factory industries and manufacturer of preparation before production units.
Raw material for wood log drum chipper/ wood shaver machine
This machine is designed with high precision, simple operation, easy to use,can chip all kinds of big logs.
Working principle for wood log drum chipper/ wood shaver machine
put the wood into machine by feeding hole and wood is high-speed rotating when contacting with knife roller.the final wood chip is discharged by high speed steam.

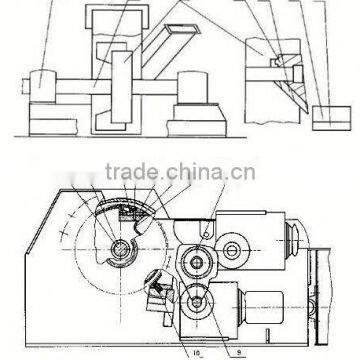

Equipment structure of wood log drum chipper/ wood shaver machine
This equipment mainly consists of main parts such as: machine body, knife roller,feeding unit, hydraulic system etc.
Data of wood log drum chipper/ wood shaver machine
| Model | BX-215 | BX-216 | BX-218 |
| Feeding size | 160*400mm | 230*500mm | 300*680mm |
| knife | 2 | 2 | 2 |
| Speed of knife roll | 592r/min | 590r/min | 650r/min |
| Max cutting diameter | 160*400mm | 230*500mm | 300*600mm |
| Wood chip size | 30mm | 30mm | 30mm |
| Capacity | 3-5t/h | 8-10t/h | 14-18t/h |
| Motor power | 45kw | 55kw | 100kw |
| Feedingroll power | 2.2-3 | 3-4 | 4-5 |
| Oil pump power | 1.5*1kw | 1.5*1kw | 1.5*1kw |
| Machine weight | 2990kg | 5030kg | 7000kg |
| Machine size | 1470*1550*970mm | 1800*1900*1210mm | 2200-2150*1500mm |
| Conveyor power | 3kw | 3kw | 3kw |

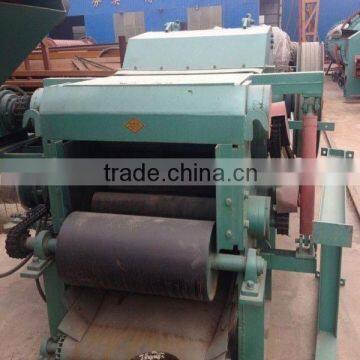

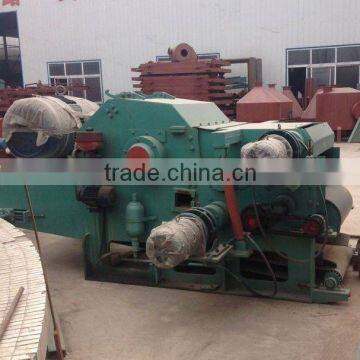

Machine in workshop:
Working site:
Customer's visiting and transporting
