Tension Clamps Anchor Clamps For 2 or 4 Insulated Conductors
Negotiable
/ Piece
1000 Pieces(Min. Order)
- NINGBO
- T/T
You May Like
-
Hot DIP Galvanizing Outer Hexagonal Bolt With Nut for Used on Transmission Line
-
Hot DIP Galvanizing Outer Hexagonal Bolt With Nut for Used on Transmission Line
-
Hot DIP Galvanizing Outer Hexagonal Bolt With Nut for Used on Transmission Line
-
Hot DIP Galvanizing Outer Hexagonal Bolt With Nut for Used on Transmission Line
-
Hot DIP Galvanizing Spacer Bolt With Nut for Used on Transmission Line
-
Connectors/Insulating Piercing Connector-Standard Type
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HAIVO | |
| Model Number | PA | Usage | Pipe Clamp | |
| Material | Aluminium | Structure | Suspension Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Tension clamps Anchor Clamps For 2 or 4 Insulated Conductors1.section area:2.0KN-3KN
2.reasonable price
Tension clamps Anchor Clamps For 2 or 4 Insulated Conductors
•Summary:
1.The wedge grip clamps are designed to anchor insulated service lines with 2 or 4 conductors; Tool free installation with wedges sliding inside the body, easy to open bail permits fixing to brackets and pigtails,The clamp made of weather resistant polymer ,
2.The PA435 was application on 2,3, or 4 core overhead L.V twisted insulated cable
•Technical Specification:

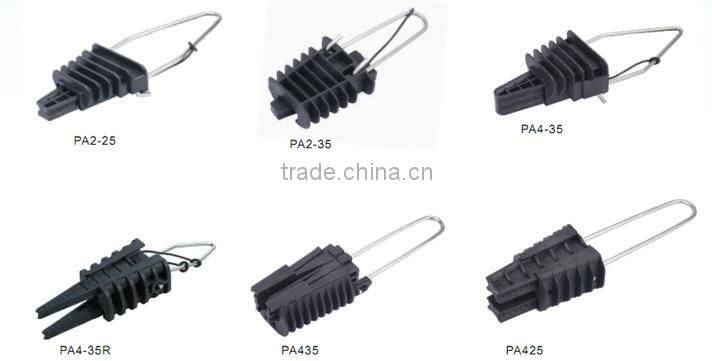

Type | Breaking load2 | Section area(mm) |
PA2-25 | 2*6-25 | 2.5kn |
PA2-35 | 2*16-35 | 2.5kn |
PA4-35 | 4*6-35 | 2.5kn |
PA4-35R | 4*10-35 | 2.5kn |
PA435 | 2*6,4*35 | 2.5kn |
PA425 | 2*16,4*25 | 2.5kn |
