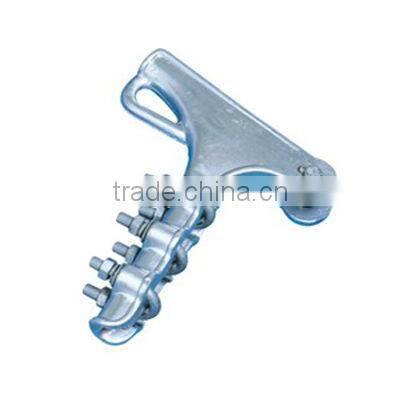

Aluminum Alloy Strain Clamp (Bolt Type)
US$ 0.2 - 10
/ Piece
1000 Pieces(Min. Order)
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HAIVOL | |
| Model Number | NLL-1 | Usage | Heavy Duty | |
| Material | Aluminium | Structure | Other, strain clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
Aluminum Alloy Strain Clamp (Bolt Type)1.material:aluminum-alloy
2.failing load not less than:40kn
3.good use-low price
Aluminum Alloy Strain Clamp (Bolt Type)
NLL series bolt type ALUMINUM ALLOY STRAIN CLAMPS is applicable to 35KV and below aerial circuits. To fix aliminum stranded conductor or steel core aluminum stranded conductors.
Technical Specification:
Application of NLL NLD Aluminium Alloy Strain Clamp (Bolt Type)
Strain clamp(Bolt type)is suitable for aerial line up to 35kv,fixing aluminium wire or steel core minium wire on the strain pole aerial insulation aluminium comductor and insulation aluminium cover are being used together action is insulation protection.

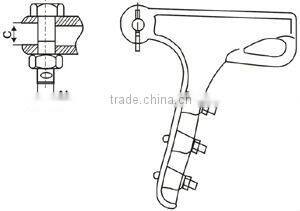

| Part No. | Applicable Conductor(mm) | C | M | U bolts | Rated failure Load(KN) |
| NLL-1 | 5.0-10.0 | 18 | 16 | M12×2 | 40 |
| NLL-2A | 10.0-14.0 | 18 | 16 | M12×2 | 40 |
| NLL-2B | 8.2-17 | 21 | 16 | M10×3 | 70 |
| NLL-3A | 14.0-18.0 | 28 | 18 | M14×3 | 70 |
| NLL-3B | 8.2-20 | 24 | 16 | M14×4 | 70 |
| NLL-4 | 18.0-23.0 | 34 | 18 | M16×3 | 90 |
| NLL-27 | 12.48-21.66 | 30 | 18 | M16×4 | 90 |
| NLL-5 | 23.0-29.0 | 36 | 18 | M16×5 | 100 |
| NLL-6 | 25.9-32.67 | 40 | 22 | M16×5 | 100 |
