Home > Products > Hardware Fittings for Oveahead line > Yoke Plate(UB Type)
Yoke Plate(UB Type)
Negotiable
/ Piece
1000 Pieces(Min. Order)
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HAIVO | |
| Model Number | UB |
Product Description
Specifications
Yoke Plate(UB type)1.material:aluminium alloy
2.rated failure load:70/80/100/120/160/210/300kn
Yoke Plate(UB type)
•material:Hot-dip galvanized steel
•Basic Data:

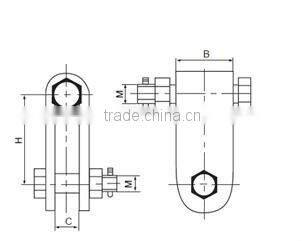

type | Dimensions(mm)
| Rated failure load (KN) | |||
B | C | M | H |
| |
UB-7 | 45 | 18 | 16 | 70 | 70 |
UB -10 | 45 | 20 | 18 | 80 | 80 |
UB -12 | 60 | 24 | 22 | 100 | 100 |
UB -16 | 60 | 26 | 24 | 100 | 120 |
UB -21 | 70 | 30 | 27 | 100 | 160 |
UB -30 | 70 | 39 | 36 | 150 | 210 |
UB -12T | 45 | 24 | 22 | 100 | 300 |
UB -16T | 45 | 26 | 24 | 100 | 120 |
UB -21T | 60 | 30 | 27 | 120 | 160 |
UB -30T | 60 | 39 | 36 | 150 | 210 |
