High Voltage Disconnectors GW9-15G
Negotiable
/ Piece
100 Pieces(Min. Order)
- ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HAIVO | |
| Model Number | GW9-15G | Max. Current | 400/630A | |
| Max. Voltage | 15KV |
Product Description
Specifications
High Voltage Disconnectors1.Rated voltage:15KV
2.Reasonable price for all clients
3.Rich experience in export

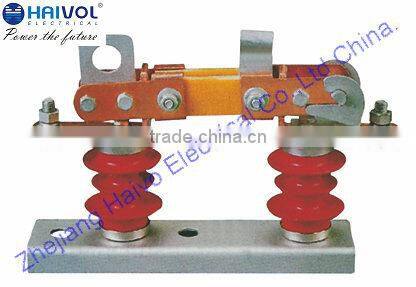

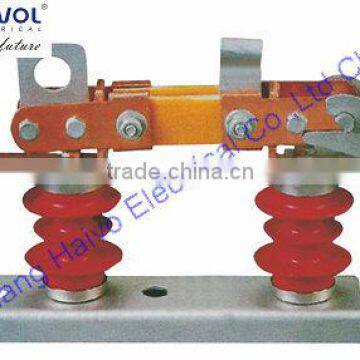

High Voltage Disconnect Switch GW9-15G
The "GW9-15G"type of outdoor high voltage isolator switch is the high voltage switch equpment of single phase AC 50Hz.The prducts is suitable for power system with rated voltage 15KV to make or break power supply under circumstances of with voltage and nomload.
The isolator is adopts islated hook rod to operate.
Technical Specification:
| Type | Rated voltage (KV) | Rated current (A) | 4S Heat steady e.c | Shock voltage (A) | Impulse withstand voltage | Power-frequency withstand voltage | ||
| Relatively earth | Between fracture | Relatively earth | Between fracture | |||||
| GW9-15G/400 | 15 | 400 | 12500 | 31500 | 75 | 85 | 38 | 42 |
| GW9-15G/630 | 15 | 630 | 12500 | 31500 | 75 | 85 | 38 | 42 |
