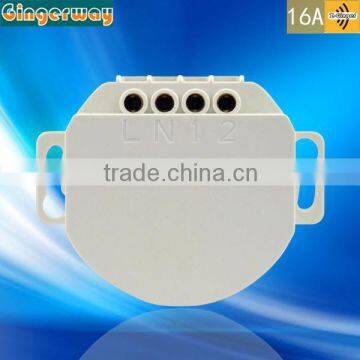

GW-6322M Smart RF 2-Gang Switch Module(Neutral Optional) OEM smart home automation wireless remote control lighting switch

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GINGERWAY	Model Number	GW-6322M
Operating Temperature	0-60℃	Max. Current	10A
Max. Voltage	250V

Product Description

Specifications

Wires in behind existing wall switch or in fixture box, 2-way communication, fast response, Neutral line is optional

Product Description

1.Wires in behind existing wall switch or in fixture box

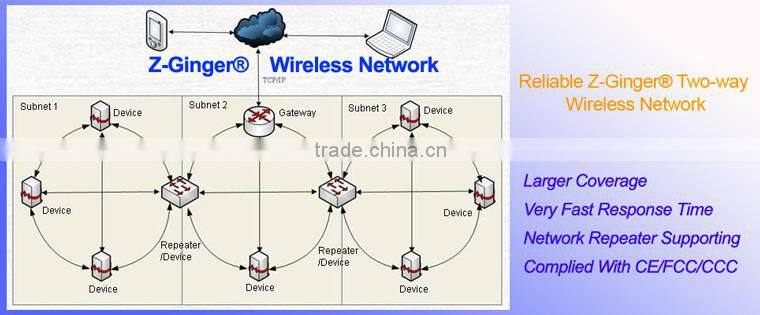

2.Proprietary Z-Ginger ® smart home wireless network: 2-way communication, fast response and high reliability

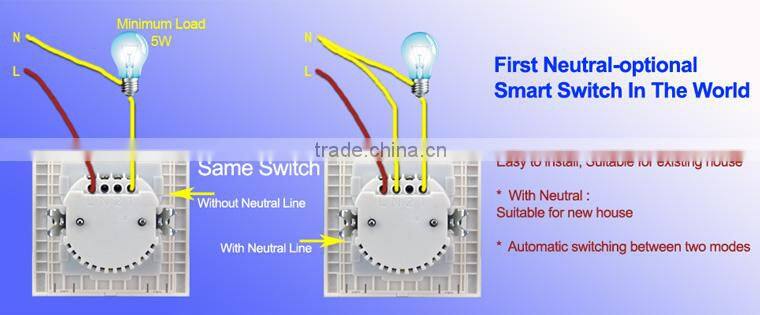

3.Neutral line is optional
4.Compatible with latching and single momentary switches
5.All settings preserved in non-volatile memory, even through power failures
6.Suitable for a wide variety of lamps and other loads
7.Very low power design
8.Maximum load power 2000W when neutral line is connected

Color

White: GW-6322M

Application Scope

Compatible with latching and single momentary switches

Specifications

Power Supply	110 ~ 250VAC 50/60HZ	Standby Power Consumption	≤30mw
RF Frequency	433MHz(315M, 868M, 915M Available)	RF Transmit Power	~10dbm
RF Receiver Sensitivity	≤-105dbm	Maximum Load Power	Total Power of 1000W(Maximum Load Current ≤5A) Resistive Load:<1000W Capacitive Load:<200W Inductive Load:<300W
Minimum Load Power	5W(Only for neutral line is NOT connected)	Mounting Box Size	> 77mm77mm50mm Please test before installation
Working Temperature	0-60℃	Environment Humidity	≤80%(Non-condensing)
*Dimensions (L W * H)**	Without Ear: 51.5mm52mm23.5mm With Ear: 67mm52mm23.5mm	Weight	60g

High Quality Switch

Gingerway App

Wireless Network

IR&RF Universal Remote Controller

Gingerway Solution
