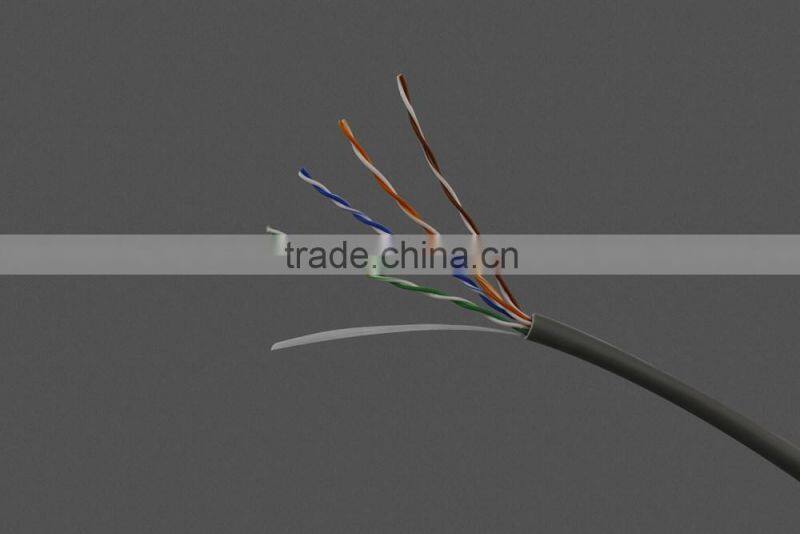

4 Pairs 23awg UTP Cat6 Cable Network Wire

Product Description

JINCHENG CAT6 cable to meet the basic standards of the CAT6. It is performance over the 4196 TIA SPANSI/EIA-586-A in Appendix 5 of the Enhanced CAT6  requirements.100 MHz and about to ensure that application requirements. JINCHENG CAT6  cable can even be used to more than 100 MHz bandwidth cabling channel,and to maintain a good stability.

Product Features

1) Decreasing length of the cable distance marker,reduced waste.

2) Very easy to install

3) Good stability

4) Small diameter, not twist at the time of instalation

Product Features

1) Impedance: (f=1-100MHz)100±15%

2) Delay deviation (max) 45ns/100m

3) Temperature range: -40 to +70°C

Industry Standard

1) ISO/IEC 11801:2002 and Edition(category 6)

2) ANSI/TIA/EIA-568-B; ISO YD/T1019-2001

3) EN 50288-6-1, EN 50173-1 compatible with all existing hardware connectivity

4) EN71 standard of green jacket

Applications

This is the most commonly used Ethernet Cable. Can be used for voice transmission and a maximum transfer rate of 100 Support for all lower-level Cat.5 cabling system.

Technical specification

UTP cat5e stranded 4P 24AWG cable
				1-Conductor
				Type: Stranded-Bare copper
				Diameter: 0.50±0.05mm
				2-Insulation
				Type: PE solid
				Diameter: 90±0.05mm
				3-RIP Cord
				Yes
				4-Outer Jacket
				Type:PVC     Colour:Grey
				Thickness: ≥0.5mm
				External Iameter: 5.4±0.2mm
Cable Description
Paramter			Unit		Value
Max.linear tesistance.			Ω/km		≤93.8
Mutual Capacity(nom).			nF/KM		52±6
Insulation Resistance(20℃)			MΩ/km		≥5000
Characteristic Impedance			/		100 ±15
Velocity Of Propagation			% of c		69
Insulation Elongation    ≥    300%
Electrical Characteristics
Frequency(MHz)	Return Loss(dB)	Attenuation(dB/100m)	Next(dB)	Psnext(dB)	Elfext	Pselfext
1	≥20	≤2.9	≥63.3	≥62.3	≥63.8	≥60.8
4	≥23	≤4.1	≥54.3	≥53.3	≥51.8	≥48.8
10	≥25	≤6.5	≥49.3	≥47.2	≥43.8	≥40.8
16	≥25	≤8.2	≥46.2	≥44.2	≥39.7	≥36.7
20	≥25	≤9.3	≥44.8	≥42	≥37.8	≥34.8
31.25	≥23.6	≤11.7	≥41.9	≥39.9	≥33.9	≥30.9
62.5	≥21.5	≤17	≥37.4	≥35.4	≥27.9	≥24.9
100	≥20.1	≤22	≥34.3	≥32.3	≥23.8	≥20.8
