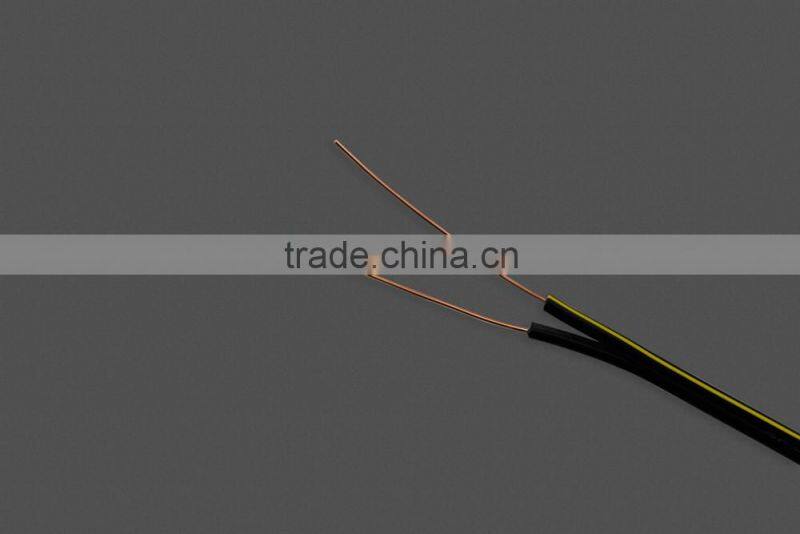

TELEPHONE DROP WIRE PURE COPPER TELEPHONE CABLE

Drop Wire (2 ×18 AWG) Description

Technical specification

18 AWG drop wire test stanard and test method
Spec.	2*1.024	Length	300m	Test temperation	20℃
Number	Test item	Specification standard		Test method
1	Conductor dia	1.024±0.01mm		Digital micrometer

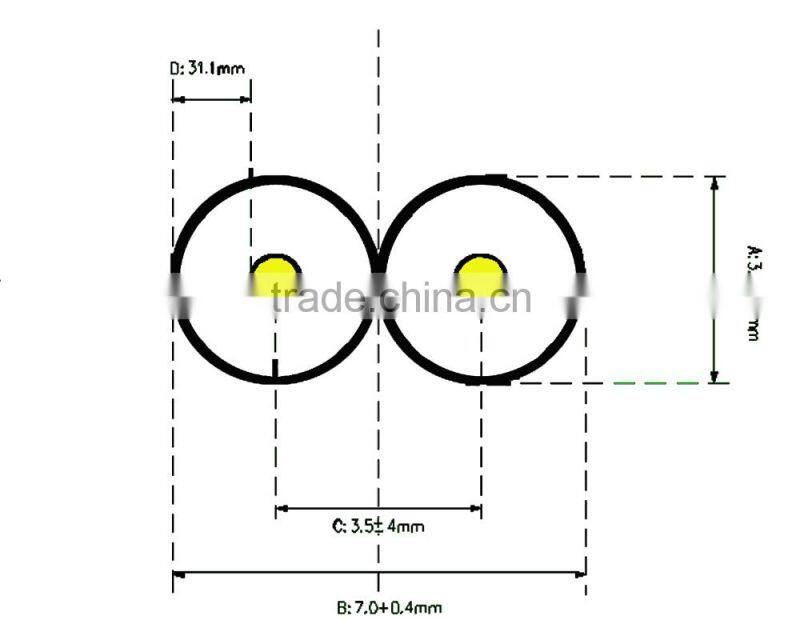

2	Jacket outer dia	Drawing	A:3.5±0.2mm	Microscope/Caliper
			B:7.0±0.4mm
			C:3.5±0.4mm
			A:≥1.1mm
3	Conductor tension strength	≥45.5kg/mm2		Test length is 250mm,speed is 100mm/min;
4	Insulation resistance(dry) 15.6℃	≥92Mohm/km
5	Dielectric strength(dry)	DC 7500V 3min
6	Mutual capacity	69nF/km		Tolerance as+10nF/km to -5nF/km
7	Attentuntion(20℃)	150KHZ	≤5.2dB/km(pair)	≤5.0dB/km max. average (test five pair)
		772KHZ	≤18.0dB/km(pair)	≤15dB/km max. average (test five pair)
8	DC resistance 20℃	≤44.5ohm/km pair
9	Drawing(yellow trace)

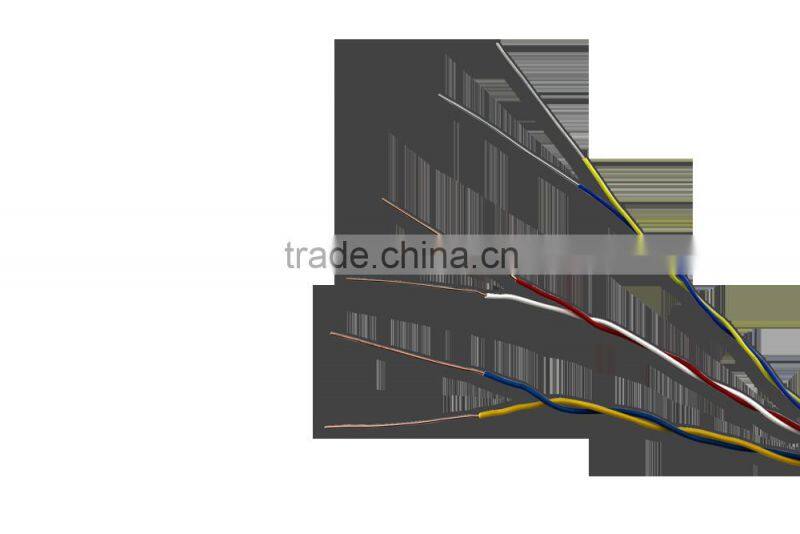

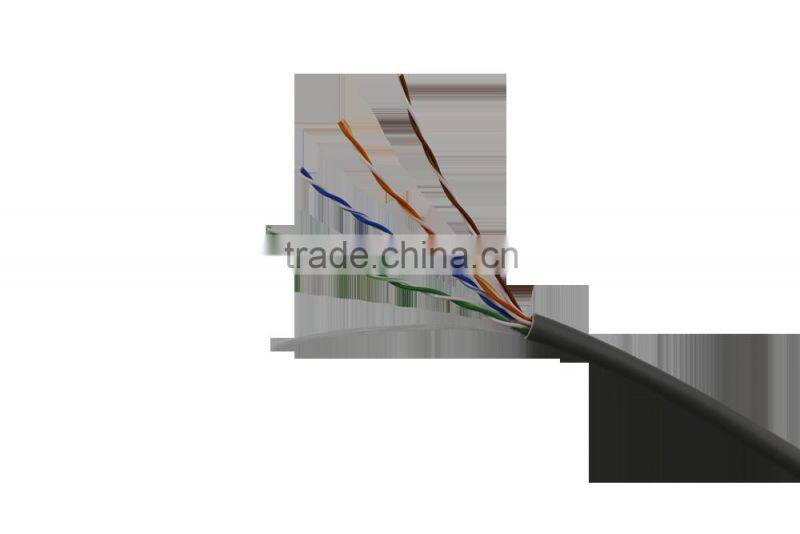

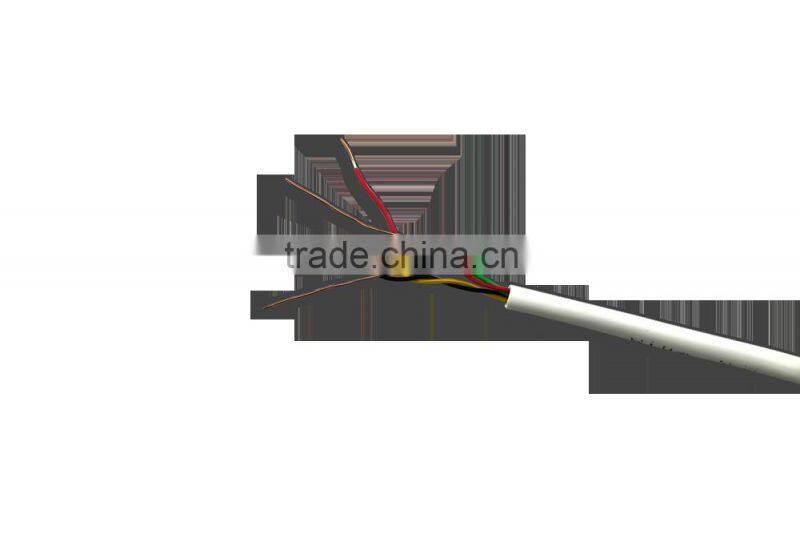

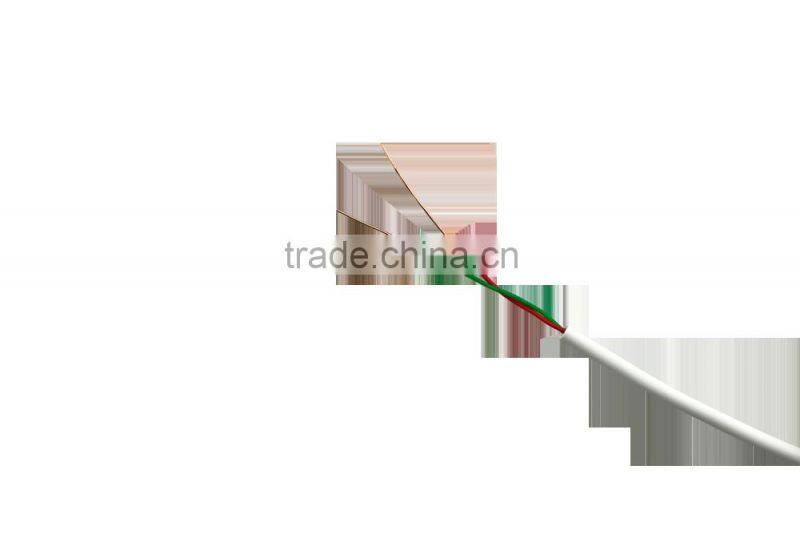

Other types of copper wire

 About Us

 Hangzhou Jincheng Industry Co., Ltd. (former Hangzhou Jincheng Plastics Co., Ltd.)was founded in 1988, the company specializes in producing PVC, PE, PP, PPR series of pipes,pipe fittings, PVC wires and cables, digital communication standard with solid polyolefin insulation and twisted pair cables (network cables), plastic inspection chamber and the PVC cable compounds. Hangzhou Jincheng Industry Co., Ltd. was named Zhejiang Province, Zhejiang Province science and technology enterprises, Province execellent products, high-tech enterprises in Hangzhou, Hangzhou brand, is focused on AAA-class hundred and integrity Enterprise, Zhejiang industrial and commercial enterprises credit AAA level "good credit" unit.

The company is located in the western suburbs of Hangzhou, the scenic town of Jingshan Lu(Tea siant)capital, land and water and convenient air transportation, business area of 50,000 square meters, construction area of 18,000 square meters, the company has assets of 130 million yuan, with advanced production equipment and technology, strong technology, with the most advanced imported and domestic testing equipment, the annual production capacity of 680 million yuan.

The company has always insisted that "science and technology innovation, first-class products, satisfactory service, continuous upgrading of quality standards to meet customer requirements," the quality, in strict accordance YD/T1019-2001, ISO3633, GB/T8815-2008, GB / T2782-2006, CJ/T233-2006 standards organizations such as the production, since 91 years, our products are qualified by the Bureau of Technical Supervision sampling products and participate in national industry standards, quality and prestige in Zhejiang Province was named products, product sales to more than 20 domestic provinces and the Americas, Europe, Southeast Asia and Hong Kong.

Companies adhere to the customer as the center in 1998 through ISO9001 quality system certification, certification in 2008 by Theil, stable product quality tends to improve the development of state enterprises to improve customer service and management network, the company chairman Mr. Zheng Jinbang, General Manager Mr. Wang Yun warmly welcome new and old customers to create the future.

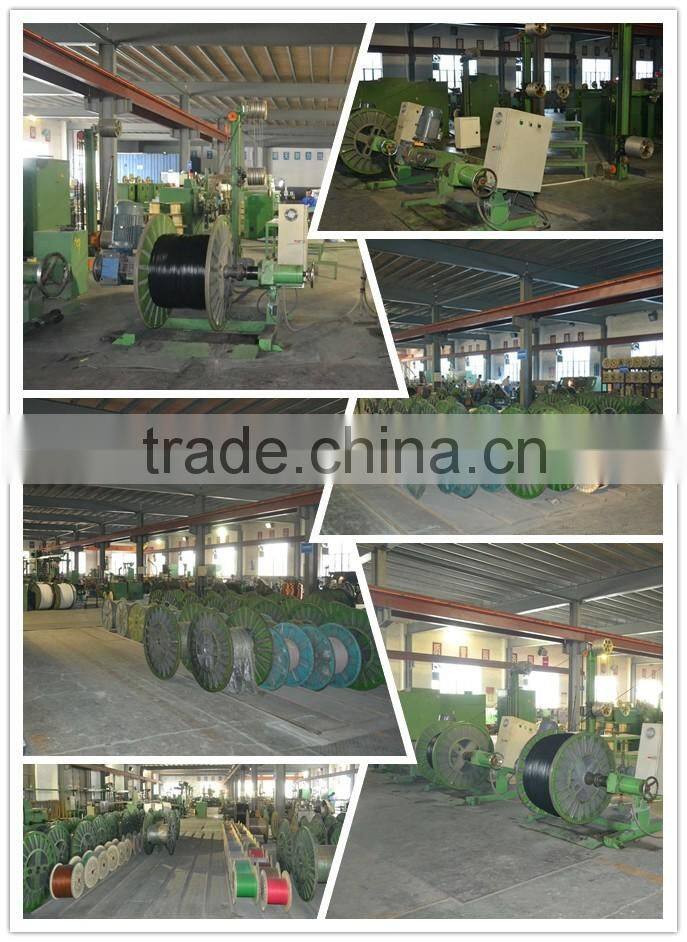

Test equipment and Production equipment

Patent certificate of wire and cables

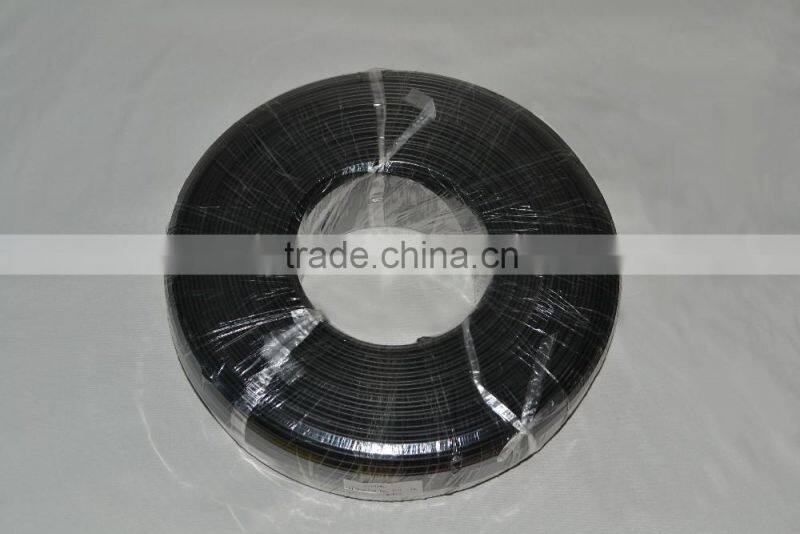

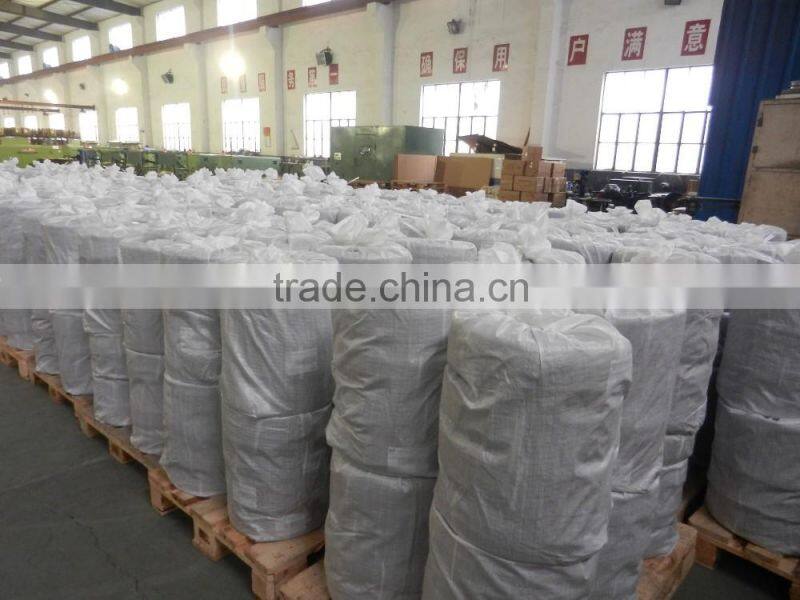

Package information
