Home > Products > Mobile Printers > Sanor 58mm PDM-02 dot matrix mobile printer

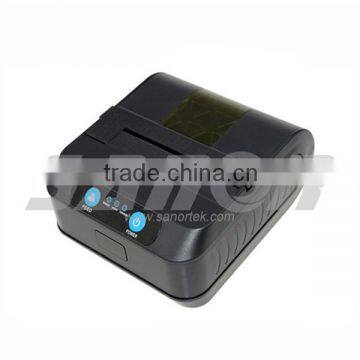

Sanor 58mm PDM-02 dot matrix mobile printer
- 10000 Set / Sets per Month
- xiamen
- Credit Card
You May Like
-
Sanor 58mm bluetooth portable thermal printer
-
58mm PTP-II Cheap Thermal Bluetooth Android Handheld Printer
-
Sanor 58mm thermal receipt mobile printer
-
Sanor PTP-II 58mm portable bluetooth mobile printer
-
Sanor PTP-II 58mm Mini Mobile Thermal Printer for Google Cloud Print
-
Sanor PTP-II 58mm bluetooth thermal portable printer for tablet
Product Details
Products Status | Stock | Type | Dot-matrix | |
Style | Other, Impact Dot-Matrix | Use | Barcode Printer | |
Interface Type | Other, USB/RS232 | Max Paper Size | 58mm | |
Black Print Speed | 50-80mm/s | Color Print Speed | NA | |
Max. Resolution | 240dots/line | Brand Name | Sanor | |
Model Number | PDM-02 | Place of Origin | Fujian, China |
Product Description
Sanor 58mm PDM-02 dot matrix mobile printer
Product Description
Feature:
Dot matrix impact printing method
Unique rugged design withstands droping up to 1.2 meters
Support printing when battery in charging
Intelligent quick battery charging
Large paper capacity and long battery life
Application:
Mobile POS/Retail
Hospitality
Packing citation
Deliveries
Onboard Transportation
Field reparts/Installation
Warehouse/ logistics
Utility billing/meter reading
Specification:
Printing Method | Dot Matrix |
Resolution | 5 dots/mm(127dpi),240 dots/line |
Effective Printing Width | 48mm |
Printing Speed | 1.2 lps |
Character Set | ASCII,GB2312(Chinese) |
Print Font | ANK: 7 x5/12 x6/16 x8, Chinese: 12 x 12/16 x 16 |
Self-defined Character | Yes |
Graphic | Support bitmap downloading |
SDK | Android |
Driver | Windows XP/Windows Vista/Windows 7 |
Paper End Sensor | Yes |
Black Mark Location | Yes |
Auto Sleeping | Yes |
Interface | PDM02-BT:RS-232/USB+Bluetooth; |
PDM02-IR:RS-232/USB+Raw-IR | |
PDM02: RS-232/USB | |
Battery | DC7.4V,2000mAh rechargeable Li-ion battery |
Charger | DC12V/1A |
TPH | 1.5 Million lines |
Paper Type | Plain paper |
Paper Width | 57.5± 0.5mm |
Paper Thickness | 0.06 to 0.08mm |
Paper Roll Diameter | 40mm(Max.) |
Paper Supply Method | Semi-auto Loading |
Paper Cutting Method | Manual |
Operating Temp/Humidity | -10-50°C/10%-80% |
Storage Temp/Humidity | -20-60°C / 10%-90% |
Dimension | 99×112.3×46(W×D×H) mm |
Weight | 345g (with battery,without paper roll) |
Company Information
Xamen Sanor Electronic Technology Co.,LTD. is a professional printing solutions of high and new technology Company. with the factory Located in the beautiful coastal city - xiamen.The company since was established,has been focused on bill printing field, always adhere to independent innovation, and has a number of intellectual property rights, after years of development and technology accumulation, the company designed and developed a variety of printing equipment are very popular with the masses of customers at home and abroad. Is the current domestic professional micro print solution development and one of the manufacturers.
1.we own the advanced production facilities for manufacturing printers.
2. our company employee the skill-full workers, almost service in our company for over 4 years.
3.we have the professional team in sourcing and quality inspection team. Every printer will request for abundant of times inspection from raw material to a finished product, such as raw material sourcing assessment, incoming material inspection, PCB board test, auto cutter test,printerhead test... finished printer test and so on.
4.our experienced packing team will pack every printer in strong carton in best way for air/seaworthy transportation.
We take care of everyting from manufacturing to goods arrival!
FAQ
1, Q: Are you a factory or trading company?
Sanor:We are a manufacturer,owing the professional design group,skill-full staffs and quality inspection team,located in add:3/F,No.318,Tongji South Road,Jimei District,Xiamen,China,361021.
2, Q: We would like to have our own brand, is that ok?
Sanor:Yes, we can accept OEM/ODM with your brand or your design. But we will require a MOQ for different models.
3, Q: Besides the English language, do your printers support other languages? And what operation system they backup?
Sanor:Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux operation systems.
4, Q: How much your sample?
Sanor:(1) Samples charge:According to your order printer. Sampling time:5-7days
(2) Return:the sample charge will be return when we get your large order.
5, Q: What sale after service do you offer?
Sanor: Each printer will have 12 months warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
Contact Us
- Xiamen Sanor Electronics Co., Ltd.
- Contact nameAbby Qiu Chat Now
- Phone86-0592-5794166
- Address4/F,No.318 ,Tongji South Road,Jimei District,Xiamen,China., Xiamen, Fujian
