fine Al-mg alloy wire drawing machine
- 50 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Inlet Diameter | 0.6-1.2mm | |
| Outlet Diameter | 0.10-0.40mm | Place of Origin | Jiangsu, China | |
| Brand Name | Jiacheng Al-mg alloy wire drawing machine | Model Number | JCJX-28D Al-mg alloy wire drawing machine | |
| Voltage | 380V 50/60HZ | Power(W) | 10000 | |
| Dimension(L*W*H) | 2.0m 1.6m 1.9m | Weight | 2300kg | |
| Certification | CE,ISO9001:2008,BV | Warranty | 12 month for mechanical part, and 6 month for electrical part | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
fine Al-mg alloy wire drawing machine1,double inverter control
2,making wire from 1.17 mm to 0.1-0.4mm
3,with CE,ISO, TUV

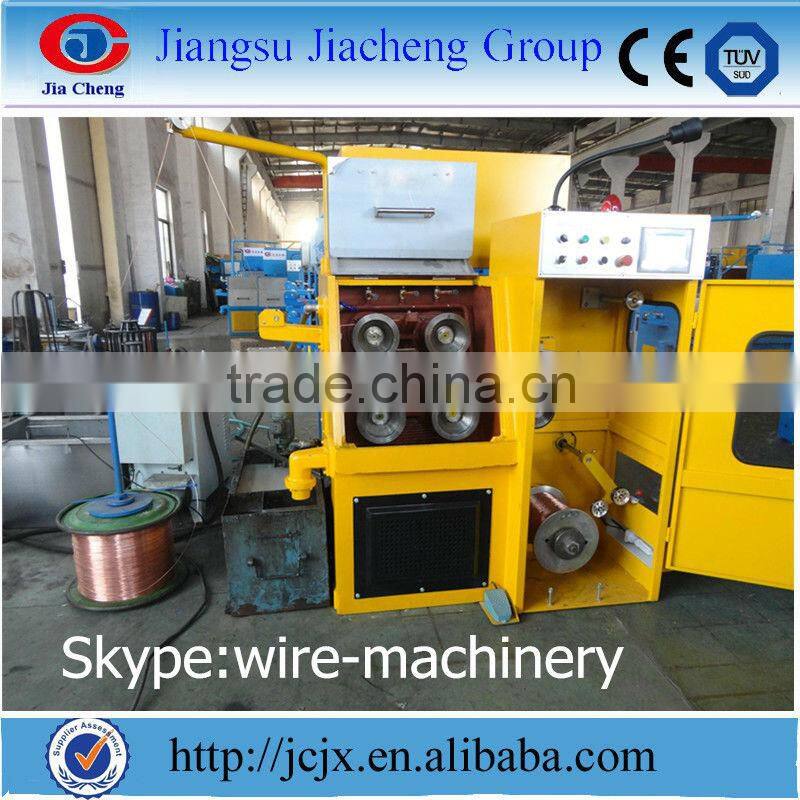

fine al-mg alloy wire drawing machine is used for drawing fine Al-mg alloy wire from 0.6-1.2mm to 0.10-0.40mm.
2. Technical parameter:
Machine type | JCJX-28D Al-mg alloy wire drawing machine |
Control system | Traditional analog type |
Inverter control | Dual Inverter control |

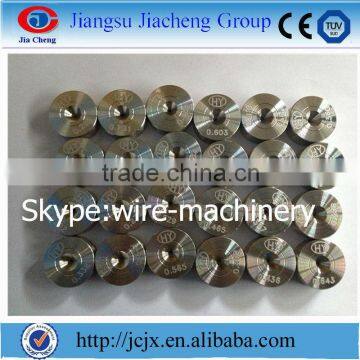

Drawing dies No./Max. | 28 |
Inlet diameter | Ø 0.60- Ø 1.20mm |
Outlet diameter | Ø 0.10- Ø 0.40mm |
Drawing line speed | 2500m/min |
Slip ratio of m/c | 13% |
Fix speed capstan slip ratio | 8% |
Frame | Ironed cast |

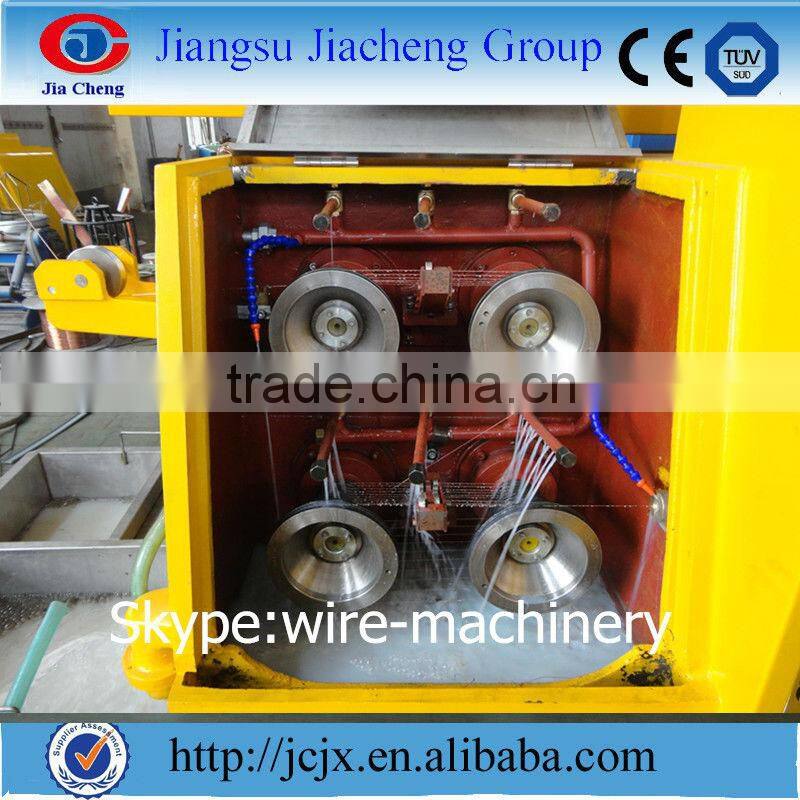

Capstan | Ceramic plasma capstan |
Main motor | 7.5KW |
Spooler motor | 2.2KW |

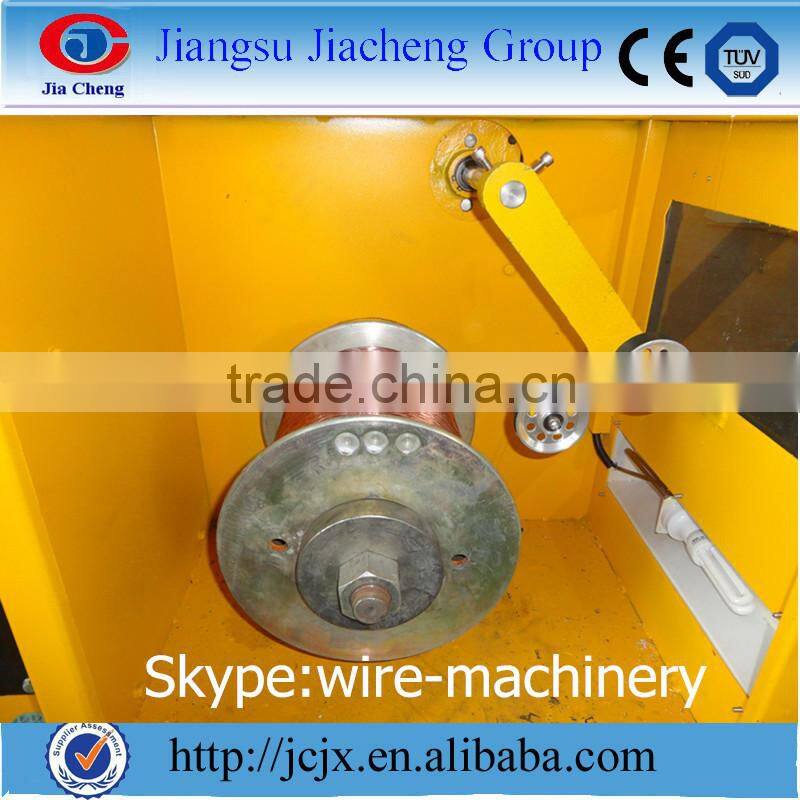

Spool bobbin size | Φ300mm or according to customers requirements |
Max .loading capacity | 50KG |
Lubrication type | Spray |
Brake | Magnetic brake |
Power source | 380V 50 HZ or others |
Machine dimension (mm) | 2000×1600×1900 |
Machine weight | 2300KG |
3. Advantage:
1). Double inverter can keep the outlet wire precisely tension and the slip ratio of wire will be reduced to the minimum.
2). This fine Al-mg alloy wire drawing machine’s body and other key components and parts are produced by our own factory, quality is reliable
3).High tension durably flat belt gain convenient replacement and low noise in operating.
4).This fine Al-mg alloy wire drawing machine use elcctronic components of international well-known manufactures,such as:Japan NSK bearing,Switzerland SKF belt,France Schneider electric and Shenzhen Inovance inverter.
5).we have gotten ISO 9001:2008,CE and BV certificate.
.After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical part.
attend the exhibition:
