JCJX-630 Cable Machinery For Steel Wire Taping Machine

  JCJX-Φ 630  Cable Machinery Steel wire taping Machine

1, our product

mian products

2,main specification

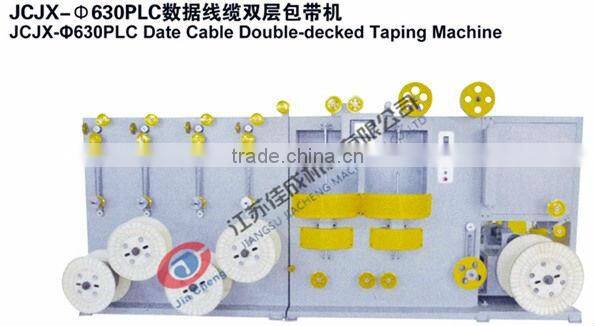

the type: ¢630 PLC date cable double decked taping machine

coe specification : it used to twisted wire double layer/single layer continuously center wrapping

core specification : AWG32-AWG20

Taping material : aliminum foil tape, mylar tape, cotton paper tape, transparent tape, mica tape, teflon tape

Max rotate speed : MAX.2000rpm/ MAX28m/min

Power: Adjust the speed by 1 HP motor driver, taping drum and directs motor linkage

Taping tension : taping tension keep constant from start to end.

Take-up tension : take-up tension keep constant from start to end.

Traversing type : shaft arange take-up , no damage in produce , the size could be estabished by yourself.

Pay-off type : Tension type motive zhong heavy , double-frequency speed, break protection function

Shaft of pay-off : 300-500 general shaft

Size of overall : 4470*1190*2025(L*W*H)

Machine weight : 1500KGS

 usage

copper wire or cable surface's taping, for example: copper tape, mica tape, aluminum foil, polyester tape, transparent tape, mylar tape and non-woven, etc.

3,our cetificate

4, our office ,factory and our team

we have 9 stroies building offive and mutilpul workshops and eight morden manufaturing plant.

5. After-sell service

5-1. Pre-sale training:

In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple proble

5-2. Guarantees

Since the shipment date, 12 month for mechanical part, and 6 month for electrical parts

7,about us

jiangsu jiacheng machinery CO.LTD was founded in 1990,owing a technical team formed by many experts and engineers,our company is concentrated on making the best products in china and many other countries. we are professional manufacturer in making all kinds of high speed wire drawing machine,rigid frame standing machine,annealing and tinning machine,bunching machine,extruder and so on.
