de-stoner

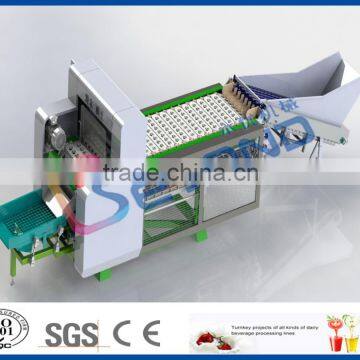

Destoner

Application

This machine is used to remove the seeds from the hard seed fruits in normal temperature, which is one of the key equipments in the stone fruits juice processing lines, such as the peach, apricot, etc.

This type destoner removes the hard stone from the fruits by two rollers (one has teeth on the surface, and the other is made of rubber) which are kept a certain gap in between;The gap between the two rollers is designed according to the feature and dimension of different fruits.

The fruits fall down to the rollers from the former procedure and then are pressed to the gap by a plate which moves up and down; the two rollers roll in opposite direction and most of the flesh is pressed to the gap of the teeth on the roller meanwhile the stones(seed of the fruit) are pressed on the stretchy roller; the flesh between the teeth on the roller will be then scratched out by a brush. The stone still with some flesh on it will be backward washed by the stone washer.

Features:

       1. Can separate the fruit flesh and the stone effectively;

        2. Higher efficiency and easy operation;

        3. The gap between the rollers can be regulated to get a best process efficiently;

        4. The rollers and the scraper can be replaced considering the status of the machine, and it is easy to do the replacement.

        5.The supporter adopts high quality SUS 304 stainless steel as material to have a good integral structure;

        6. The whole machine is made to be close construction, have high safety function.

Technical parameter

Condition: New

Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months

Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle

Product storage condition: room temperature; low temperature;

packaging details:     1.the equipment will be first wrapped by plastic film

                                       2.then we will make sainless steel supported with styrofoam on it under the equipments

                                       3.lastly the equipment will be put in wood crates

Delivery time:  30-60 days

 Engineer will be sent for the commissiong work and also be responsible for trainment of customer's workers.
