Home > Products > Pneumatic Valves > China Supplier Pneumatic Valve 4F Series 5 Port 2 Position Air Foot Valve Pedal Valve
China Supplier Pneumatic Valve 4F Series 5 Port 2 Position Air Foot Valve Pedal Valve
- shanghai ningbo
- T/T Credit Card
You May Like
-
High Quality New SC Series Pneumatic Cylinder With Valve
-
Hot Sale 4M Series 2 Position 5 Way Solenoid Valve Air Valve With SC Air Cylinder Group
-
High Quality Brass One-way Solenoid Valve,one Way Brass Valve
-
KA Series One Way Valve High Pressure
-
KA Series One Way Air Flow Valves,exhaust Valve
-
KA Series Low Pressure One Way Air Flow Valve,air Check Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Pneumatic | |
| Material | Alloy | Temperature of Media | Low Temperature | |
| Media | Other, Air | Port Size | 1/4 | |
| Place of Origin | Zhejiang, China | Model Number | 4F series | |
| Brand Name | Autoair | Application | General |
Product Description
China supplier pneumatic valve 4F series 5 port 2 position air foot valve pedal valve
our website:

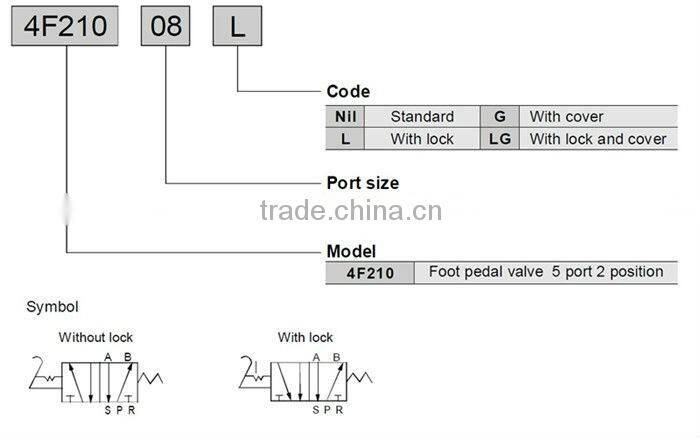

Ordering Code
Specifications

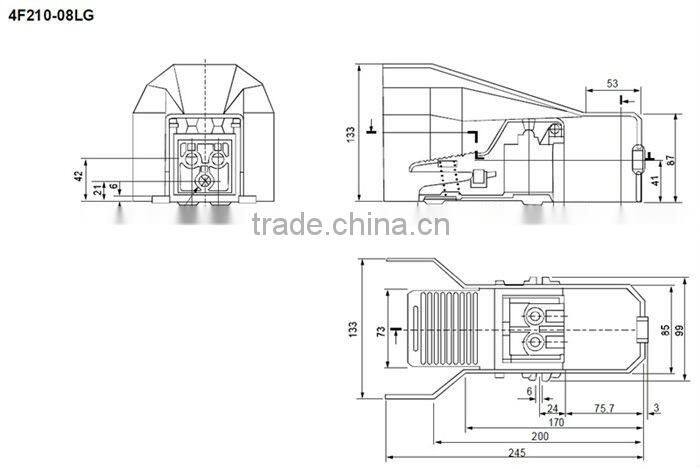

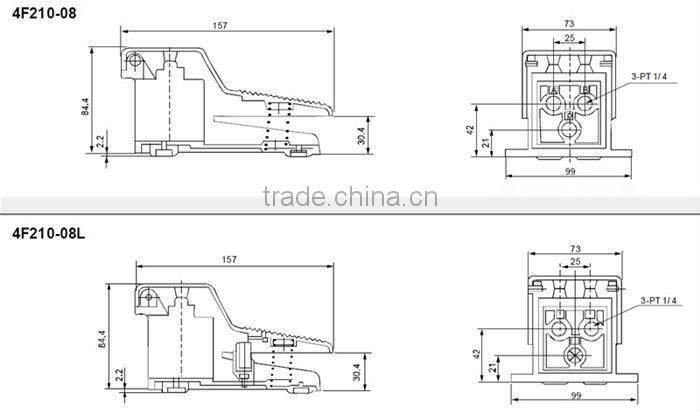

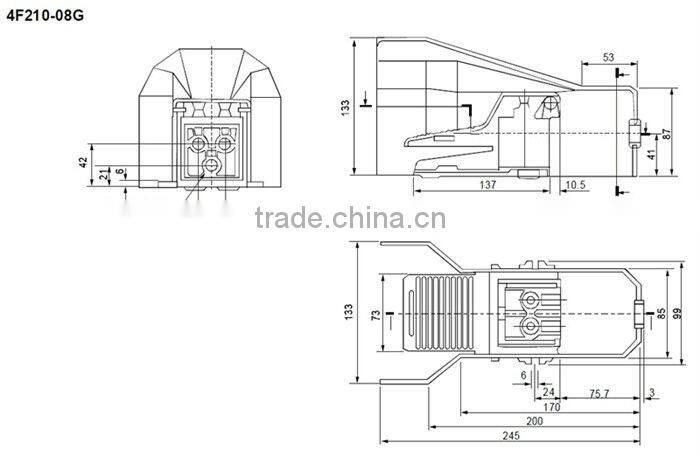

Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG |
Fluid | Air | |||
Type of actuation | 5 Port 2 Position | |||
Action | Direct | |||
Port size | In=Out=PT1/4 | |||
Operating pressure Range | 0~0.8Mpa | |||
Ambient and fluid temperature | -5~60 | |||
Lubrication | No required | |||
Work Shop
Trade terms:
1,Payment: T/T,LC, 30% deposits, before the ship to pay the balance end.
2,Delivery time:5-30days
3,Freight are quoted under your requests.
4,Shipping Port< NINGBO, SHANGHAI, China(Mainland).
5,Discounts are offered depend on quantities
