Home > Products > Pneumatic Valves > 2W Series 2 Position 2 Way Direct Drive Type Water Fountain Valve
2W Series 2 Position 2 Way Direct Drive Type Water Fountain Valve
- shanghai ningbo
 - T/T Credit Card

You May Like
-


5404 Series High Pressure High Temperature Water Heater Solenoid Valve
 -


2016 New 2L Series Water Latching Solenoid Valve in China
 -


2S Series Water Inlet Latching Solenoid Valve
 -


2W Water Fountain Valve ,water Heater Solenoid Valve
 -


2W Series Water Filter Diverter Valve,water Flow Control Valve
 -


2W Underwater Pneumatic Valves ,universal Solenoid Valves

Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Material | Brass | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | G3/8" G1/2" G3/4" G1" G11/4 " G11/2 " G2" | |
| Place of Origin | Zhejiang, China | Model Number | 2w Series | |
| Brand Name | Autoair | Application | General |
Product Description
2W Series 2 position 2 way Direct Drive Type water fountain valve
our website:

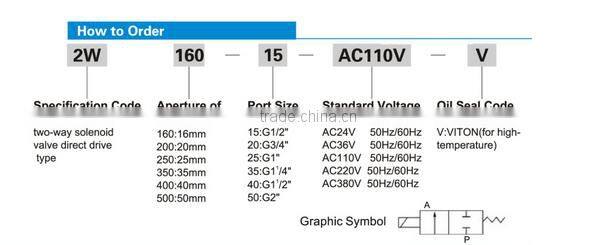

Ordering Code

Specifications
Model  | 2W160-10  | 2W160-15  | 2W200-20  | 2W250-25  | 2W350-35  | 2W400-40  | 2W500-50  |
Working Medium  | Air,Water,Oil,Gas  | ||||||
Motion Pattern  | Direct Drive Type  | ||||||
Type  | Normal Close Type  | ||||||
Aperture of Flow Rate  | 16  | 20  | 28  | 35  | 40  | 50  | |
CV Value  | 4.8  | 7.6  | 12  | 24  | 29  | 48  | |
Joint Pipe Bore  | G3/8"  | G1/2"  | G3/4"  | G1"  | G11/4"  | G11/2"  | G2"  |
Operation Fluid Viscosity  | 20CST Below  | ||||||
Working-pressure  | Air:0~0.7Mpa; Water,Oil:0~0.5Mpa  | ||||||
Max Pressure Resistance  | 1.0MPa  | ||||||
Operating Temperture  | -5~80°C  | ||||||
Voltage Range  | -10%~+10%  | ||||||
Material of Body  | Brass  | ||||||
Material of Oil Seal  | NBR,EPDM or VITON  | ||||||

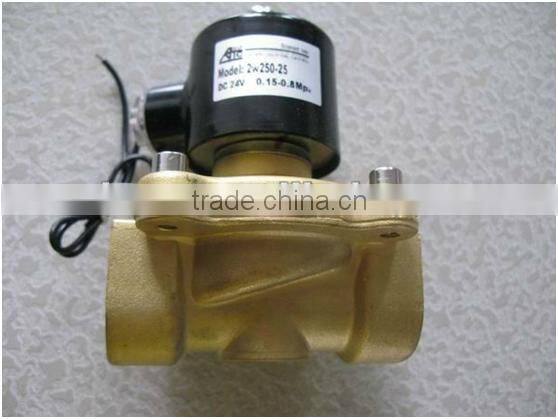

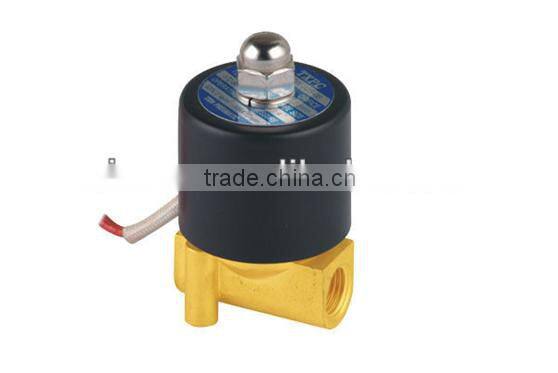

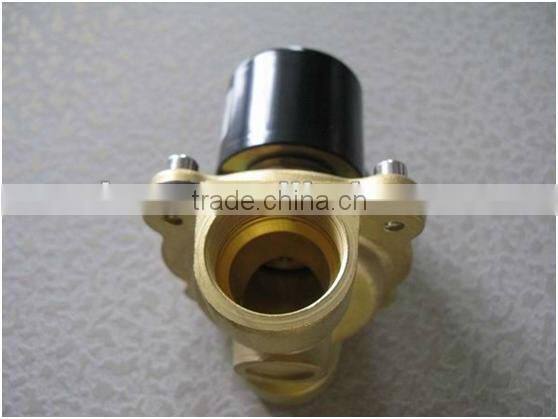

Product Photo
Work Shop
Trade terms:
1,Payment: T/T,LC, 30% deposits, before the ship to pay the balance end.
2,Delivery time:5-30days
3,Freight are quoted under your requests.
4,Shipping Port< NINGBO, SHANGHAI, China(Mainland).
5,Discounts are offered depend on quantities
Our service:
1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lightings we can help your to design and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protect your sales area, ideas of design and all your private information.
1.Could i put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer
2.Could i buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition.
3.If i have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
4.What's your main product?
>Pneumatic Cylinder,Pneumatic Fittings,Pneumatic Cylinder Tube,Pneumatic Filters,Throttle,Check Valve,Pneumatic Solenoid etc.
Thanks for your reading. If any product meets your need, Welcome to send us an email. We are sure your any information can be attention without any delay.
