CJ19-63 switching capacitor contactor

FOB Price

USD $15 - $18 / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Ningbo/Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BIGM
Model Number	CJ19-63	Electricity Type	AC
Number of Pole	3	Phase	3
Main Circuit Rating Voltage	Other, AC220V AC380V	Main Circuit Rating Current	Other, 95A

Product Description

Specifications

1.Copper or Silver contact
2.Special for power factor collection
3.AC220V AC380V

1.Specification

CJ19 series changeover capacitor contactor is mainly applicable to a power line of AC 50Hzor 60Hz, rated working voltage up to 380V. It is used to put a low voltage parallel connectedcapacitor in operation or switch it off in a low voltage reactive power compensation device. Thecontactor is equipped with a surge suppressor, which can effectively reduce the surge currentpassing through the capacitor at weitching on and suppress the over-voltage at switching off.The product is in conformity with the standards IEC947-4-1.

The contactor is suitable for using in the circuits up to voltage 380V AC 50Hz for putting the low voltage reactive power compensation device or cutting low voltage shunted capacitor. The contactor is supplied with the suppressing in rush current shock to capacitor while closing and suppressing over-voltage while breaking.
HS Code: 85362000
Trademark: CNC, OEM
Model: CJ19(CJ16)
Standard: IEC 60947-4, GB14048-4
Specification:
Rated voltage: 380V
Rated current: 25,32,43,63A

LC1-D AC contactors, LC1-F AC contactors, LC1-DN AC contactors, LP1-D DC Contactors, CJ16(19) AC contactors, 3TB AC contactor, 3TH AC contactors, DSF(3TF) AC Contactors, ACK Air Conditioning AC Contactors, LA1-D, LA2-D Contact Blocks

Model		CJ19-25	CJ19-32	CJ19-43	CJ19-63	CJ19-95
Electrical lfie(×10³)		100	100	100	100	100
Rated current le(380V)A		17	23	29	43	63
Power ofcontrolled capacitor	220/230V	6	9	10	15	22
Power ofcontrolled capacitor	380/400V	12	18	20	30	40
Rated insulation voltage Ui(V)		500
Rated operational voltage Ue(V)		380
Restrained surge capacity		20le
Operation range		Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us
Coil power(VA)	Start-up	70	110	110	200	200
Coil power(VA)	Holding	8	11	11	20	20
Control capacity of auxiliary contact		AC-15 360VA; DC-13 33W
Weight(Kg)		0.44	0.63	0.64	1.4	1.5

Outline and Mounting Dimension

Type	Amax	Bmax	Cmax	Dmax	E	F	Note
CJ19-25	80	47	124	76	34/35	50/60	Screw mount/35mm rail mount
CJ19-32	90	58	134	86	40	48
CJ19-43	90	58	136	86	40	48
CJ19-63	132	79	150
CJ19-95	135	87	158

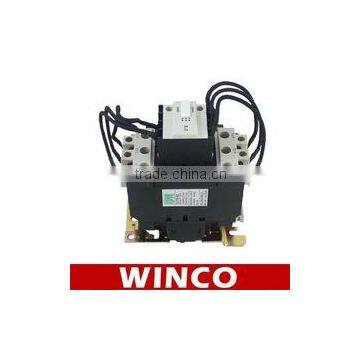

2.Product photo
