Home > Products > Contactor & Starter > AC Magnetic Contactor CJ20-63
AC Magnetic Contactor CJ20-63
US$ 2 - 10
/ Piece
100 Pieces(Min. Order)
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BIGM | |
| Model Number | CJ20-63 | Electricity Type | AC | |
| Number of Pole | 3 | Phase | 3 | |
| Main Circuit Rating Voltage | Other, up to 660V | Main Circuit Rating Current | Other, up to 630A |
Product Description
Specifications
1.Your Comprehensive Source for Electrical Equipments2.Rated voltage: up to 660V
3.Rated curretn: up to 630A
1.Specification
| Type | Insulation voltage (V) | Rated operating voltageUe (V) | Conventional thermal currentIth (A) | Rated operating current (AC-3)(A) | Rated control power (AC-3)(kw) | Rated frequency of operation (AC-3)(?/h) | Coordinate and cooperated of SCPD | Motion characteristic | Operating voltage range of coll(VA/W) | |
| Start | Atracting | |||||||||
| CJ20-10 | 690 | 220 | 10 | 10 | 2.2 | 1200 | NT00-20/660 | Atracting voltage range 0.85~1.11Us Release voltage range 0.2~ 0.75Us | 65/47.6 | 8.3/2.5 |
| 380 | 10 | 4 | 1200 | |||||||
| 660 | 5.2 | 4 | 600 | |||||||
| CJ20-16 | 220 | 16 | 16 | 4.5 | 1200 | NT00-32/660 | 65/47.8 | 8.5/2.6 | ||
| 380 | 16 | 7.5 | 1200 | |||||||
| 660 | 13 | 11 | 600 | |||||||
| CJ20-25 | 220 | 32 | 25 | 5.5 | 1200 | NT00-50/660 | 93.1/60 | 13.9/41 | ||
| 380 | 25 | 11 | 1200 | |||||||
| 660 | 14.5 | 13 | 600 | |||||||
| CJ20-40 | 220 | 55 | 40 | 11 | 1200 | NT00-80/660 | 175/82.3 | 19/5.7 | ||
| 380 | 40 | 22 | 1200 | |||||||
| 660 | 25 | 22 | 600 | |||||||
| CJ20-63 | 220 | 80 | 63 | 18 | 1200 | NT1-160/660 | Atracting voltage range 0.8~ 1.1Us Release voltage range 0.2~ 0.7Us | 480/153 | 57/16.5 | |
| 380 | 63 | 30 | 1200 | |||||||
| 660 | 40 | 35 | 600 | |||||||
| CJ20-100 | 220 | 125 | 100 | 28 | 1200 | NT1-250/660 | 570/175 | 61/21.5 | ||
| 380 | 100 | 50 | 1200 | |||||||
| 660 | 63 | 50 | 600 | |||||||
| CJ20-160 | 220 | 200 | 160 | 48 | 1200 | NT2-315/660 | Atracting voltage range 0.8~ 1.1Us Release voltage range 0.2~ 0.7Us | 855/32 | 85.5/34 | |
| 380 | 160 | 85 | 1200 | |||||||
| 660 | 100 | 85 | 600 | |||||||
| CJ20-160/11 | 1140 | 1140 | 200 | 80 | 85 | 300 | ||||
| CJ20-250 | 690 | 220 | 315 | 250 | 80 | 600 | NT2-400/660 | Atracting voltage range 0.85~ 1.1Us Release voltage range0.2~ 0.75Us | 570/175 | 152/65 |
| 380 | 250 | 132 | 600 | |||||||
| CJ20-250/06 | 660 | 200 | 190 | 300 | ||||||
| CJ20-400 | 220 | 400 | 400 | 115 | 600 | NT2-500/660 | 3578/790 | 250/118 | ||
| 380 | 400 | 200 | 600 | |||||||
| CJ20-400/06 | 660 | 250 | 220 | 300 | ||||||
| CJ20-630 | 220 | 630 | 630 | 175 | 600 | NT3-630/660 | 3578/790 | 250/118 | ||
| 380 | 630 | 300 | 600 | |||||||
| CJ20-630/06 | 660 | 400 | 400 | 350 | 300 | |||||
| CJ20-630/11 | 1140 | 1140 | 400 | 400 | 120 | |||||
| Type | A | B | C | a | b | O | F | L |
| CJ20-10 | 44.5 | 67.5 | 107 | 35 | 55 | 5 | 10 | 8 |
| CJ20-16 | 44.5 | 73 | 116.5 | 35 | 60 | 5 | 10 | 8 |
| CJ20-25 | 52.5 | 90.5 | 122 | 40 | 80 | 5 | 10 | 7.5 |
| CJ20-40 | 87 | 112.5 | 125 | 70 | 80 | 5 | 30 | 15.5 |
| CJ20-63 | 116 | 142 | 146 | 100 | 90 | 5.8 | 60 | 10 |
| CJ20-100 | 122 | 147 | 154 | 108 | 92 | 7 | 70 | 15 |
| CJ20-160 | 146 | 187 | 178 | 130 | 130 | 9 | 80 | 15 |
| CJ20-160/11 | 146 | 197 | 190 | 130 | 130 | 9 | 80 | 15 |
| CJ20-250 | 190 | 235 | 230 | 160 | 150 | 9 | 100 | 17 |
| CJ20-250/06 | 190 | 235 | 230 | 160 | 150 | 9 | 100 | 17 |
| CJ20-400 | 245 | 292 | 262 | 210 | 180 | 11 | 110 | 17 |
| CJ20-400/06 | 245 | 292 | 262 | 210 | 180 | 11 | 110 | 17 |
| CJ20-630 | 245 | 294 | 272 | 210 | 180 | 11 | 120 | 21 |
| CJ20-630/11 | 245 | 294 | 287 | 210 | 180 | 11 | 120 | 21 |

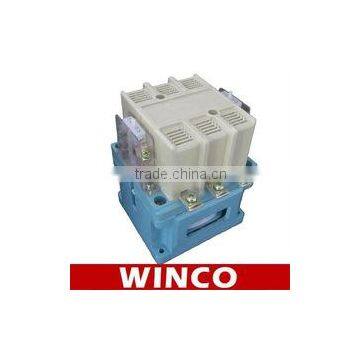

2.Product photo
