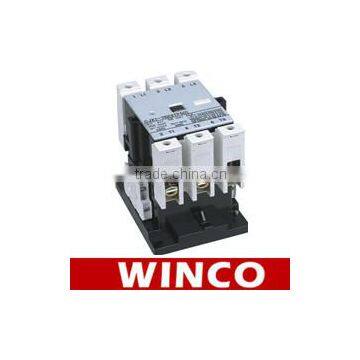

siemens contactor CJX1 3TF 3TB Series New Type CJX1-85
USD $2 - $150
/ Piece
100 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
You May Like
-
siemens contactor CJX1 3TF 3TB Series New Type CJX1-75
-
siemens contactor CJX1 3TF 3TB Series New Type CJX1-63
-
siemens contactor CJX1 3TF 3TB Series New Type CJX1-45
-
siemens contactor CJX1 3TF 3TB Series New Type CJX1-32
-
siemens contactor CJX1 3TF 3TB Series New Type CJX1-22
-
siemens contactor CJX1 3TF 3TB Series New Type CJX1-16
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BIGM | |
| Model Number | CJX1-85 | Electricity Type | AC | |
| Number of Pole | 3 | Phase | 3 | |
| Main Circuit Rating Voltage | Other, up to 660V | Main Circuit Rating Current | Other, up to 475A |
Product Description
Specifications
Simens type contactorCurrent: 9A~475A
AC 380V, 50/60Hz
Application
CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.
| Model | Carton size(cm) | CTN | Weight |
| PCS | (kg) | ||
| CJX1-09(3TB40) | 44*26*23 | 50 | 24 |
| CJX1-12(3TB41) | 44*26*23 | 50 | 24 |
| CJX1-16(3TB42) | 47*27*25 | 50 | 28 |
| CJX1-22(3TB43) | 49*27.5*26 | 50 | 28 |
| CJX1-32(3TB44) | 42*32*25 | 30 | 23 |
| CJX1-F09(3TF40) | 44*26*23 | 50 | 24 |
| CJX1-F12(3TF41) | 44*26*23 | 50 | 24 |
| CJX1-F16(3TF42) | 49*27.5*26 | 50 | 28 |
| CJX1-F22(3TF43) | 49*27.5*26 | 50 | 28 |
| CJX1-F32(3TF44/45) | 43*23*24.5 | 20 | 21 |
| CJX1-45(3TF46) | 48*33.5*34.5 | 16 | 25 |
| CJX1-63(3TF47) | 48*33.5*34.5 | 16 | 25 |
| CJX1-75(3TF48) | 39*35*19 | 6 | 16 |
| CJX1-85(3TF49) | 39*35*19 | 6 | 16 |
| CJX1-110(3TF50) | 50.5*40.5*20.5 | 6 | 23 |
| CJX1-140(3TF51) | 50.5*40.5*20.5 | 6 | 23 |
| CJX1-170(3TF52) | 45*34.5*24 | 4 | 27 |
| CJX1-205(3TF53) | 45*34.5*24 | 4 | 27 |
| CJX1-250(3TF54) | 41*24.5*25 | 2 | 16 |
| CJX1-300(3TF55) | 41*24.5*25 | 2 | 16 |
| CJX1-400(3TF56) | 42.5*29.5*32.5 | 2 | 23 |
| CJX1-475(3TF57) | 42.5*29.5*32.5 | 2 | 24 |
Specification
| Type | CJX1-9 CJX1-12 | CJX1-16 CJX1-22 | CJX1-32 | CJX1-45 CJX1-63 | CJX1-75 CJX1-85 | CJX1-110 CJX1-140 | CJX1-170 CJX1-205 | CJX1-250 CJX1-300 | CJX1-400 CJX1-475 | |
| Mechanicalendurance(×106) | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Conventionalthermal current(A) | 20 | 30 | 45 | 80 | 100 | 160 | 210 | 300 | 400/550 | |
| Rated insulationvoltage(V) | 660 | 660 | 660 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated(380V)operatingcurrent(A) | AC-3 | 9/12 | 16/22 | 32 | 45/63 | 75/85 | 110/140 | 170/205 | 250/300 | 400/475 |
| AC-4 | 3.3/4.3 | 7.7/8.5 | 15.6 | 24/28 | 34/42 | 54/68 | 75/96 | 110/125 | 150 | |
| Power ofcontrollablemotor(KW)AC-3 | 380V | 4/5.5 | 7.5/11 | 15 | 22/30 | 37/45 | 55/75 | 90/110 | 132/160 | 200/250 |
| 660V | 5.5/7.5 | 11 | 23 | 39/55 | 67 | 100 | 156 | 235 | 375 | |
| Power ofcontrollablemotor(KW)AC-4 | 380V | 1.4/1.9 | 3.5/4 | 7.5 | 12/14 | 17/21 | 27/35 | 38/50 | 58/66 | 81 |
| 660V | 2.4/3.3 | 6/6.6 | 13 | 20.8/24 | 29.5/36 | 46.9/60 | 66/86 | 100/114 | 140 | |
| Frequencyof operation(l/h) | AC3 | 1000 | 750 | 750 | 1200/1000 | 1000/850 | 1000/750 | 700/500 | 700/500 | 500/420 |
| AC4 | 250 | 250 | 250 | 400/300 | 300/250 | 300/200 | 200/130 | 200/130 | 150 | |
| Electricalendurance(×106) | AC3 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| AC4 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| Operating voltagerange of coil | (0.8~1.1)Ue | |||||||||
| Powerconsump-tion of coil | Atracting(VA) | 10 | 10 | 12.1 | 17 | 32 | 39 | 58 | 84 | 115 |
| Starting(VA) | 68 | 69 | 101 | 183 | 330 | 550 | 910 | 1430 | 2450 | |
| Rated insulationvoltage of auxitiarycontacts(V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | |
| Conventionalthermal current ofauxitiary contacts(A) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Ratedoperatingcurrent ofauxitiarycontacts(A) | AC15380/220 | 6/10 | 6/10 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 | 4/6 |
| DC13220V | 0.45 | 0.45 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | 0.48 | |
| Ratedvoltage ofthe controlcoil(V) | 50Hz | 24,36,48,110,127,220,380,etc | ||||||||
| 60Hz | 24,110,220,440,etc. | |||||||||
Outline and Mounting Dimension | Type | A max | B max | C max | a | b |
| CJX1-9,12 | 45 | 78.5 | 104(90) | 35+0.31 | 60+0.37 |
| CJX1-16,22 | 46 | 85 | 114 | 35+0.31 | 75+0.37 |
| CJX1-32 | 74 | 85 | 108 | 50+0.31 | 75+0.37 |
| Type | A max | B max | C max | a | b | φ |
| CJX1-45,63 | 91(114) | 120 | 124 | 70+0.6 | 100+0.2 | 4.8 |
| CJX1-75,85 | 102(125) | 135 | 142 | 80+0.6 | 100+0.2 | 5.5 |
| CJX1-110,140 | 122(145) | 156 | 154 | 100+0.2 | 130+0.8 | 6.5 |
| CJX1-170,205 | 140(163) | 185 | 190 | 100+0.2 | 160+0.8 | 7 |
| CJX1-250,300 | 150(173) | 205 | 200 | 120+0.2 | 180+0.8 | 9 |
| CJX1-400,475 | 165(188) | 205 | 225 | 130+0.8 | 180+0.8 | 9 |
