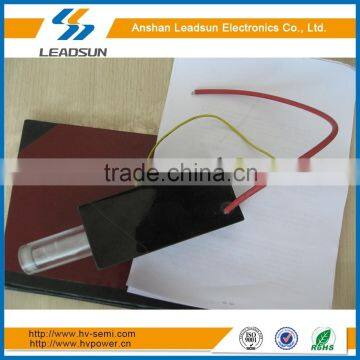

Hot Selling HV multiplier MV18-2.8KV-50KV/0.5mA voltage multiplying assembly
- Dalian
- T/T Credit Card
You May Like
-
High Quality HV multiplier MV18-2.3KV-40KV/2mA high voltage multiplier
-
high voltage modular MV18-2.3KV-40KV/1mA voltage multiplier
-
HV modular MV18-2.3KV-40KV/0.5mA voltage multiplying assembly
-
Hot sale MV18-2.3KV-40KV/0.2mA HV multiplier high voltage modular
-
New Products 80KV/0.1mA 20KHZ Max working frequency high voltage modular
-
High Quality MV24-12VAC-80KV/0.1mA high voltage multiplier
Product Details
D/C | 20130105 | Package | epoxy resin encapsulated | |
Model Number | 140x60x60 | Type | Voltage Regulator | |
Brand Name | Leadsun | Place of Origin | Liaoning, China |
Product Description
Product Description | |
Hot Selling HV multiplier MV18-2.8KV-50KV/0.5mA voltage multiplying assembly :
Type | Steps of multiplication | Max input peak voltage | Output voltage | Max output current | Max working frequency | Dimension | High voltage output mode |
N | KV | KV | mA | KHZ | L×B×H mm | ||
MV24-12VAC-80KV/0.1mA | 12 | 12v | 80 | 0.1 | 20 | Φ30×140 | High voltage line |
MV18-2.3KV-40KV/0.2mA | 9 | 2.3 | 40 | 0.2 | 40 | 140 ×60 ×60 | Screw |
MV18-2.3KV-40KV/0.5mA | 9 | 2.3 | 40 | 0.5 | 40 | 140 ×60 ×60 | Screw |
MV18-2.3KV-40KV/1mA | 9 | 2.3 | 40 | 1.0 | 40 | 140 ×60 ×60 | Screw |
MV18-2.3KV-40KV/2mA | 9 | 2.3 | 40 | 2.0 | 40 | 140 ×60 ×60 | Screw |
MV18-2.8KV-50KV/0.5mA | 9 | 2.8 | 50 | 0.5 | 40 | 140 ×60 ×60 | Screw |
MV18-2.8KV-50KV/1mA | 9 | 2.8 | 50 | 1.0 | 40 | 140 ×60 ×60 | Screw |
MV18-2.8KV-50KV/2mA | 9 | 2.8 | 50 | 2.0 | 40 | 140 ×60 ×60 | Screw |
MV24-4.2KV-100KV/0.1mA | 12 | 4.2 | 100 | 0.1 | 40 | 200 ×60 ×60 | Screw |
MV24-4.2KV-100KV/0.5mA | 12 | 4.2 | 100 | 0.5 | 40 | 200 ×60 ×60 | Screw |
MV28-4KV-100KV/0.1mA | 14 | 4.0 | 100 | 0.1 | 10-50 | Φ36×430 | Screw |
(If you have any questions, please contact us)
Packing & Shipping | |
Packing: one in wooden case, 800*600*400mm
