ISO SGS JOWELL &Primary Panel g4 Pleated Media
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Efficiency | 90%-95% Arrestance | |
| Construction | Panel Filter | Filtration Grade | Pre Filter | |
| Medium Material | Other, Polyester synthetic fiber | Porosity | 5um | |
| Place of Origin | Guangdong, China | Brand Name | ZHUOWEI | |
| Model Number | G4-F5 | Dimension(L*W*H) | 595*595*46mm | |
| Weight | 1KG | Certification | ISO9001,ROHS,CE | |
| Warranty | 3 Months | After-sales Service Provided | Overseas third-party support available |
Product Description

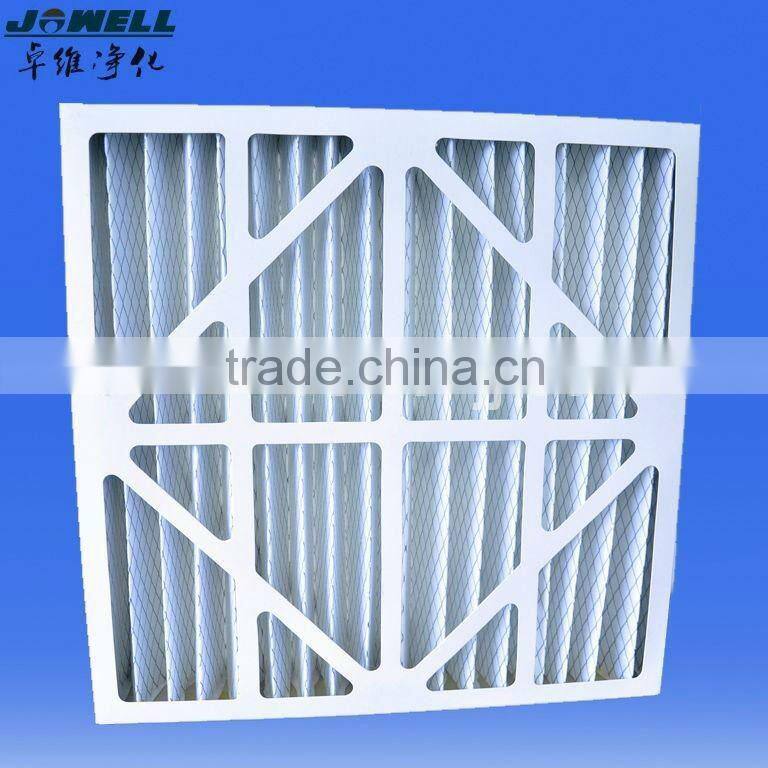

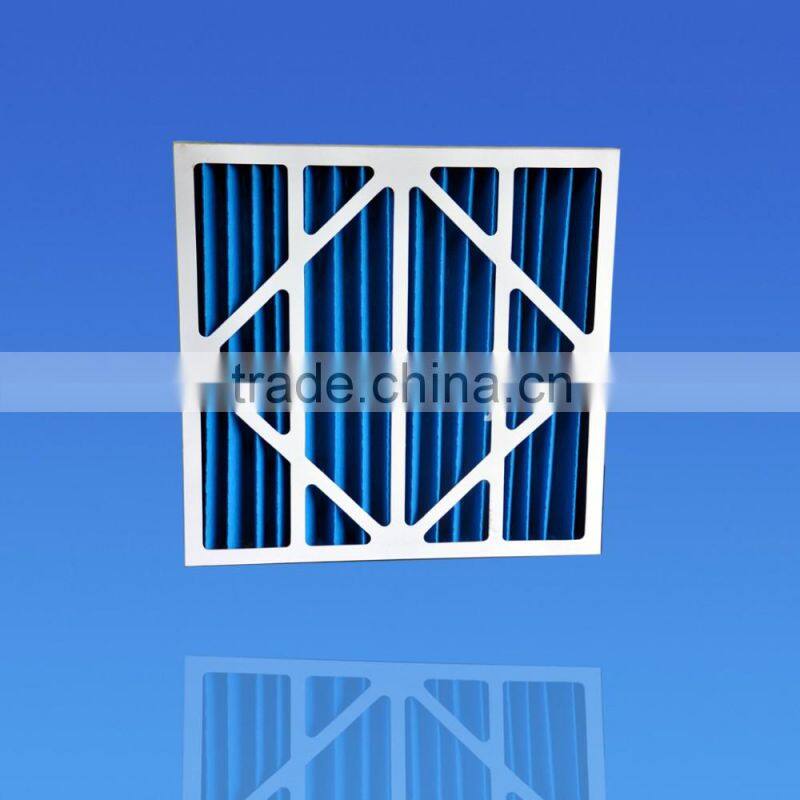

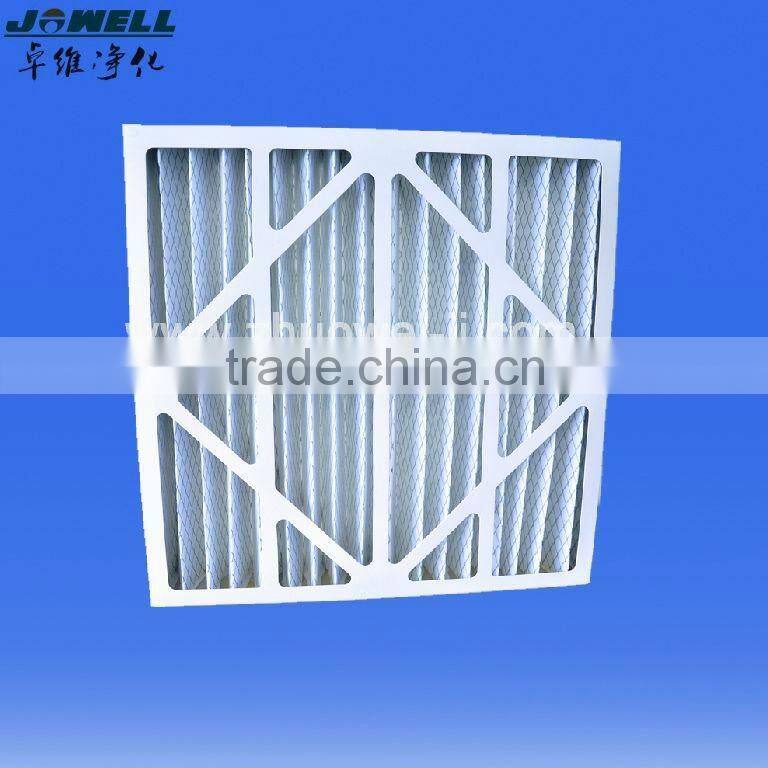

ISO SGS JOWELL &Primary Panel g4 pleated media
Features:
Demountable Metal Frame
Large AirFlow
Low pressure drop
Good mechanical strength
Easy to install
High dust holding capacity
Competitive pricing
Pleated air pre-filter techinical data :
Efficiency range from G3;G4;F5-F9
Depth availble in 2" and 4"
Frame: Aluminum &Galvanized
Powder Coated Rib or GI Rib.
Elements: Synthetic
Operating TemperatureStandard 93℃
Humidity:100%R/H
Efficiency range from G3;G4;F5-F9
Depth availble in 2" and 4"
Frame: Aluminum &Galvanized
Powder Coated Rib or GI Rib.
Elements: Synthetic
Operating TemperatureStandard 93℃
Humidity:100%R/H
Applications:
This type of metal frame pleat pre filter with polyester fiber is used as prefiltration filter in air condition and ventilation system to aviod accumulated dust contamation in the system and as prefiltration of large-scale air compressor. Protact the upgrade filter for too heavy duty, and reduce the maintance of the HEPA filter in air condition system.
Premeters:
Nominal size(Inch) | Physical size(mm) | Efficiency | Rated air flow | Initial resistance under different air flow(pa) | Recommended final resistance | ||
W×H×D | W×H×D | EN779 | (m3/h) | 70% | 100% | 120% | (pa) |
12×24×2 | 290×595×46 | G4 | 1700 | 85 | 130 | 175 | 250 |
24×24×2 | 595×595×46 | G4 | 3400 | 85 | 130 | 175 | 250 |
12×24×2 | 290×595×46 | F5 | 1700 | 100 | 140 | 205 | 250 |
24×24×2 | 595×595×46 | F5 | 3400 | 100 | 140 | 205 | 250 |
