Home > Products > V Bank Medium / HEPA Filter > JOWELL V-bank Cell Medium HEPA Compact Filter

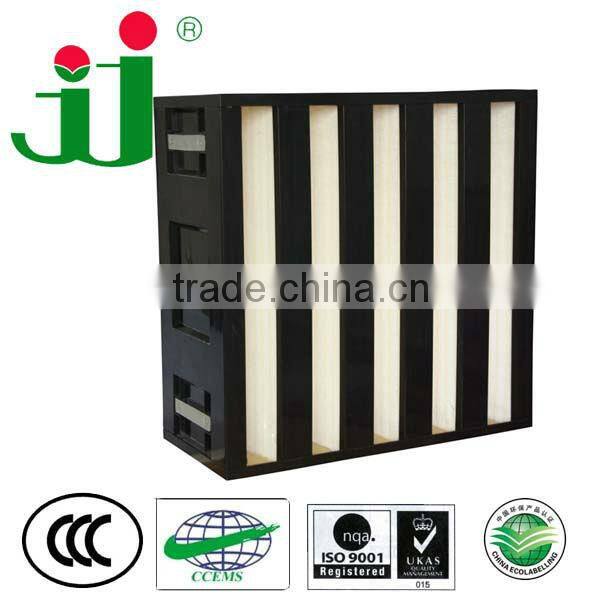

JOWELL V-bank Cell Medium HEPA Compact Filter
- 300 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
Zhuowei brand FV Combined type Sub-HEPA Air Filter
-
Industrial Fiber glass HV Combined HEPA Air filter for the terminal filtration system
-
Low resistance HV Combined HEPA Air filter for industrial vacuum cleaner
-
Industrial large air flow Fiber glass HV Combined HEPA Air filter
-
Low resistance pp media FV Combined Sub-HEPA Air Filter
-
Long service life and Large filtering area FV Combined Sub-HEPA Air Filter
Product Details
| Condition | New | Efficiency | 99%-99.99% | |
| Construction | Box Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.5um | |
| Place of Origin | Guangdong, China | Brand Name | JOWELL | |
| Model Number | HV, HV ( High Volume) | Dimension(L*W*H) | 595x595x292mm | |
| Weight | 12kgs | Certification | ISO9001, ISO14001 | |
| Warranty | Lifetime warranty | After-sales Service Provided | Overseas service center available |
Product Description
Plastic Frame HEPA Combind V Shape Filter H13 H14 EN779 air filter
Combined HEPA Filter Description:
Compact filters are used in hospitals, airports, museums and industrial applications where medium and high quality airflow is required. These filters are used as primary and/or main filters to prevent toxic gas, aerosol and general dust pollution. They are especially suited for for handling large airflow volumes and achieve long service life times due to their large dust storage capacity. By their production different materials are used like water resistant glass fiber filter paper pleated and mounted in V-form frame.
Combind HEPA Filter Features:
Large filtration area
Tested according to EN 1822
Extremely stable welded casing
High airflow
Long functional life
High dust holding capacity
Each filter includes a label noting tested efficiency,pressure drop,rated airflow.
Combind HEPA Filter Application:
For filtration in aerial engineering plants of all kinds:
Medical facilities
Pharmaceuticals
Semiconductor facilities
Food processing plants.
Prefiltration,e.g.for HEPA filters
Model | Dimensions (mm) W×H×D | Rated air flow M3/h | Initial resistance pa |
Efficiency EN779 | HEPA Filter Material | |||
Media | Separator | Sealant | Frame | |||||
FV | 595×595×295 | 3600 | ≤110 | 99.99% | Fiberglass | Thermosol | Polyurethane Rubber PU | Polypropylene ethylene |
295x595×295 | 1800 | ≤110 | ||||||
Model | Dimensions (mm) W×H×D | Rated air flow M3/h | Initial resistance pa | Efficiency EN 1822 | HEPA Filter Material | |||
Media | Separator | Sealant | Frame | |||||
HV | 595x595x295 | 3600 | ≤110 |
99.99%
| Fiberglass | Thermosol | Polyurethane Rubber PU | Galvanized steel or Aluminum optional |
295x595x295 | 1800 | ≤110 | ||||||
Why choose us
1.Factory direct sale,OEM,ODM avaliable, R&D department availiable.
2.High Production Capability, prompt delivery.
3.Self-produced frame, low costs, competitive price.
4.Strictly testing equipment, full-experienced technicians ,quality garanteed.
quality with good after-sale service.
WE CARE YOUR PACKAGE
Certification
Contact us
Dongguan ZHUOWEI Purification Technology Co.,Ltd
Sales :Susan ke
Tel: + 86-769-854-405-38 Ext. 814
Fax: +86-769-854-405-39
Cell: +86 150-9807-2722
Skype:Susan ke
Website:
Address: 23, Chuangli Rd, Shangsha, Changan Town,
Dongguan, GD 523850, P.R.C
"CLEAN AIR MATTERS TO US"
Welcome to visit our factory !
Hope cooperate with you in the near future !
