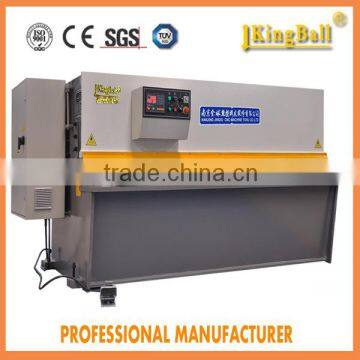

Cheap Price, Good Quality, ISO and CE Certificated QC12Y Metal Hydraulic Shearing Machine for 4-30mm plates

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

2.  Stepless control for the stroke; The gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety

3. The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.

1. BOSCH hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups.

2. Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board.

3. All seals use Japan NOK good quality and high performance

4. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly

1. Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

3. Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light

ITEMS

PARAMETER

UNIT

Model

QC12Y-4X2500

set

Cutting Thickness

4

mm

Cutting Width

2500

mm

Cutting Angle

1°30′

0

Backgauge Range

20-600

mm

Stroke Number

≥16

times/min

Main Motor

5.5

kw

Weight

3400

kg

Overall Dimension

3100X1500X1550

LXWXH in mm

E21 features

Shearing machine controller: E21

1. Backgauge control.

2. BUS mode control servo system.

3. Stroke length Limitation.

4. Double programmable digital output.

5. Program memory of up to 40 programs up to 25

6. One side positioning.

7. Retract function.

8. Mm/Inch.

9. Chinese/English.

DAC310 features

1. Backgauge control

2. Bright LCD display, 275x 48 pixels

3. Gap or Angle control

4. Stroke length limitation

5. Actual and programmed position visualisation

6. Stock counter

7. Up to 100 working steps programmable

8. Panel based housing

9. Servo, frequency inverter drive, two-speed AC motor control

DAC360 features

1. Panel based housing

2. Bright LCD screen

3. Backgauge control

4. Retract function

5. Cutting angle control

6. Cutting gap control

7. Stroke length limitation

8. Manual movement of axes

9. Force control
