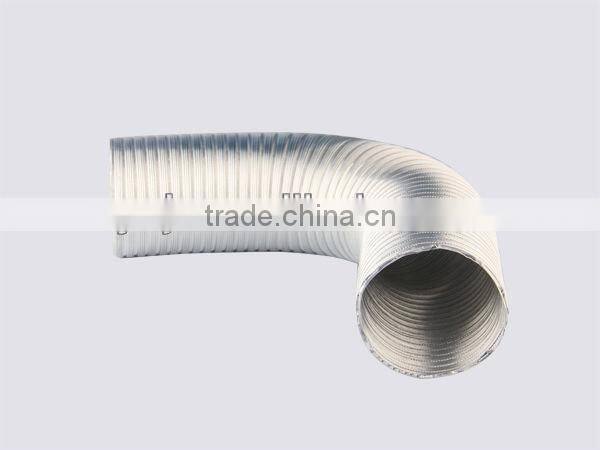

4 Inch Semi-rigid Aluminum Flexible Air Duct
- NINGBO
- T/T Credit Card
You May Like
-
5" Semi-rigid Flexible Aluminum Duct For Air Conditioning System
-
6" Semi-rigid Flexible Aluminum Air Duct
-
Flexible Aluminum Ventilation Pipe
-
Semi Rigid Air Conditioning Aluminum Flexible Duct
-
Free Sample Aluminum Foil Flexible Hot Air Conditioning Duct
-
High Quality Aluminum Foil Flexible Air Ducting
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Chuanyuan | |
| Model Number | CYAT01 | Type | Ventilation |
Product Description
1, Struction -soft aluminum foil
2, Normal thickness -0.08mm 0.10mm, 0.11mm . 0.12mm, 0.13mm,0.14mm
3, Available diameters- 50mm to 300mm
4, Temperature range -25°C to + 250°C
5, Operating presure -2000pa (max)
6, Air velocity -25m/s (max)
7, Standard length-1.5m , 3.0m , 4mm the max is 4m
8, Compression ratio- 1: 3
9, Fire resistance -non flammable.

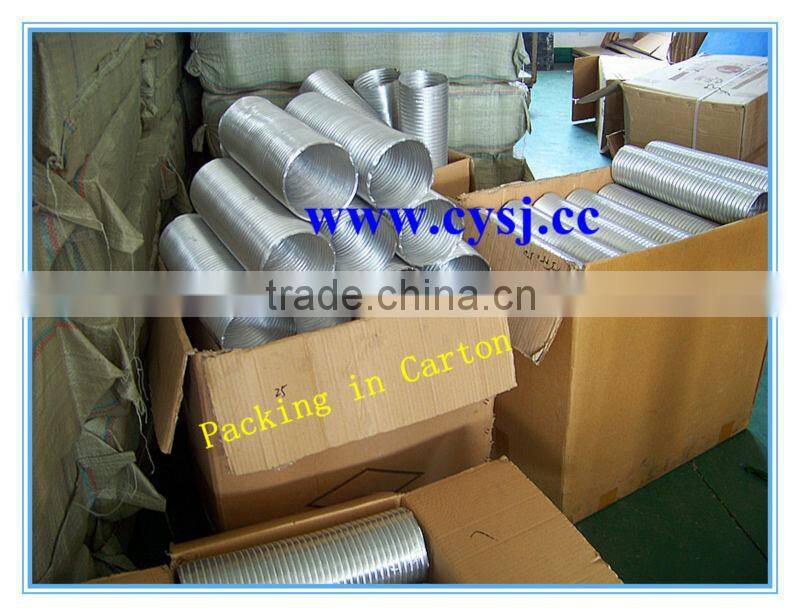

10, Packing in carton , special packing can be ordered.
11, Application-High elasticity and flexibility. Easily fitted to circular,oval or rectangular connectors. Released for no toxic or poisonous gases. low/medium pressure central HVAC system and ventilation ,cooling,exhaust and air conditioning heating system.
Diamater | Thickness mm | |
(Inch) | mm | |
2” | 50 | 0.08 |
3 | 75 | 0.08 |
4” | 100 | 0.10 |
5” | 125 | 0.10 |
6” | 150 | 0.10 |
8” | 200 | 0.11 |
10” | 250 | 0.11 |
12 | 300 | 0.11 |
