Home > Products > other cables > Bare Copper Outdoor Cat5e Cable, 4pair Outdoor Network Cable

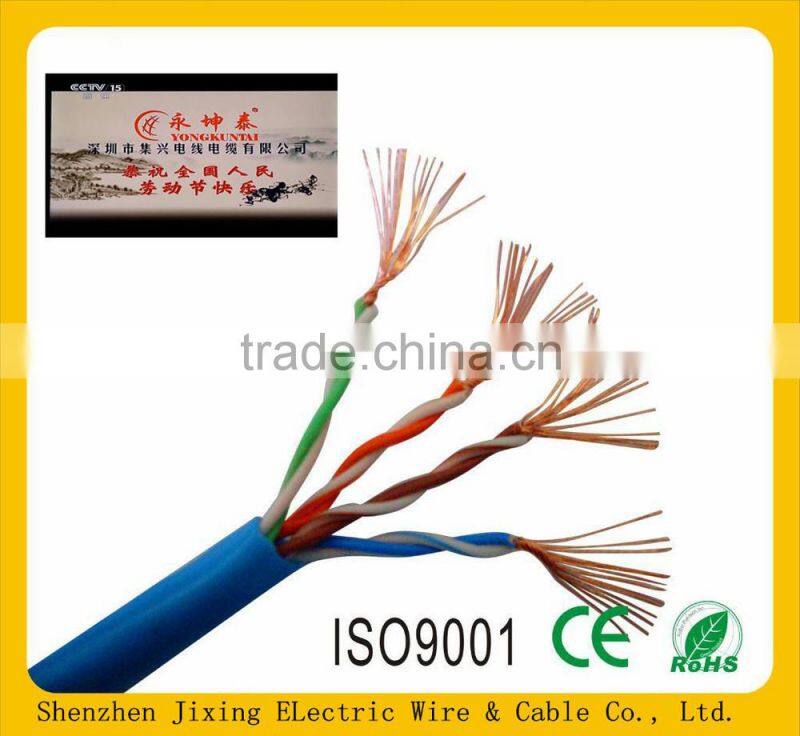

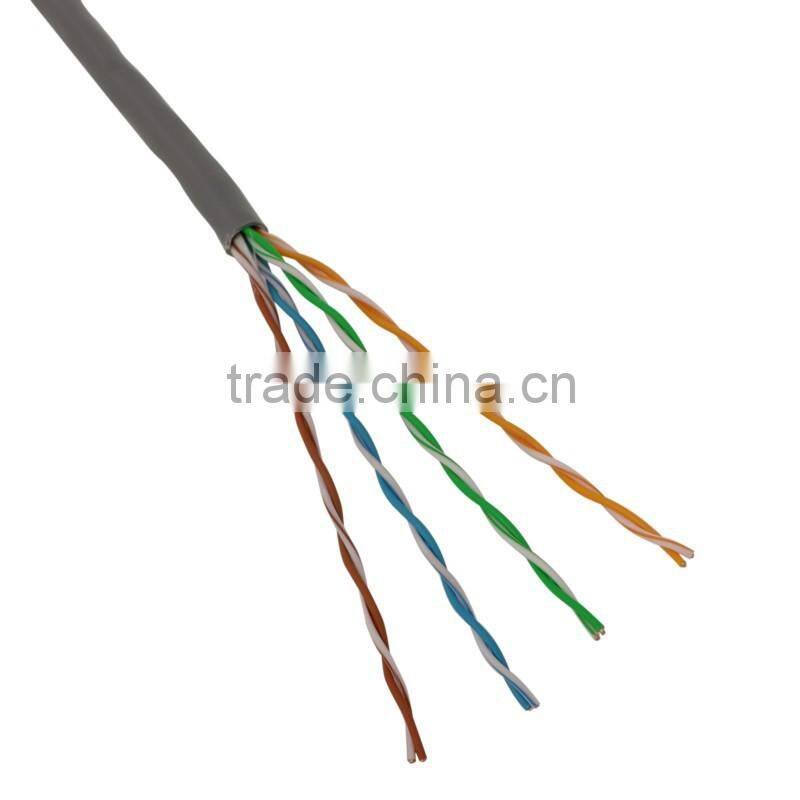

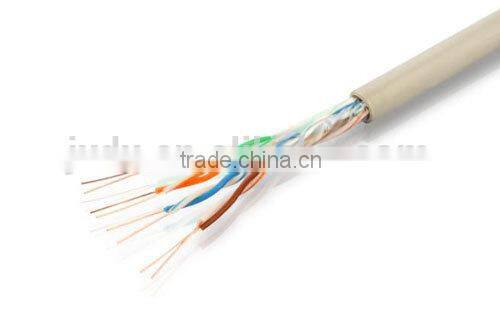

Bare Copper Outdoor Cat5e Cable, 4pair Outdoor Network Cable
US$ 15 - 30
/ Box
50 Boxes(Min. Order)
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CAT5e UTP Cable 305m Roll
-
Hot Selling 450/750V Single Core PVC Insulated Copper Rigid Cable
-
PVC Insulation Material and Insulated Type Electrical Wire
-
Heating Application and House Cable Insulated Type Electrical Wiring
-
Copper Conductor Material and Housing/building Using Application Cable
-
Copper Conductor Pvc Insulation Electric Wire
Product Details
| Place of Origin | Guangdong, China | Brand Name | YONGKUNTAI | |
| Model Number | Cat5 | Type | Cat 5 | |
| Number of Conductors | 8 |
Product Description
Specifications
CAT5e UTP Cable 305m Roll1.Factory price
2.Excellent transmit
3.T/T,L/C
4.ROHS/CE/ISO
Product Picture:

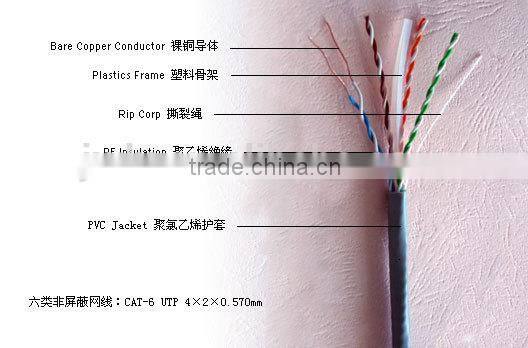

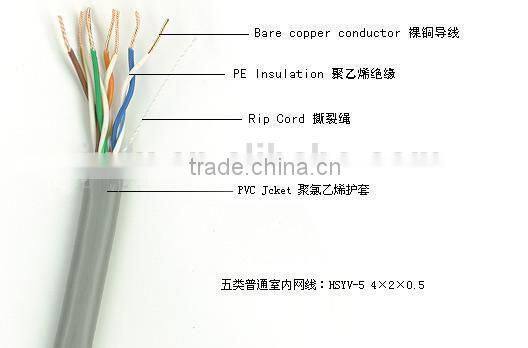

Product structure description:
| Model | UTP 24AWG CCA CAT5e CABLE |
| Standard | ANSI/EIA/TIA-568B or YD/T1019-2001 |
| Conductor Material | Solid/Stranded Copper,CCAM,CCA,CCA+CCS |
Conductor Diameter | 28AWG,26AWG,24AWG |
| Stranded: 7/0.12mm, 7/0.16mm, 7/0.2mm | |
| Num of Conductor | 2P, 4P, 8P, 10P, 25P,32P, 50P, 100P, 200 pair |
| Shield | UTP,FTP,STP,SFTP |
| Insulation Material | PE, HDPE |
| Insulation Diameter | 0.91±0.02mm |
| Core Identification | 568B(4 Pairs): White/Orange + Orange , White/Green + Green , White/Blue + Blue , White/Brown + Brown |
| Jacket Material | PVC, RoHS PVC, LSZH PVC |
| Jacket Color | as your requirements. |
| Diameter | 5.0±0.2mm |
| Rip Cord | Nylon Wire |
| Transmission Meter | 120M~160M |
| Minimum Bending Radius | Fixed: 4 x overall diameter Flexing: 6 x overall diameter |
| Working Temperature | 0-60°c |
| Print Words On Cable | HDL CABEL CAT5e 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 1180 EN501 01~305M , or clients' requests. |
| Construcation Draw | Pro |
Product Application:
Indoor installation, can be applied to broadband Ethernet, intelligent building or residential area of the integrated wiring system, local area network system, computer network distribution system, communication network system, test equipment and cable systems, security monitoring system, etc.
Goods Name | Packing | Sale Packing:Pull out gift box (mm) | Shipping Packing: Carton (mm) | Unit.CBM | QTY/Container | |||||
L | W | H | L | W | H | 20GP | 40HQ | |||
UTP CAT5E INDOOR | 305m(1000ft)/ Pull out git box | 34.5 | 19.5 | 34.5 | 36.5 | 35.8 | 41.5 | 0.055 | 1000box | 2500box |
FTP/SFTP CAT5E INDOOR | 39 | 20 | 39 | 40.5 | 41 | 42 | 0.071 | 750box | 1500box | |
UTP/FTP/SFTP CAT5E OUTDOOR | 305m/wooden spool | 32 | 22.5 | 32 | 35 | 29 | 67 | 0.061 | 910rell | 2200rell |
