Product Details
| Place of Origin | Guangdong, China | Brand Name | YongKunTai | |
| Model Number | Stranded Copper Wire 1.0mm | Type | Other, Insulated, Stranded Copper Wire 1.0mm | |
| Application | Other, House | Conductor Material | Other, Oxygen free copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description

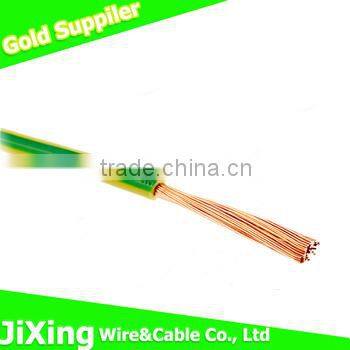

PVC Insulation Stranded Copper Wire 1.0mm
structure chart:
Model: Single Wire
Application:
H07V-R/H07V-U to BS6004 is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Conductor:
H07V-R: Class 2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360)
H07V-U: Class 1 solid plain copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation: PVC (Polyvinyl Chloride) Type TI1 to BS7655
Insulation Colour: Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey( Note: Insulation colors other than the above may be manufactured on customer request. )
Voltage Rating: 450/750V
Temperature Rating: 0°C to +70°C
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |
Our packing:
Our factory:
Workshop equipments:
Certifications:
Our customer:
Jixing cables:
*Kindly note that also we can make cables according to your requirements.
