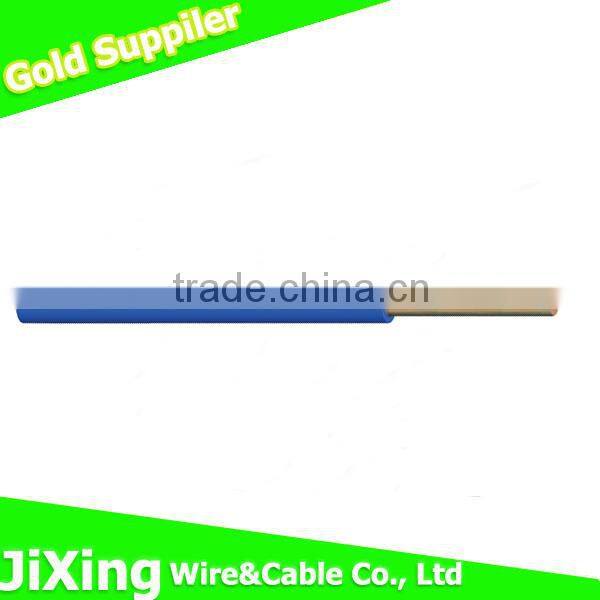

Single Core PE Insulated Hmwpe Cable

  single core PE insulated hmwpe cable

1.Product Description

Model: HMW-PE.

Specification:

Section-area of conductor:AWG:4/0,2/0,1/0,1,2,4,6,8,10,12,14

Product Structure: Conductor + Insulation.Oxygen-free copper conductors + PE Insulation.

Implementation of the standards:  HD 21.3 S3, VDE 0281-3, BS 6004

Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certification

Rated voltage:600V

Operating temperature: normal operating temperature does not exceed the maximum 70 ℃

Bending radius: For the Cable whose outer diameter (D) less than 25mm are not less than 4D; For the cable whose outer diameter (D) >= 25mm,the bending radius should not less than 6 D.

Color: yellow-green

Application:

A direct burial DC cable for use in cathodic protection applications such as anode lead wires, header cables, structure connections, test leads and more.  The product can also be used for submerged installations in water tanks, offshore structures and other similar applications.

The polyethylene insulation is durable, abrasion resistant and flexible but has temperature and chemical limitations.

This cable insulation color is usually black (standard). However, other custom colors are available depending the quantity purchased.

Standards

1. Conductor
   Stranded copper conductor conforms to ASTM Specification B-8.

2. Insulation
   Insulation is high molecular weight polyethylene conforming to ASTM D-1248, Type 1, Class A, Category 5, Grades E4 & E5. Tensile Strengths Jl, J3. Available with high density polyethylene (Types II, III, IV) Class B & C (all colors).

Construction

Annealed, uncoated, stranded copper conductor, HMW polyethylene black insulation. Surface or indent printed. Custom printing available.

Key technical parameter of different specifications and models:

2.Our factory:

company profile:

Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.

3.Our equipment:

4.Our electric cable and wire:

0.6/1KV PVC,XLPE insulated armored power cable

Environment-friendly LSZH(low smoke halogen free) cable

Flame retardant cable

Branching wire

aluminum cable

Welding cable

Internet Lan cable

control cable

THHN,THW etc UL America standard cable

CCA cable

We can also providing customizing service according to your requirement,your specificantions and sample.

5.Our Certifications:

6.Our customers:

7.Construction Case

Shenzhen Longgang Grand Canal Center Stadium
