H07V-U,H07V-R,H07V-K 2.5mm2 Copper Conductor PVC Insulated Electric Wire
- Shenzhen
- T/T
You May Like
-
450/750V HO7V-U Copper Conductor Cable PVC Insulated Wire
-
PVC Insulation H07V-U Electric Single Strand Copper Electrical Wire
-
PVC Insulation Stranded Copper Wire 1.0mm
-
Pvc Insulate bv 1.5mm2 16 Awg Solid Copper Electrical Wire Cable
-
PVC Insulation Stranded Copper Wire Pricing
-
PVC Insulation H07V-U Electric China Single Wire
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yongkuntai | |
| Model Number | BV(H07V-U) | Type | Insulated | |
| Application | Other, Housing | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description
450/750V HO7V-U Copper Conductor cable PVC insulated wire
PVC Insuated building wire :
Fire-resistant cable, This kind of product can realize operation in a certain period of time under the conditions of flame combustion,which can apply to the places with flammable, fire-fighting equipments.
Rated voltage U0/U:450/750V
Long-time working temperature should be lower than 70°C,the working temperature of type BV-105 should be lower than 105°C
The temperature of fixed wiring cable should be higher than 0°C,allowed bending radius:
When cable outer diameter (D)
When cable outer diameter (D)≥25m,the bending radius should be≥6D.
PVC insulared flexible wire:
Rated voltage U0/U:450/750V,300/500V,300/300V
The products are suitable for household electrical appliances, small electric power tools, AC rated voltage up to and including 450/750V, and below the small household electrical appliances, electric tools, instruments and apparatuses and lighting devices, which is used for connecting power line.
Long-time working temperature should be lower than 70°C,the working temperature of type RV-105 should be lower than 105°C
PVC Wire Type and General Specifications
Type | Rated Voltage | Application | Cores | Nominal cross-sectional areas | ||
| GB | IEC | HAR Code | ||||
BV BLV | 60227 IEC 01 JB/T 8734 | H07V-U/R | 450/750V | Single-core non-sheathed cable with rigid conductor for general purpose | 1 | 1.5-400 2.5-400 |
| RV | 60227 IEC 02 | H07V-K | 450/750V | Single-core non-sheathed cable with flexible conductor for general purpose | 1 | 1.5-240 |
| BV | 60227 IEC 05 JB/T 8734 | H05V-U H05V-R | 300/500V | Single-core non-sheathed cable with solid /stranded conductor for internal wiring for a conductor temperature of 70 °C | 1 | 0.5-400 |
| RV | 60227 IEC 02 | H05V-K | 300/500V | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70 °C | 1 | 0.5-240 |
BVV BLVV
| 60227 IEC 10 | / | 300/500V | Light Polyvinyl chloride sheathed Round cable | 2-5 1 | 1.5-35 0.75-185 |
BVVB | JB/T 8734 | / | 300/500V | Light Polyvinyl chloride sheathed Flat cable | 2,3 | 0.75-6 |
| RVV | 60227 IEC 52 | H03VV-F H03VVH2-F | 300/300V | Light Polyvinyl chloride sheathed cord | 2-16(Round) 2(Flat) | 0.5-6 |
| RVV | 60227 IEC 53 | H05VV-F |
300/500V | Ordinary Polyvinyl chloride sheathed cord | 2-16(Round) | 0.5-6 |
| H05VVH2-F | 2 (Flat) | |||||
| JB/T 8734 | / | 300/500V | Ordinary Polyvinyl chloride sheathed cord | 2 (Flat) | 1.0-4 | |
| Multi cores | / | |||||
| RVVP | JB/T 8734 | / | 300/300V | Polyvinyl chloride insulated and sheathed cord with screen | 2-24 | 0.5-6 |

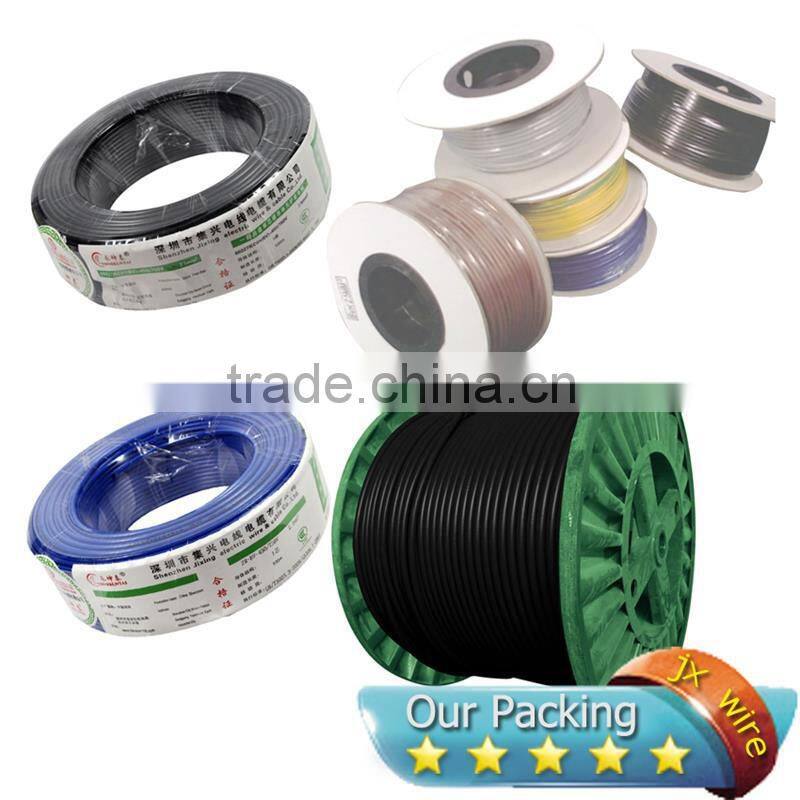

1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other
length could be supplied if required.
