PVC Insulated Copper Conductor Single Core BV Wire Electrical Wire Price
- Shenzhen
- T/T
You May Like
-
Electric Copper Conductor PVC Insulated Wire 450/750v
-
Black Red Yellow Soft ZB-BV Single Building Wires
-
H07V-U,H07V-R,H07V-K 2.5mm2 Copper Conductor PVC Insulated Electric Wire
-
450/750V HO7V-U Copper Conductor Cable PVC Insulated Wire
-
PVC Insulation H07V-U Electric Single Strand Copper Electrical Wire
-
PVC Insulation Stranded Copper Wire 1.0mm
Product Details
| Place of Origin | Guangdong, China | Brand Name | YongKunTai | |
| Model Number | H07V-U,BV electrical wire | Type | Insulated | |
| Application | Other, Building, Decorations,Building,Domestic Appliances | Conductor Material | Other, Oxygen free copper | |
| Conductor Type | Solid | Insulation Material | PVC |
Product Description
PVC insulated copper conductor single core BV wire electrical wire price

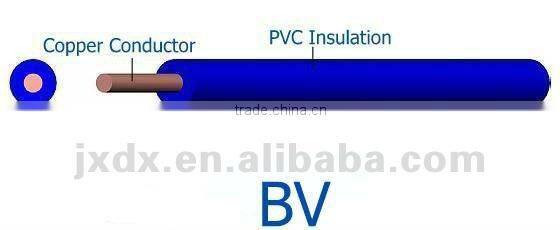

structure chart:
Model:bv electrical wire
Application:
H07V-R/H07V-U to BS6004 is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Conductor:
H07V-R: Class 2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360)
H07V-U: Class 1 solid plain copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation: PVC (Polyvinyl Chloride) Type TI1 to BS7655
Insulation Colour: Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey( Note: Insulation colors other than the above may be manufactured on customer request. )
Voltage Rating: 450/750V
Temperature Rating: 0°C to +70°C
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
Code Designation by IEC | Code Designation by GB | Rated Voltage | Name | Application | Rated Temperature |
60227 IEC 01 | BV | 300/500V | Copper conductor PVC insulated rigid cable (electrical wire) | Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 | BV | 450/750V | |||
| BLV | 450/750V | Aluminum conductor PVC insulated rigid cable (electrical wire) | ||
| BVR | 450/750V | Copper conductor PVC insulated semi-flexible cable (electrical wire) | Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 | BVV | 300/500V | Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
| BLVV |
300/500V
| Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) | ||
| BVVB | 300/500V
| Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
| BLVVB | 300/500V
| Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) | ||
60227 IEC 02 | RV | 450/750V
| Copper conductor PVC insulated flexible connector cable (electrical wire) | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 | RV | 300/500V | |||
60227 IEC 42 | RVB | 300/300V | Copper conductor PVC insulated flat flexible connector cable (electrical wire) | ||
| RVS | 300/300V
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire) | ||
60227 IEC 52
| RVV |
300/300V
| Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) | ||
60227 IEC 53 | RVV | 300/500V |

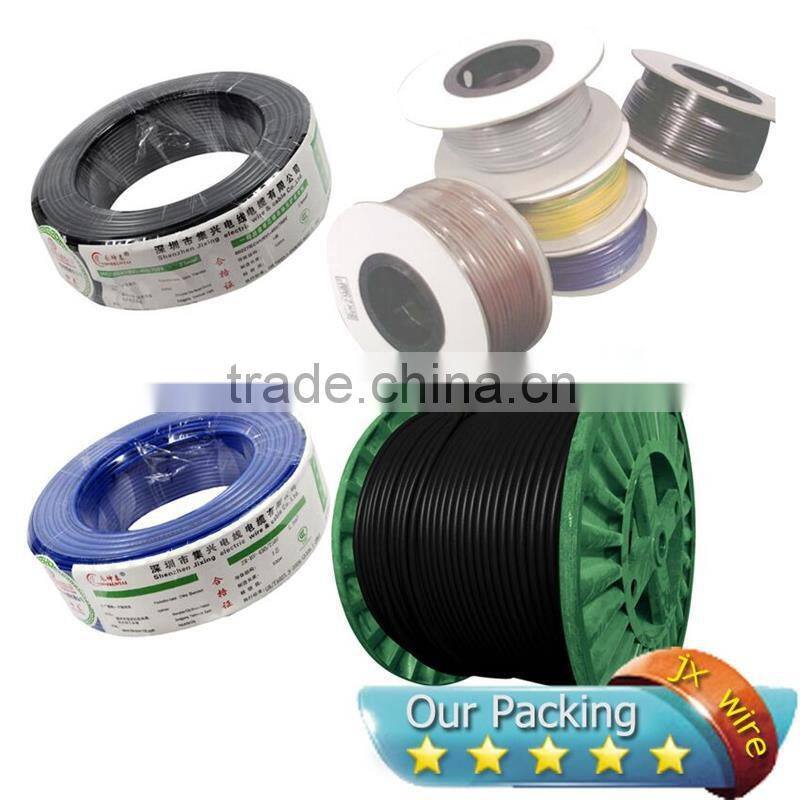

Our packing:

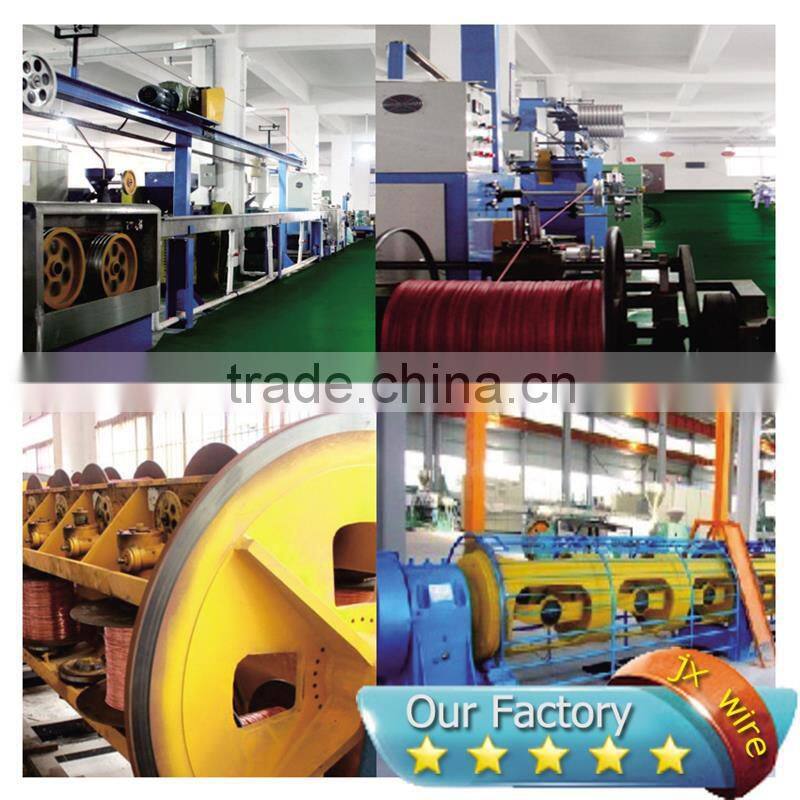

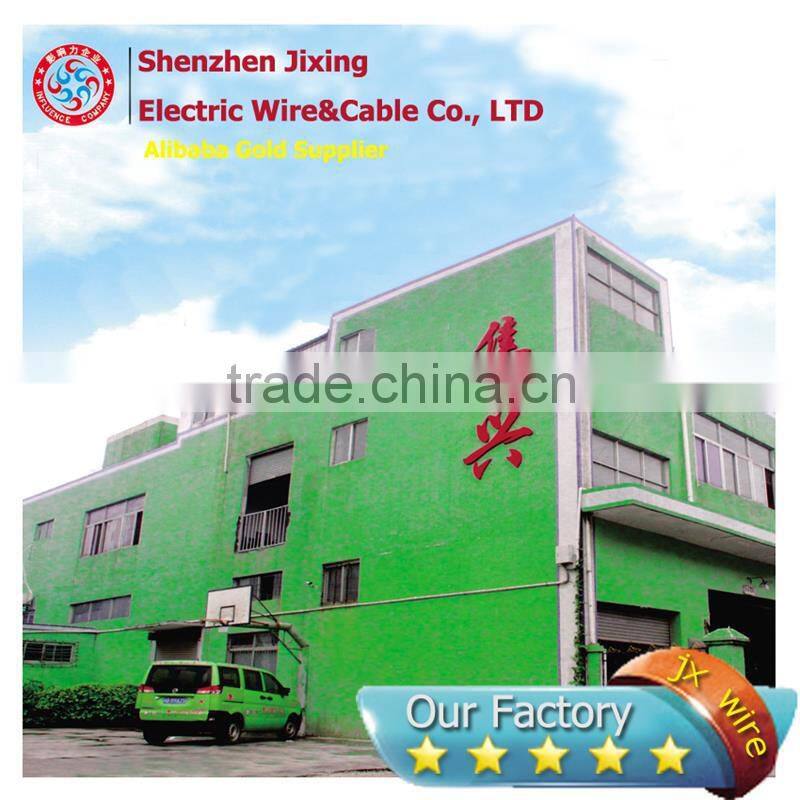

Our factory:
Certifications:
Our customer:
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
High thermolysis effeciency
1.heat resistant
High quality with anti-dust, anti-aging
pper conductor
High resistance against oil, steam, bacteria
3. pvc insulated
Creative technique for conductivity
4.creative technology wire
High resistance against heat, clod, abrasion, uv, ozone and hydroly
2
