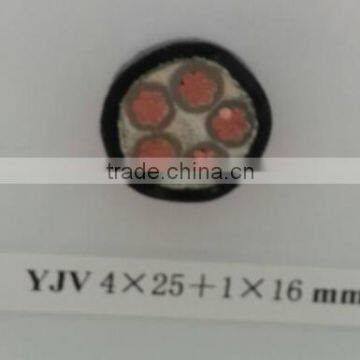

underground installation medium voltage cable armoured cable 4core with earthing cable
- shenzhen
- L/C D/P D/A Credit Card
You May Like
-
types of electrical underground cables
-
Ground Cable 70sqmm 450/750 CU/PVC, Ground Cable, coupling
-
35mm power cable electrical supplier
-
power cable two/double cover single core 16mm2
-
3C+E*240mm2 XLPE insulation PVC sheath copper cable
-
Cu conductor,multi-cores,xlpe power cable ,prices reasonable,good quality
Product Details
| Place of Origin | Guangdong, China | Brand Name | YONGKUNTAI | |
| Model Number | VV | Type | Insulated | |
| Application | Other | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | PVC |
Product Description
Specifications
1)Use for electric wiring2)pvc copper wire
3)in Electrical Equipment and Supplies
4)cheap price
5)low voltage
YJV Low-voltage xlpe Insulated Power Cable
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Application:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is a risk of mechanical damage, armoured cables should be used.
Construction:
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
Number of cores:
1core 2core 3core 3+1core 4core 4+1core 4+2core 5core and so on.
Nominal Section Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
2 Some common use models:
Type | Description | Application n | |
Cu | Al | ||
YJV | YJLV | XLPE insulation PVC sheath power cable | To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY | YJLY | XLPE insulation PE sheath power cable | |
YJV22 | YJLV22 | XLPE insulation, steel tape armor, PVC sheath power cable | To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 | YJLV23 | XLPE insulation, steel tape armor, PE sheath power cable | |
YJV62 | YJLV62 | XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable | |
YJV32 | YJLV32 | XLPE insulation, thin steel-wire armor, PVC sheath power cable | Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 | YJLV72 | XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable | |
YJV42 | YJLV42 | XLPE insulation, thick steel-wire armor, PVC sheath power cable | Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
all cable we have:
