Marine Vertical Horizontal Air Receiver Tank Reservoir

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

PP Marine

Product Description

Marine vertical horizontal Air Receiver tank reservoir

We can supply marine air receiver with two types, A type is vertical or inclination air receiver ; B type is horizontal air receiver . we have got DNV ,GL,BV,CCS etc class certificate for our two types of air receiver .

Marine Low-pressure Air Bottle is mainly used to store compressed air, and supply start up or air whistle for main engine and auxiliary engine .

Structure :

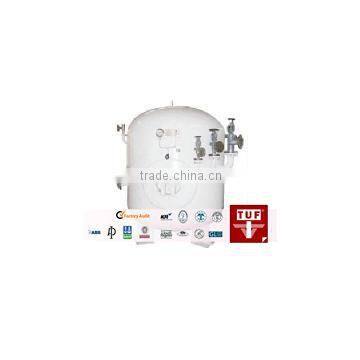

A-style vertical or inclination Marine Air Receiver , is made up of bottle valve and steel body .body has handhole (or manhole ) for easy wash and examination .And bottle valve set up inlet / outlet valve ,safety valve ,pressure gauge ,pressure gauge valve ,drain valve etc.

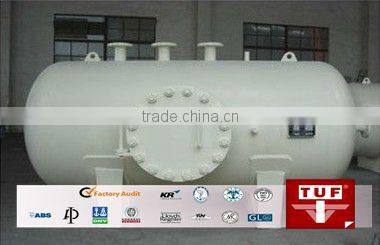

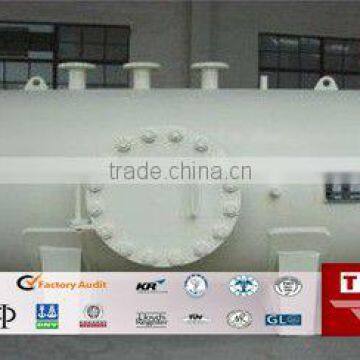

B-style horizontal Marine Air Receiver , is made up of steel body ,end, manhole for easy examination and repair set in end ,inlet /outlet valve ,safety valve ,pressure gauge , pressure gauge valve ,drain valve and installation seat etc.

Product parameter data

Type	Type remark	Capacity (m³)	Work pressure (MPa)	Internal diameter (mm)	Height (mm)	Length (mm)	Distance (mm)	Weight (kg)
A	A0.05-1.0	0.05	1.0	300	1050			70
	A0.10-1.0	0.10		400	1270			125
	A0.16-1.0	0.16		400	1750			155
	A0.25-1.0	0.25		500	1760			180
	A0.32-1.0	0.32		500	2170			248
	A0.40-1.0	0.40		600	1865			260
	A0.05-3.0	0.05	3.0	300	1050			100
	A0.08-3.0	0.08		400	1360			120
	A0.10-3.0	0.10		400	1270			165
	A0.16-3.0	0.16		500	1750			215
	A0.25-3.0	0.25		500	1760			295
	A0.32-3.0	0.32		600	2100			345
	A0.40-3.0	0.40		600	1865			410
	A0.50-3.0	0.50		700	2270			450
B	B0.63-1.0	0.63	1.0	700	1370	1830	1005	480
	B0.80-1.0	0.80		700	1370	2270	1450	520
	B1.00-1.0	1.00		800	1490	2200	1245	695
	B0.63-3.0	0.63	3.0	700	1470	1830	975	680
	B0.80-3.0	0.80		700	1470	2270	1420	780
	B1.00-3.0	1.00		800	1580	2200	1245	950
	B1.60-3.0	1.60		900	1680	2740	1690	1180
	B2.50-3.0	2.50		1100	1940	2890	1625	1925
	B4.00-3.0	4.00		1200	2040	4200	1800	3400
