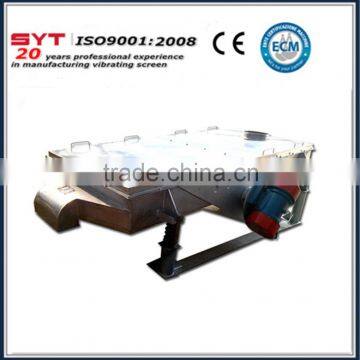

Multi-layer linear vibrating screen

Multi-layer linear vibrating screen

Describe——linear Vibrating Screen

    SYZ linear Vibrating Screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

Features——linear Vibrating Screen

    1.Easy to operate and maintain.

    2.Low consumption with high yield and low cost.

    3.Fully enclosed structure, automatic layout, more suitable for pipeline operations.

    4.Good sealing without dust flying.

    5.Can be used for single or multi layer.

    6.Material auto discharge, be able to continuous operation.

    7.Every part of the screen box used copper plate and section welded together.

Working Principle——linear Vibrating Screen

    SYZ Linear vibrating screen uses double vibrating motors to drive,when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.

Application——linear Vibrating Screen

Application in details——linear Vibrating Screen

    1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

    2.Organic fertilizer industry.

    3.Plastics industry.

    4.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

    5.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

    6).Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

    7.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

    8.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc

Technical Parameter——linear Vibrating Screen

Some of the Products show

1.Design as your request
2.Any problems, please feel free to tell us
3.We will offer you the perfect design with competitive price
4. Provide technical support unconditionally

5. Providing solutions according to the real situation

Exhibition pictures show:

Frequently Asked Questions (FAQ):

Q: What are you mainly specilized in?
A: Our company is a professional manufacture of vibrating equipments(like rotary vibrating screen,linear vibrating screen,test sieve machine and so on);conveying equipment (like screw conveyor,vertical bucket condeyor and so on);honey processing equipment;grain sieving equipment.we have been in this field for 20 years.

Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.
Q:What is the MOQ of our products?
A:Usually 1 set.

Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.
Q:What's your delivery time?
Ususlly 7-10 working days,if the order is large,the time should be longer.

Q: What’s the advantage compared to other suppliers?
A:We are a Industry and trade company,there isn't any link between customers,so we can offer competitive price for you.

Contact me to get more details...
