2013 best apollo 4 led grow light 3w 60pcs*3W for growing plants/Hydroponics made in China

LED Light Source	Epistar		Input Voltage(V)	AC100~240V
Lamp Power(W)	136		Lamp Luminous Flux(lm)	2400
Lamp Luminous Efficiency(lm/w)	18		Color Temperature(CCT)	Other, blue red
Working Temperature(℃)	20, 40		Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum		IP Rating	IP65
Certification	CE, FCC, PSE		Emitting Color	Changeable
Brand Name	Chigather		Model Number	Apollo 4

Specifications

Apollo_4_LED_Grow_Light
700 MA Benchmark
Aluminum face shield design
Intelligent Detection System
Modular Assembling

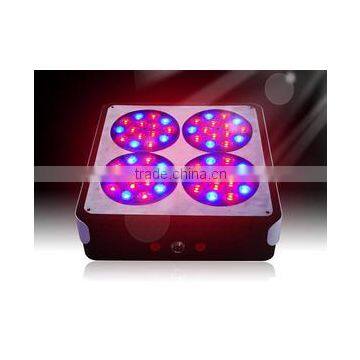

Apollo 4 LED Grow Light



		Name:Apollo 4 LED Grow Light
		Model:CDL-G-Apollo 4
		LED QTY.:60pcs*3W
		Size:270*283*85mm
		N.W.:3.65kg
		Certificate:CE,RoHS,FCC,PSE



Specification
Size	270*283*85mm	Actual Power	132W~136W
Input Voltage	AC100~240V	Output Current	700mA
Output Voltage	DC32~45V	LED Quantity	60pcs
Lifespan	50,000 Hours	LED Type	3W
Working Environment	-20~40°C,45%~95%RH	Color	Red(630nm)/Blue(460nm)
Working Frequency	50~60Hz	Lumens	2400lm
PAR	238umol/1m 120/1.5m	LUX	9500lux/1m 4700lux/1.5m
N.W.	3.65kg	Lighting Area	8.5/1m 19.3/1.5m
Inner Carton Size	360*350*150mm	G.W.(Inner carton)	4kg
Outer Carton Size	540*380*360mm/4pcs	G.W.(Outer carton)	17.9kg
Standard configuration	LED Light x1,Power line x1,Chaining x2
Remarks	The above parameter is based on Red:Blue=8:1, for reference only

Characteristics:

1. Use 3W high quality LED lighting source, the lifespan is over 50000 hours.

2. Replace 3~5 times of the HPSL power, 80% electric energy saving than the tradition HPSL and MHL.

3. High lighting effect, 90% of the light will be absorbed by the aquatic plant, but to the traditional HPSL and MHL, the lighting effect is just 8%~10%.

4. The input voltage is AC100V~240V,suitable for the world standard. Built-in power supply. No need other equipment, just access AC100~240V voltage from the plug, the lamp will be working smoothly, don't need the reflector and ballast either.

5. Revolutionary heat dissipation design, availably alleviate the internal thermal cycle, 10-15°C lower than its precursor in performance.

6. Intelligent monitor system, ensure the whole equipment in a good working state.

7. Using advanced isolated power driver, UL standard output voltage which is lower than 45V DC.Soft starting protection to avoid the transient currents impact, effectively protecting the LEDs from high voltage damage.

8. Aluminium face shield design, housing available for various colors.

9. New product is lighter and more convenient for shipping,modular assembling very convenient for maintaining.

10. Modular assembling, no glue and glass design, very easy for repairment and maintenance.

11. New technology in fans will be more long-lasting,decreasing 50% noise.

12. Built with optical lenses, the penetration is more outstanding.,can be as much as 10-15 times powerful,available four options of lenses(90 degree,120 degree).

13. The lighting area and the height are changeable according to different plants and environments, the same as the parameter .

          14. Environment-friendly, no mercury and other harmful heavy metal.

15. Appearance features are also can be customer design,available shell colors:red,black,white.Face shield colors:red,black,silver,blue.Vents colors:red,black,ivory white,grey.

16. Customers can choose the different ratios, Our suggestion is red: blue=8:1 or 7:2, red: blue: orange=7:1:1. The suggested wavelength of the red is 620-630nm, the blue is 460-470nm and the orange is 610-615nm. With the mixture of red ,blue, orange, yellow, UV, IR and white lights, provide the plants needed nutrient light. The red LEDs are good for sprouting and flowering, while the blue LEDs promote the growth, at the same time, customers also can choose the more suitable wavelength and LED colors.

Application:

          Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing,breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.

Attention:

1. Do not use the lights in dripping water or anywhere where they will get wet, water and electricity can be a dangerous mixture.

2. The working environment for the light is -20~40°C,45%RH~90%RH.

3. To protect the light, Pls cut off the power when there is a lightning strike.

4. Don’t touch or move when the light working.
