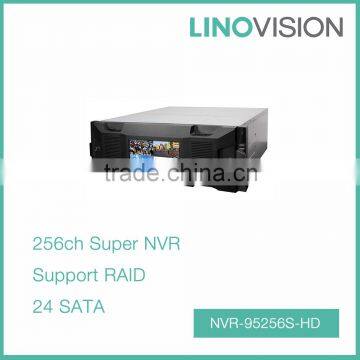

Super 256CH 8MP Resolution 4U 24HDD RAID NVR, Support Front LCD display & hot swap

Model

NVR-95256S-HD

System

Main Processor

Intel® Core™ i7 Processors

Operating System

LINUX

Motherboard

Embedded Board (Support 7x24 operation)

Memory

8GB DDR3(up to 16GB)

Case

Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design

Fan

Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation

Interface

Local GUI &WEB GUI

Video & Audio

Input

128ch@1080P/256ch@720P

Transmission

128ch@1080P/256ch@720P

Recording

128ch@1080P/256ch@720P

Preview

20ch@1080P/40ch@720P/68ch@D1(Screen 1~2 , default)
+16ch@1080P/16ch@720P/16ch@D1(Screen 3~6) (Optional)

Playback

16ch@1080P/16ch@720P/16ch@D1 (128Mbps in Raid 5 mode)
8ch@1080P/16ch@720P/16ch@D1 (64Mbps in single HDD mode)

Recording Resolution

8Mp, 5Mp, 3Mp, 1080P, 720P, 960H, D1, CIF, QCIF, VGA

Audio

1ch Micin, 1ch Micout

Recording

Recording Mode

Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

Alarm Recording

Video loss, Camera blank, Motion detection, External alarm

Backup Mode

Network download / USB HDD/USB CD&DVD-RW / eSATA Device

Display

Interface

2 HDMI+1 VGA ( Optional: 10 HDMI, 1 VGA )

Video Output

2 HDMI/1 HDMI+1 VGA (Optional: 1 VGA+10 HDMI)

Multi-screen Display

The 1st screen: 1/4/8/9/16/25/36/64
The 2nd-6th screens: 4 (optional)

Privacy Masking

4 customized zones for privacy masking for each area

Storage

Internal HDD

24 SATA ports, up to 96TB

HDD Mode

Single, Raid 0/1/5/6/10/50/60 (Support global HDD Hot-standby)

HDD Installation

Independent HDD rack, support hot swap

Network

Interface

4 RJ-45 ports(10/100/1000Mbps)

Ethernet Port

4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports

MD & Alarm

Motion Detection

Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)

Alarm Input

4ch, low level effective, green terminal interface

Relay Output

4ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

Auxiliary Interface

Front cover

Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR)

USB

4 USB ports(2 USB2.0 on front-panel, 2 USB3.0 on rear panel)

eSATA

1 eSATAport

SAS

2 Mini SASports

General

Power Supply

AC100V~240V, 47~63Hz

Power Consumption

200W~400W(WithHDD)

Working Environment

0°C~40°C

Working Humidity

10%~80% ( non-condensation)

Dimension(W×D×H)

4U, 480mm×494mm×175mm

Weight

29kg (without HDD)

Installation

Rack-mounted
