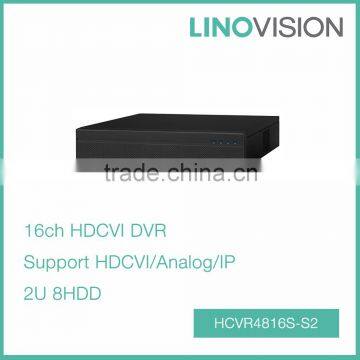

Professional 16CH 2U 8HDD ONVIF H.264 Anolog& HDCVI DVR , Support HDCVI/Analog/IP

Model

HCVR4816S-S2

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

16 channel, BNC

Standard

Analog

NTSC/PAL

HDCVI

720P HDCVI Camera

IP

Support 2ch 1080P/720P IP Camera

Audio

Input

16 channel, BNC

Output

1 channel, BNC

Two-way Talk

1 channel Input, 1 channel Output, BNC

Display

Interface

1 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Display Split

1/4/8/9/16

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio Compression

H.264 / G.711

Resolution

1*720P(1~25/30fps)+15*720P(1~15fps)/16*960H(1~25/30fps)

Record Rate

Main Stream

1*1080N/720P(1~25/30fps)+15*(1~12/15fps) /960H/D1/HD1/ BCIF/CIF/QCIF (1~25/30fps)

Bit Rate

20~4096Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips

Video Detection

Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input

16 channel

Relay Output

6 channel

Playback & Backup

Sync Playback

1/4/9/16

Search Mode

Time/Date, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera,

Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/eSATA Device/Internal SATA burner/Network

Network

Ethernet

2RJ-45 port (10/100M/1000M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

IP Filter, SNMP, P2P

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

8 SATA ports(8 HDDs or 6HDDs+1 CD/DVD-RW), up to 32TB

External HDD

1 eSATA port

Auxiliary Interface

USB Interface

4 ports (2 Rear), USB2.0

RS232

1 port, For PC communication & Keyboard

RS485

1 port RS485 for PTZ control,1 port RS422 for Keyboard

General

Power Supply

AC 100~240 V, 50/60 Hz

Power Consumption

40W(Without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W×D×H)

2U, 440mm×460mm×89mm

Weight

6.5KG(without HDD)
