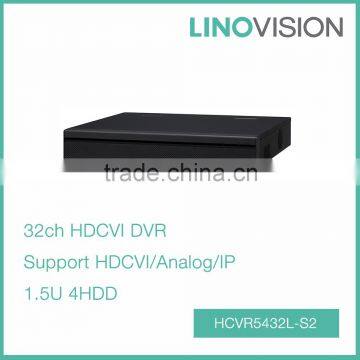

New 32CH 1.5U 4HDD Tribrid 720P-Pro H.264 HDCVI DVR , Support HDCVI/Analog/IP

Model

HCVR5432L-S2

System

Main Processor

Embedded processor

Operating System

Embedded LINUX

Video

Input

32 channel, BNC

Standard

Analog

NTSC/PAL

HDCVI

1080P/720P HDCVI Camera

IP

All channels support 1080P/720P IP Camera

Audio

Input

4 channel, RCA

Output

1 channel, RCA

Two-way Talk

Reuse audio input/output channel 1

Display

Interface

2 HDMI, 1 VGA, 1 TV

Resolution

1920×1080, 1280×1024, 1280×720, 1024×768

Display Split

1/4/8/9/16/25

Privacy Masking

4 rectangular zones (each camera)

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Video/Audio Compression

H.264 / G.711

Record Rate

Main Stream

1080P(1~15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)

Extra Stream

CIF/QCIF(1~25/30fps) ,D1

Bit Rate

48~4096Kb/s

Record Mode

Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval

1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Playback & Backup

Sync Playback

1/4/9/16

Search Mode

Time/Date, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera,

Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device/Internal SATA burner/Network

Network

Ethernet

RJ-45 port (10/100M/1000M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP,

IP Filter, SNMP, P2P

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Storage

Internal HDD

4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB

External HDD

1 eSATA port

Auxiliary Interface

USB Interface

3 ports (2 Rear), USB2.0

RS232

1 port, For PC communication & Keyboard

RS485

1 port RS485 for PTZ control,1 port RS422 for Keyboard

General

Power Supply

AC 100~240 V, 50/60 Hz

Power Consumption

40W(Without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W×D×H)

1.5U, 440mm×416mm×68mm

Weight

6KG(without HDD)
