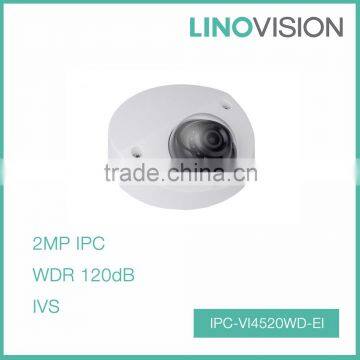

2MP Full HD WDR Network Vandal-proof Wedge Dome IP IR Camera POE

Model

Camera

Image Sensor

1/2.7” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Min. Illumination

0.01lux/F2.0(color),0lux/F2.0 (IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features

Max. IR LEDs Length

20m

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC /WDR(120dB)

White Balance

Auto/Sunny/Night/Outdoor/Customized

Gain Control

Auto/Manual

Noise Reduction

3D

Privacy Masking

Up to 4 areas

Lens

Focal Length

3.6mm (2.8mm,6mm optional)

Max Aperture

F2.0(F2.0,F2.0)

Focus Control

Manual

Angle of View

H:93°(120°/63°)

Lens Type

Fixed lens

Mount Type

Board-in Type

Video

Compression

H.264/H.264B/H.264H/ MJPEG

Resolution

1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/

D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main Stream

1080P/720P(1 ~ 25/30fps)

Sub Stream

D1/CIF(1 ~ 25/30fps)

Third Stream

720P(1-13/4fps)

Bit Rate

H.264: 32K ~ 10Mbps

Corridor mode

Support

Audio

Compression

N/A

Interface

N/A

Smart Function

  Smart detection

Tripwire

Intrusion

Abandoned/Missing

Scene Change

Audio detect

Face detect

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

N/A

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

ONVIF

ONVIF,PSIA,CGI

Max. User Access

20users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot

N/A

RS485

N/A

Alarm

N/A

PIR Sensor Range

N/A

General

Power Supply

DC12V, PoE (802.3af)

Power Consumption

<5W

Working Environment

-30°C~+60°C, Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Dimensions

Φ106mm×50.3mm

Weight

0.35kg
