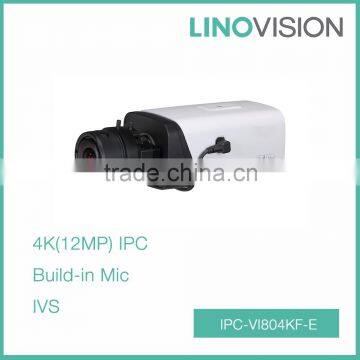

12Megapixel Ultra HD Network Professional box IPC
- Shanghai
- Credit Card
You May Like
-
4K(12MP) Megapixel Ultra HD Network Bullet Motorized lens IPC
-
Live Stream IP Network WiFi Media Box for Broadcasting
-
Live Stream IP Network PTZ camera for Broadcasting
-
Professional 4CH 1U 1SATA NVR, Support 4 ports POE
-
Professional 8CH 1U 2SATA NVR, Support 8 ports POE
-
Professional 16CH 1U 2SATA NVR, Support 16 ports POE
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Linovision/No name/OEM | |
| Model Number | IPC-VI804KF-E | Type | IP Camera | |
| Style | Box Camera | Sensor | CMOS | |
| Technology | NetWork | Special Features | Other, 4K(12MP) IPC |
Product Description
> 1/1.7" 12 Megapixel progressive scan CMOS
> Support H.264/MJPEG dual codec
> Smart triple streams supported
> Max 15fps@12MP(4000x3000)
> Ultra Defog, ROI, EIS
> Auto back focus
> Bulit-in Mic
> 100/1000M Base-T Ethernet
> Free CMS, free mobile phone APPs
Model | IPC-VI804KF-E | ||
Camera | |||
Image Sensor | 1/1.7” 12Megapixel CMOS | ||
Effective Pixels | 4000(H)x3000(V) | ||
Scanning System | Progressive | ||
Electronic Shutter Speed | Auto/Manual, 1/3~1/10000s | ||
Min. Illumination | Color: 0.01Lux/F1.2, B/W: 0.001Lux/F1.2 | ||
S/N Ratio | More than 50dB | ||
Video Output | 1 channel BNC(1.0Vp-p,75Ω) | ||
Camera Features | |||
Max. IR LEDs Length | N/A | ||
Day/Night | Auto(ICR)/Color/B/W | ||
Backlight Compensation | BLC / HLC / DWDR | ||
White Balance | Auto/Manual | ||
Gain Control | Auto/Manual | ||
Noise Reduction | 3D | ||
Privacy Masking | Up to 4 areas | ||
EIS | Support | ||
Ultra Defog | Support | ||
Smart focus | ABF | ||
Lens | |||
Mount Type | C/CS | ||
Video | |||
Compression | H.264/MJPEG | ||
Resolution | 12M(4000×3000)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288) | ||
Frame Rate | Main Stream | 12M(1~15fps)/8M/1080P (1~25/30fps) | |
Sub Stream | D1/CIF(1 ~ 50/60fps) | ||
Third Stream | 1080P/720P/D1(1 ~ 50/60fps) | ||
Bit Rate | H.264: 32K ~ 96Mbps | ||
ROI | Up to 4 areas | ||
Audio | |||
Compression | G.711a / G.711u | ||
Interface | 1/1 channel In/Out(Built in Mic) | ||
Network | |||
Ethernet | RJ-45 (10/100/1000Base-T) | ||
Wi-Fi | N/A | ||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
Compatibility | ONVIF, PSIA, CGI | ||
Max. User Access | 20 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone | ||
Auxiliary Interface | |||
Memory Slot | Micro SD, Max 128GB | ||
RS485 | 1 port | ||
Alarm | 2/1 channel In/Out | ||
General | |||
Power Supply | DC12V/AC24V, PoE (802.3af) | ||
Power Consumption | Max12W (ABF&ICR on) | ||
Working Environment | -30°C~+60°C, Less than 95% RH | ||
Ingress Protection | N/A | ||
Dimensions | 74.1mm×65.5mm×135.4mm | ||
Weight | 0.3Kg | ||
Headquartered in Hangzhou (China), and sales & support office in Dallas (United States), Linovision is committed to be a leading integrated surveillance solutions provider. From 2007,Linovision started developing PC based DVR/NVR software for Hikvision & Dahua DVR cards, then their IPcameras, and become software partner of leading manufacturers.
We are proud of supplying a complete line of professional IP video surveillance products in affordable price, by working closely with top level manufacturers in China. And with continuous investment in the latest technologies, we can also provide comprehensive system integration service.
Moreover, we are also developing cloud based video management solution for the next generation of video surveillance system.
Our Mission: To be a global leading integrated video surveillance solutions provider.
Our Advantage
- Consulting and Systems designing
- Product qualification and recommendation
- Project Integration service
- End to End & One stop sourcing
- Help to make website and marketing material
- OEM hardware/software design for specific needs
- Life cycle support
- Regularly training and knowledge updates
Our Milestone
| Year | Exhibition Name | Address | Year | Exhibition Name | Address |
| 2011 | Public Security Exhibition | Shenzhen, China | 2012 | ISC WEST 2012 Exhibition | Las Vegas, USA |
| 2013 | ISC WEST 2013 Exhibition | Las Vegas, USA | 2013 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | ISC WEST 2014 Exhibition | Las Vegas, USA | 2014 | EXPOSEC Exhibition | Sao Paolo, Brazil |
| 2014 | Security Essen Exhibition | Essen, Germany | 2015 | ISC WEST 2015 Exhibition | Las Vegas, USA |
| 2015 | EXPOSEC Exhibition | Sao Paolo, Brazil | 2016 | ISC WEST 2016 Exhibition | Las Vegas, USA |
Q. May I print our company logo on camera and NVR?
A: Of course, buyer logo is welcome in our company.
We have one production line for printing buyer logo.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products.
Q.What is your method of payment?
A: Pay via T/T, Western Union, Paypal, Escrow is welcome.
Q.What is Minimum Order Quantity?
A: Sample order is welcome, but the price is depend on the quantity.
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, TNT, UPS etc. For big order, we also have cooperated forwarders.
