1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Fiber Optic Splitter for FTTH
- Shenzhen
- Credit Card PayPal
You May Like
-
1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Optical Splitter for FTTH
-
1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Splitter ABS Switch Box
-
1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Fiber Optic Splitter for FTTH With Competitive Price
-
1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Optical Splitter for FTTH Optical Fiber Splitter Loss
-
1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Fiber Coupler for FTTH With Competitive Price
-
1*2/1*4/1*6/1*8/1*12/1*18/1*32 SC/FC/ST APC/UPC Fiber Optical Coupler,1*2 Fiber Optical Coupler Used in FTTH,FTTx,CATV
Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | hyg-PL-0035 |
1piece 1 box ,suitable quantity in one carton, or as your demand
Product Description
Specifications
1*16 fiber optic splitter:1.Multimode plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel
PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size
makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels
The PLC splitters are available with one or two input ports and up to 64 output ports.
1*16 fiber optic splitter
1.Multimode plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel
1*16 fiber optic splitter application:
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
1*16 fiber optic splitter technical specifications | |||||||||
Wavelength(nm) | 1260-1650 | ||||||||
Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
Insertion Loss(with connector)(dB) | ≤7.4 | ≤10.7 | ≤13.7 | ≤16.9 | ≤21 | ≤7.8 | ≤11.5 | ≤14.5 | ≤17.7 |
Insertion Loss(W/O connector)(dB) | ≤7.7 | ≤11.2 | ≤14.2 | ≤17.5 | ≤21.5 | ≤8.3 | ≤12 | ≤15 | ≤18.2 |
Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.7 | ≤1.7 | ≤1.7 | ≤2.2 | ≤2.7 |
PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.4 | ≤0.4 |
Size(bare bype) (H×W×L)(mm) | 4×4×50 | 4×7×50 | 4×12×60 | 4×4×50 | 4×7×50 | ||||
Return Loss(dB) | >50 | ||||||||
Directivity(dB) | >55 | ||||||||
Temperature Range(°C) | -40~+75 | ||||||||
Storage Temperature(°C) | -40~+85 | ||||||||

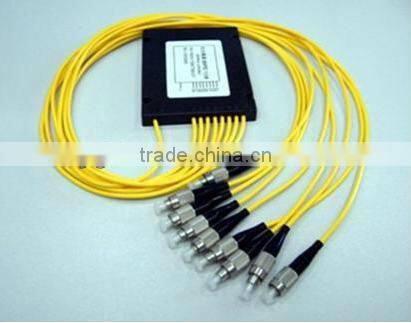

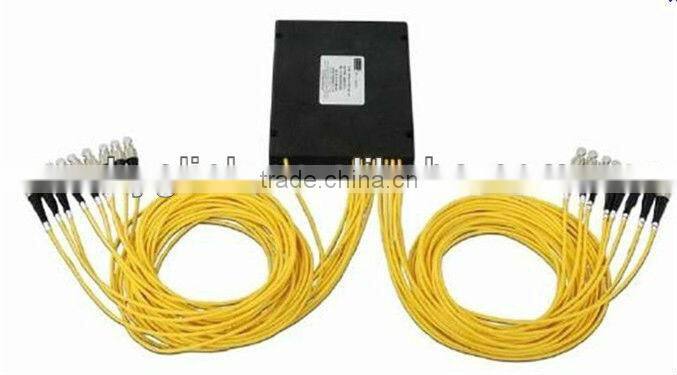

1*16 fiber optic splitter pictures:
Company Profile
About HYG Optics The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc. HYG Quality Assurance Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system. Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer. The location The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc. Our mission QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
