1*4,1*8,1*16 Single Mode& Multi Mode LC/SC/FC/ST Fiber Optical Splitters/coupler for Telecommunication Network
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Professional Manufacturer FBT Splitter for Fiber Network Equipment
-
Professional Manufacturer FBT Fiber Optic Splitter for Fiber Network Equipment
-
Professional Manufacturer FBT Optical Splitter/catv Optical Splitter for Fiber Network Equipment
-
1*4 Fiber Optic Splitter/1 8 Fiber Optic Splitter for Protect Solution
-
1*4 Fiber Optic PLC Splitter,1*8 Plc Splitter With Fc/upc Connector for Protect Solution
-
1*4 Packaged Fiber Optic Splitter/1 4 Fiber Optic Splitter for Protect Solution
Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | hyg-PL-0061 |
1piece 1 box ,suitable quantity in one carton, or as your demand
Product Description
1*4,1*8,1*16 single mode& Multi mode LC/SC/FC/ST fiber optical splitters/coupler for elecommunication network
PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size
makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels
The PLC splitters are available with one or two input ports and up to 64 output ports.
Fiber optic splitter:
1.SM&MM plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel
Fiber optic splitter application:
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
Fiber optic splitter technical specifications | |||||||||
Wavelength(nm) | 1260-1650 | ||||||||
Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 |
Insertion Loss(with connector)(dB) | ≤7.4 | ≤10.7 | ≤13.7 | ≤16.9 | ≤21 | ≤7.8 | ≤11.5 | ≤14.5 | ≤17.7 |
Insertion Loss(W/O connector)(dB) | ≤7.7 | ≤11.2 | ≤14.2 | ≤17.5 | ≤21.5 | ≤8.3 | ≤12 | ≤15 | ≤18.2 |
Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.7 | ≤1.7 | ≤1.7 | ≤2.2 | ≤2.7 |
PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.2 | ≤0.4 | ≤0.4 | ≤0.4 |
Size(bare bype) (H×W×L)(mm) | 4×4×50 | 4×7×50 | 4×12×60 | 4×4×50 | 4×7×50 | ||||
Return Loss(dB) | >50 | ||||||||
Directivity(dB) | >55 | ||||||||
Temperature Range(°C) | -40~+75 | ||||||||
Storage Temperature(°C) | -40~+85 | ||||||||

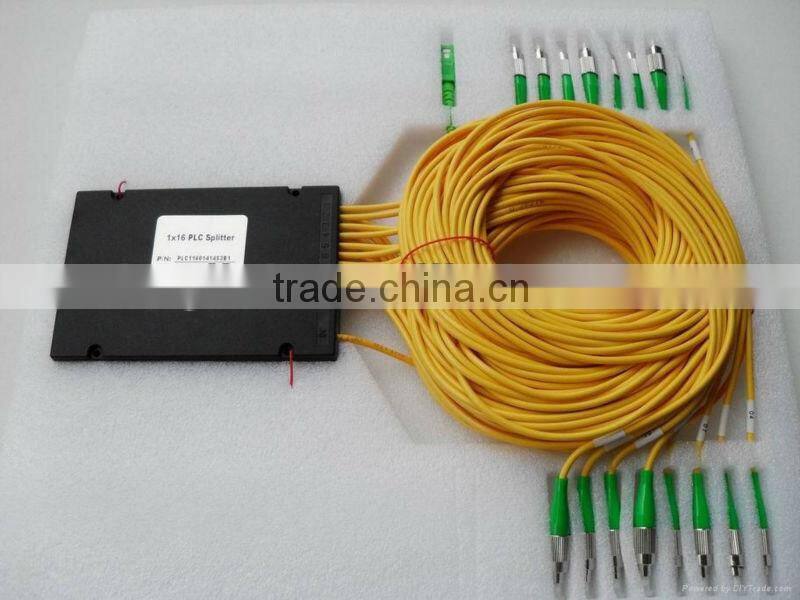

Fiber optic splitter pictures:
