Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | HYG-PLC-1/32 |
1 pc/Polybag+carton box
Product Description
Specifications
1*32 optical fiber splitter1.High channel counts
2.Compact design
3.Low insertion
4.Wide wavelength

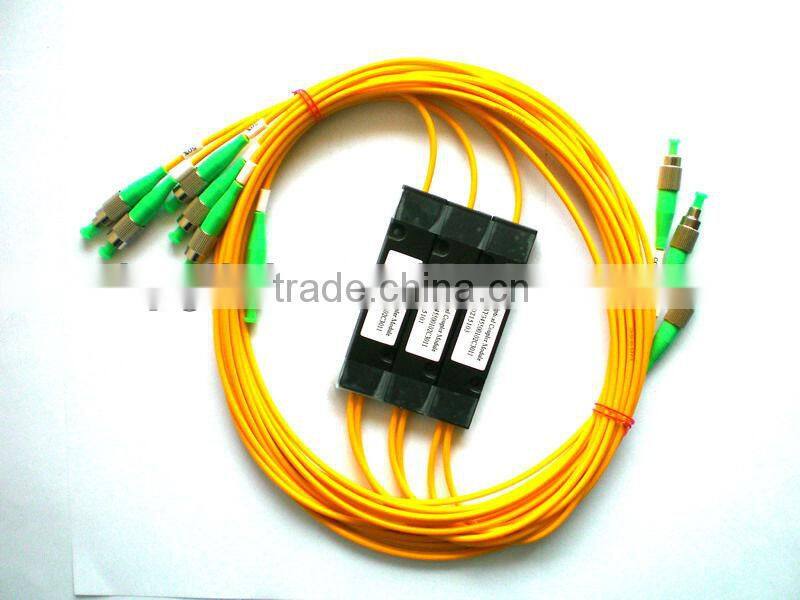

high quality1*32 optical fiber splitter/1 2 optic splitter for protect solution
Special Features :
· All-optical Structure
· Hi-reliability
· Low PDL, Low Insertion Loss
· Hi-directivity, High Return Loss
· Good stability and reliability
· Excellent polarization insensitivity
· Flexible packaging
· Operating wavelength: 1,310nm or 1,550nm, and other wavelength is available on requests
· Coupling ratio: 10/90, 20/80, 30/70, 40/60, 50/50, and customized ratios are available
· FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors are available
Applications :
· Optical LAN & WAN & CATV
· FTTH project & FTTX Deployments
· Broadband High-bit rate data transmission
· Active device terminations
· Testing instruments
· Optical fiber communication networks
· PON Networks
· Optical Signal Distribution
| Specifications | |||||
| 1*N | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Operating wave length (nm) | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 | 1260-1650 |
| Insertion loss(dB) Max(S/P): | 7.4/7.2 | 10.7/10.5 | 13.7/13.5 | 16.9/16.5 | 21 |
| Loss homogeneity(dB) Max | 0.8 | 1 | 1.4 | 1.9 | 2.7 |
| Return loss(dB) Min(S/P) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Operating temperature: -40 ~ +85 | |||||
| Storage temperature: -40 ~ +85 | |||||
| Splitting ratio: average | |||||
| Type: 1X32 | |||||
| Fiber cable outer size: 0.9, 2.0, 3.0mm(D) are available | |||||
| Fiber lead length: 1.5m or customized | |||||
| Transmission mode: SM G.652 G.655 or MM 50/125,62.5/125 | |||||
| In/Out put way: FC, SC, ST are optional | |||||
| In/Out put connecter: PC, UPC, APC are optional |
Quality Warranty:
1,ISO90012,TLC Prove
3,Rohs report
4,GR-326-CORE Experiment room
5,Certificate of Metrological Authorization of China
6,NTT Compatible Test Certificate
some detail picture
Company Profile
About HYG Optics The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc. HYG Quality Assurance Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system. Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer. The location The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc. Our mission QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
