Home > Products > CCTV Accessories > 3.5"TFT-LCD UTP cable tester, Audio testing CCTV Tester
3.5"TFT-LCD UTP cable tester, Audio testing CCTV Tester
- 10000 Piece / Pieces per Month
- shenzhen port
- Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | joney | |
Model Number | JY-T893 |
Product Description
3.5"TFT-LCD UTP cable tester, Audio testing CCTV Tester
cctv tester
1. 3.5" TFT LCD (Supply 12V 1A Power to Camera)
2. CCTV system installation and maintenance
3. Dome camera and All in one camera testing
4. The CCTV transmitting channel testing
5. PTZ Controller / Video signal generator / UTP cable tester/Audio tester
6. Battery works 12 hours
WHAT IS THE SPECIFICAYION OF CCTV tester?
Model | JY-T893 |
Audio input test | test the pickup and other audio equipments on the front-end |
Battery | Built-in 3.7V Lithium polymer battery ,3000mAh |
Baud Rate | 150,300,600,1200,2400,4800,9600,19200bps |
Color bar generation | Output one channel PAL/NTSC colorbar video signal for testing monitor or video cable. |
Communication | RS232, RS422 simplex and RS485 |
Data Monitor | Captures and analyzes the command data from controlling device |
DC12V power output | Output DC12V1A power for camera |
Dimension/Weight | 176mmx94mmx36mm/1.3kg |
Display | 3.5 inch digital TFT-LCD ,960 x 240 resolution |
LCD adjustment | Brightness, Contrast, Saturation adjustable |
Level test | Video signals measured in IRE or mV |
Low Consumption | Energy saving technology |
Multimeter | Voltage, current, resistance and capacitance measuring, continuity testing, diode testing. |
Power Adapter | DC5V, 2A |
PTZ Protocol | Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
Rechargeable | After charging 3-4 hour, working time lasts 12 hours |
Signal mode | NTSC/PAL (Auto adapt) |
UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. |
Video IN/OUT | 1 channel BNC Input & 1 channel Output |
Video Output Mode | 1.0 Vp-p |
Working Humidity | 30%-90% |

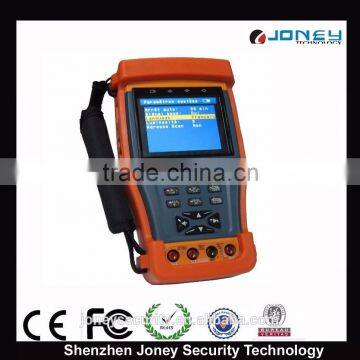

CCTV TESTER PHOTO
CCTV TESTER PACKAGE
THE BEST SERVICES
1. Professional Technical Team:
A. We provide professional solution and reply for every inquiry in 24 hours.
B. Best quality and service, best after-sale
C. 2 year warranty time, life long technology support.
D. We can offer professional remotely technical support for problems.
2. OEM,ODM service: Customized requirement is available, we can design and produce machines with your own logo.
3. Good quality: We have strict quality control system .Good reputation in the market.
4. Special offers: We have special offers for long-term cooperation clients.
TRANSACTION PROCESS
1.First send us an inquiry for quote or through trademanager,please be specific on products catagoy,products name ,color,quantity and your requirement about the products.
2.Then we will response to your request within 24 hours with an quotation sheet,payment term and delivery time .
3.After confirming all the information by you,we will prepare a copy of PI(proforma Invoice) or purchase agreement,we will attached the bank information in the PI.
4.After confirm your payment, we will arrange the products for you as soon as possible
