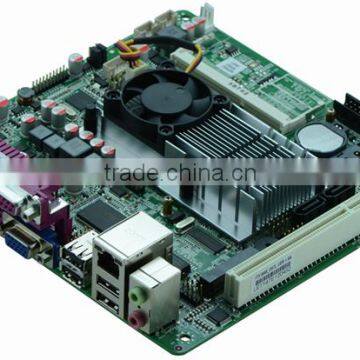

industrial motherboard N570 mainboard mini 12v 1* MINIPCIE slot, support WIFI/3G

Model NO.

ITX-M58_D57L VER:1.5A

CPU

Integrdined,Intel®N570/1.66GHz dual core CPU,TDP 8.5W

Chipset

Adopt Intel® 8201HBM chipsets

Memory

1*SO DIMM slot,support DDR3 1333/1066MHz RAM,Max up to 2GB

Graphics

Integrdined,Intel®3150 Graphics

Support 1*VGA,1*LVDS (support single channel 24BIT)

VGA;LVDS support synchronous/asynchronous display

LAN

1* RTL8105E 100 Mbps LAN controller, support Wake-on-LAN/PXE

Storage

2* SATAII, transfer rate up to 3Gbps

1* IDE Hard disk port

Audio

Onboard, ALC662 6channel HD audio controller, support MIC/Line-out / amplifier

Expansion Slots

1* MINIPCIE slot, support WIFI/3G module

1* MSATA slot, support SSD,SSD transfer rate up to 3Gbps

1* PCI slot

Rear I/O

1* 12V DC_JACK input

1* PS/2 port

1* RS232 port

1* VGA port

1* LPT port

4* USB2.0 port

1* RJ-45 Lan port

1* Audio (Line out / MIC)

Internal I/O

1* LVDS (2*10pin),support single channel 24 BIT LCD display

1* LVDS INVERTER(1*6pin)

1* JVGA1 (2*5pin) , same signal with DB15

1* JVGA2 with VGA LVDS support synchronous/asynchronous display

1* COM RS232(2*5pin)

4* USB2.0 port

1* PS/2, KB/MS connector (1*6Pin)

1* AUDIO front panel audio connector (2*5pin)

1* JPW1(support booting)

1* SIM card socket

2*PWROUT (HDD power connector)

1* FP1 front panel function buttons and indicator connector (2*5pin)

1* 4pin ATX-12V

Fan Interface

1* CPUFAN 3pin;1* SYSFAN 3pin

BIOS

AMI 8Mb Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M58_D57L VER:1.5A

N570/1.66G

1*SODDR3

2*VGA

1*24BIT

1*RTL805E

8

2

X

DC12V

2

ITX-M58_D52 VER:1.5A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

DC12V

3

ITX-M58_A45E VER:1.5A

N455/1.66G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

4

ITX-M58_A50 VER:2.1

N450/1.66G

1*SODDR2

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

5

ITX-M58_A42 VER:1.5A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

6

ITX-M58_A52 VER:1.5A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

7

ITX-M58_A56 VER:1.6A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

6

COM2

ATX

8

ITX-M58_D56 VER:1.6A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

6

COM2

DC12V

9

ITX-M58_D56L VER:1.6A

D525/1.80G

1*SODDR3

2*VGA

1*24BIT

1*RTL805E

8

6

COM2

DC12V
