XZ-TP12B
- 200000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
| Place of Origin | Guangdong, China | Brand Name | Xiezhen Power | |
| Model Number | XZ-TP12B | Output Power | 1 - 50W | |
| Output Type | Single | Input Voltage | Other, 100~240V OR 100~277V, 100~240V OR 100~277V | |
| Output Voltage | 30~40V | Output Frequency | 47~63Hz | |
| Output Current | 100~370mA |
Product Description
$key$

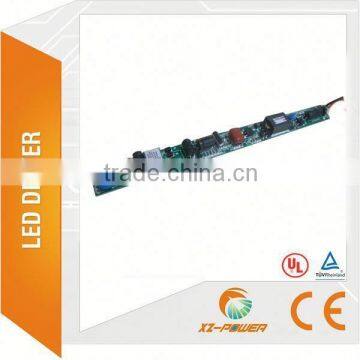

1. Professional 12W LED Tube Driver CE UL Approved LED Power
2. Efficiency=84%;
3. PF=0.9
4. Output Voltage Range 30-40V
5. Output Current Range 130MA-370MA
6. Lead Time 7~15 days;
7. Lighting protection with Lighting Surge 2KV
8. UL Ceritificate No E467833
9. 100% tested before ship ment
12W Isolated Constant Current Output LED Tube Driver XZ-TP12B | |
Output DC Voltage Range | 30-42V |
Output Rated Current Range | 180-370mA |
Output Rated Power | up to 12W |
Output Load Regulation | ±5% |
Output Turn On Time | 0.5S max. @ input 100 - 277 Vac & max. load |
Input Voltage Range | 100-277Vac |
Input Frequency Range | 47-63HZ |
Input Power Factot Typ.@230V | 0.9 mini @ full load |
Efficiency Typ.@230V | 86% mini @ full load |
AC Current | 0.5A max. @ input 100Vac & max. load |
Input Inrush Current (Typ.) | 50A max. @ input 277Vac & max. load |
THD (Total Harmonic Dist.) | 10%~20% at full load |
Protection | Short circuit/over current/over voltage |
Certificate | UL CE |
Warranty | 3 year/ 5 year |
Model No. | Input Voltage | Output Voltage | Output Current | Efficiency @ full load | Current Accuracy | Power Factor | Dimension L*W*H |
XZ-TP12B | 100-277V | 30-42V | 180-370mA | 86% | ±5% | 0.9 | L220*W17*H10 |
XZ-TP22B | 100-277V | 30-42V | 380-550mA | 88% | ±5% | 0.9 | L250*W17*H10 |
XZ-TP30B | 100-277V | 30-42V | 560-700mA | 88% | ±5% | 0.9 | L278*W17*H10 |
35-50V | 550-600mA | 88% | ±5% | ||||
XZ-TP40B | 100-277V | 30-42V | 710-1000mA | 88% | ±5% | 0.9 | L386*W17*H10 |
If you are interested more XZ power products, please visit our website
