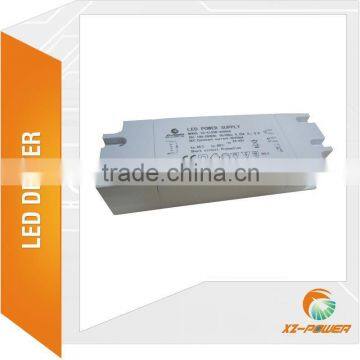

29v led driver 0-10v dimming XZ-CI16B XIEZHEN

FOB Price

USD $1 - $8 / Piece

200 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

29v led driver 0-10v dimming XZ-CI16B XIEZHEN

1. 0-10V dimmable led driver for ceiling light, spot light, panel light

2.Hight efficiency=84% OR 86%

3. High PF=0.9

4. Output Voltage Range 27-45V OR 14-29V

5. Output Current Range 200-350mA OR 200-500mA

6. Lead Time 7~15 days;

7. 100% burn-in testing before shipment;

8. good for ETL testing and Energy Star test

9. Low THD

16W Single Channel Constant Current Output LED Driver XZ-CI16B
Output DC Voltage Range	27-42V	14-29V
Output Rated Current Range	200-380mA	100-500ma
Output Rated Power	up to 16W
Output Load Regulation	±5%
Output Turn On Time	0.5S max. @ input 100 - 277 Vac & max. load
Input Voltage Range	100-277Vac
Input Frequency Range	47-63HZ
Input Power Factot Typ.@230V	0.9 mini @ full load
Efficiency Typ.@230V	84% mini @ full load
AC Current	0.25A max. @ input 100Vac & max. load
Input Inrush Current (Typ.)	30A max. @ input 277Vac & max. load
THD (Total Harmonic Dist.)
Dimming	0-10V/1-10V/pwm dimming control wide dimming range 0% up to 100%
Protection	Short circuit/over current/over voltage
Certificate	UL TUV SAA CB CE
Warranty	3 year/ 5 year

XIEZHEN 0-10V Dimming LED Driver 16W 14V 500MA UL TUV SAA CB CE with PFC Function
