Home > Products > EPS Machine > Fast Mould EPS stone Shaping Molding Machine/surfboard shaping machine
Fast Mould EPS stone Shaping Molding Machine/surfboard shaping machine
- 50 Set / Sets per Month
- Shanghai for Shape Molding Machine
- T/T
You May Like
-
high quality polyfoam pre-expander machine
-
polyfoam cutting machine/EPS cutting machine /Polystyrene Cutter
-
Automatic poly foam Styrofoam/Polyfoam EPS polystyrene Air Block Moulding Machine
-
polystirol sandwich panel machine line/eps machine
-
automatic polystirol shape moulding machine/eps machine
-
Polystirol Block Moulding Machine/EPS Machine
Product Details
| Condition | New | Type | Other, eps expanding machine of cool shape moulding | |
| Plastic Type | EPS | Product Type | Other, eps expanding machine of cool shape moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | SPC | Model Number | SPC eps expanding machine, PSF+PSZ | |
| Voltage | 380V/50HZ | Power(W) | 35kw | |
| Weight | 4300kg | Dimension(L*W*H) | 4600*2100*2720mm | |
| Certification | BV,CE, ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Fast Mould EPS stone Shaping Molding Machine/surfboard shaping machine
(this machine can produce EPS / Polystyrene foam in different shapes with efficient precision)
Main Feature of eps shape machine:
1. Adopt PLC control system and touch screen. adapt to the normal EPS machine mold
2. Two ways feeding-injectors .
3. PLC control system can remember different molds data.
4. Can set as the auto/continual/manual procedure.
5. Can change the heating ways according to the products.
6. Low installed power, low energy consumption.
7. Adjust the de-molding line according to the thickness of products.
Technical Parameter of eps shape machine:
DES | Unit/ item | SPC500 | SPC900 | SPC1300 | SPC1500 | SPC2000 |
Mold size | mm | 1200×1000 | 1400×1200 | 1600×1350 | 1800×1530 | 2000×1750 |
Product size | mm | 1060×810×300 | 1230×1030×300 | 1480×1180×300 | 1560×1360×300 | 1780×1580×300 |
Mold open distance | mm | 200-1300 | 200-1300 | 200-1300 | 200-1300 | 200-1300 |
Steam consumption | Kg/cycle | 7 | 9 | 10 | 11 | 13 |
Vacuum pump capacity | m3/h | 165 | 230 | 280 | 180 | 280 |
Power | KW | 11 | 13.5 | 16 | 19.6 | 23 |
Outsize | mm | 4850×1860×3900 | 5100×2160×4000 | 5300×2250×4200 | 5400×2550×4600 | 5500×2800×4850 |
Weight | kg | 4150 | 4300 | 4500 | 5000 | 6800 |

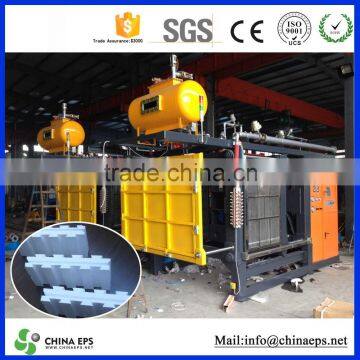

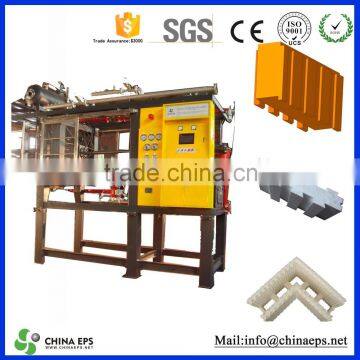

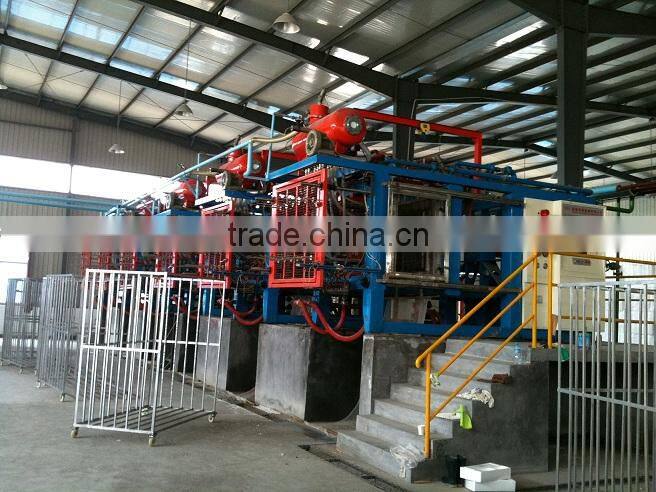

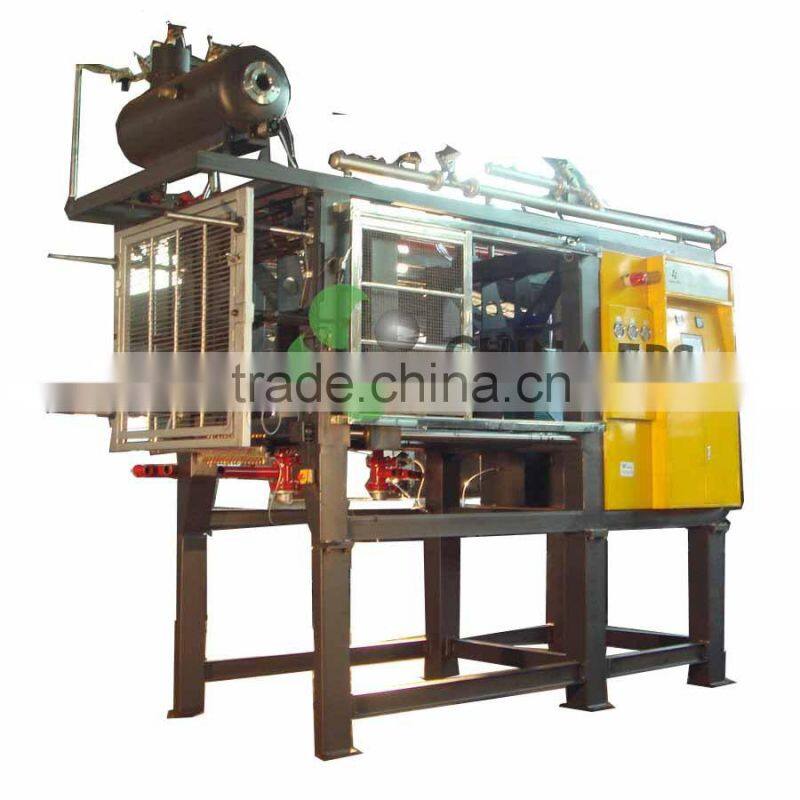

Photos of eps shape machine:

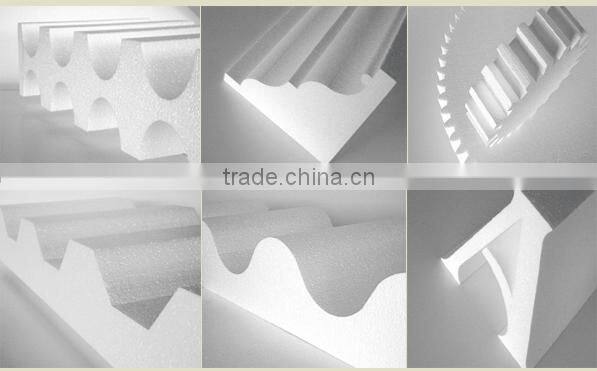

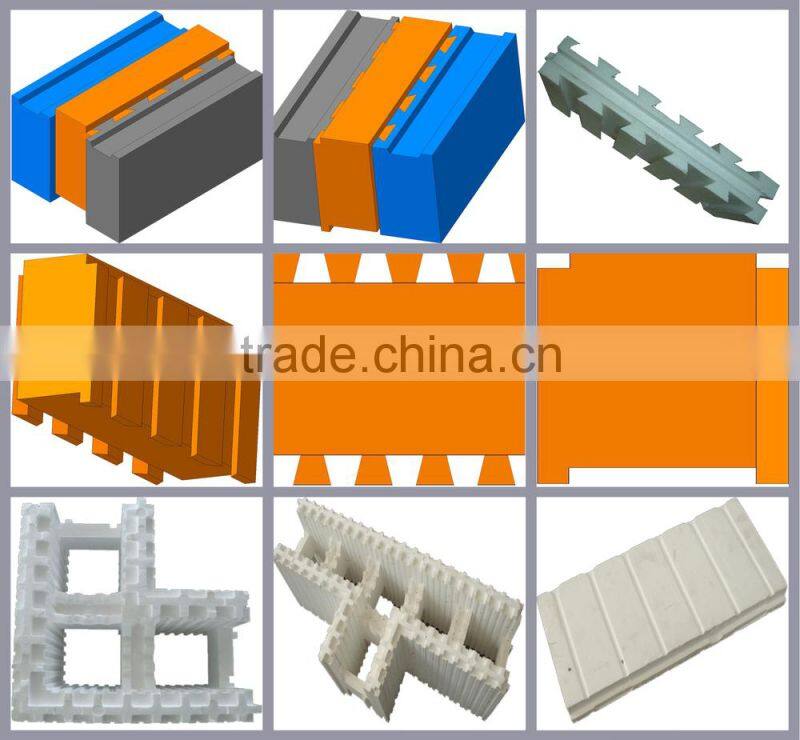

Applications of eps shape machine:
Standard export packing: In wooden case, plastic paper or wrapped with film, etc. (or Customization)
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally, 35% as the deposit first by T/T, the rest 65% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Welcome to contact us for long business cooperation !
Mob: 0086 13606167128
mail:info (at) chinaeps (dot) net
www:
MORE INFORMATION CAN BE FOUND AT OUR WEB SITE.
