Home > Products > Electroplating line > Manually Nickel and Gold Plating Production Machine
Manually Nickel and Gold Plating Production Machine
- Shanghai
You May Like
Product Details
| Condition | New | Type | Coating Production Line | |
| Substrate | Steel | Coating | Plating | |
| Place of Origin | Jiangsu, China | Warranty | 1year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Manually Nickel and Gold Plating Production Line
PROCESS FLOW
Ultrasonic oil removing---Hot water rinsing---Water washing---Oil removing---Hot water rinsing---Water washing1---Water washing2---Micro-etching---Water washing---Activation---Water washing1---Water washing2---Water washing3---Pure water washing---Nickel plating1---Nickel plating2---Recycle---Water washing1---Water washing2---Water washing3---Gold plating---Recycle---Water washing1---Water washing2---Water washing3---Protection---Water washing1---Water washing2---Hot water washing
MAINLY SPECIFICATION
Size of machine | L13580×W1800×H1980mm |
Protection capacity | 1500-2000m2 |
Size of maximal board | 1000mm×280mm |
Volume of plating tank | L1150×W300×H600mm |
Frequency of waving |
10times/minute |
Rectifier | 100A/12V |
Power voltage |
Three-phase four-wire 380V 50HZ |
Total power of the machine | 55KW |

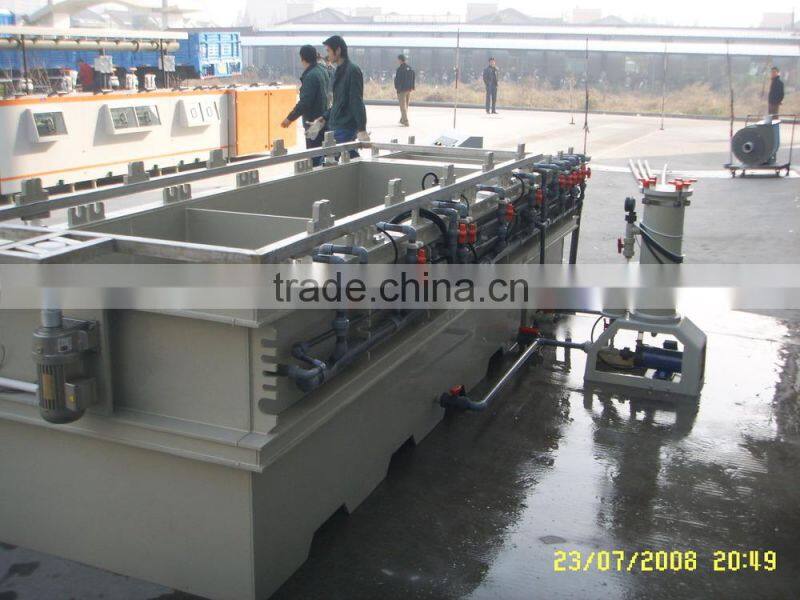

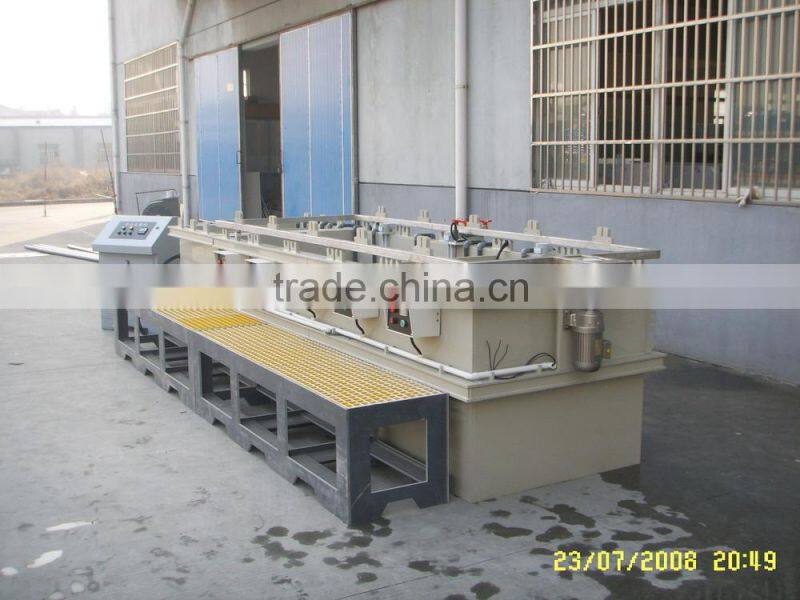

Whole view
