Home > Products > Oilfield dedicated instruments and equipments > Winch sensor

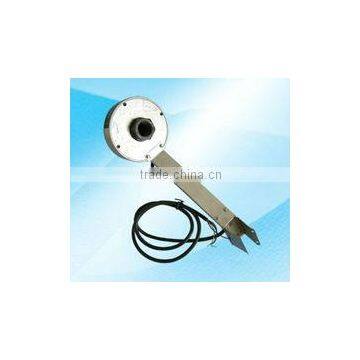

Winch sensor
- Da Lian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | HK | |
| Model Number | 4001 |
Product Description
Specifications
self-check function, double thrust bearings, the framework is adjustable
Product features
New design: self-check function, double thrust bearings, and the framework is adjustable
New materials: stainless steel casing, imported high-speed bearing
New technology: stamping formed, argon-arc welded, sealed by high-temperature glue. KH sensor is designed by new technology, new materials and brand new design scheme, which thoroughly solves the problem of wedging of various rotors in the past. The framework of the sensor can be adjusted at random, which is helpful to install and fix on site. With the new self-check function, it indicates normal working when the two indicating lamps are light as the rotor running, so as to prevent the trouble of contacting between the installation site and the machine house.
Source of power: 4.5~28V DC(recommended 5V)
Working current: 14~20mA
Absorption current: 5mA
Load impedance: >800Ω
Working frequency: 0~80kHz
Way of output: current and voltage converting automatically
Output signal: 2×12 impulse/round (effective impulse 12)
Working ambient temperature: -55~125oC
