DVB-S2 Satellite Set Top Box With OTA
US$ 1 - 30
/ Piece
1000 Pieces(Min. Order)
- Zhuhai/Shengzhen/Guangzhou
- T/T Credit Card
You May Like
-
Sunplus1506c Chipset Mini Size Full HD 1080P DVB-S2 Satellite Set Top Box for Home Use
-
Sunplus1512 HD DVB-S2 IPTV Satellite TV Receiver With 3G Wifi RJ45
-
Hot Sale Digital HD DVB-S2 IPTV Satellite TV Receiver With Webserver Function
-
Metal Housing Multi-search DVB-T Terrestrial TV Receiver With Stereo Audio Output
-
ALI3105 Chipset DVB-T Terrestrial Set Top Box With MPEG-4 H.264 Decoding
-
MSD7T01 Chipset HD 1080P ISDB-T Digital Terrestrial TV Receiver With MPEG-2/MPEG-4 Decoding
Product Details
| Place of Origin | Guangdong, China | Brand Name | Chieta | |
| Model Number | GX-6605 |
Product Description
Feature
*.DVB-S/S2 compliant
*1080p display
*.Support MEPG-4 / MPEG-2
*USB PVR ready

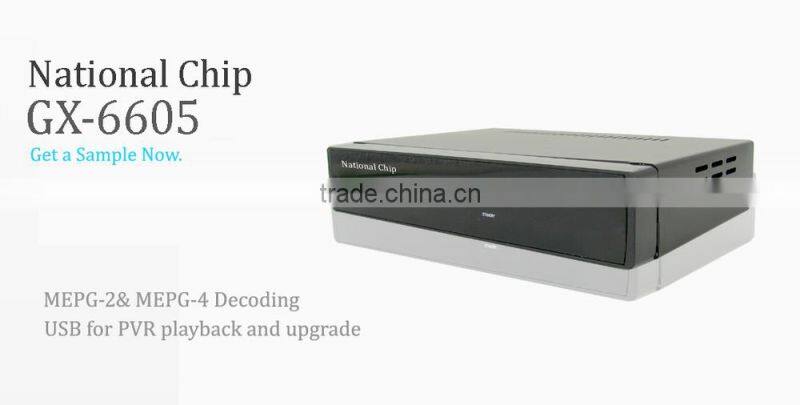

DVB-S2 Satellite Set Top Box with OTA
Product Description
Fully Compliant with DVB-S2 Standard
MPEG-4 Decoded/H264/MPEG-2
PAL: 576i/576p/720p/1080i, NTSC: 480i/480p/720p/1080i
Normal Advanced Security Supported
Bright, Contrast and Saturation Adjustable
Last Channel Memory & Multi-Language Supported
Auto/Manual Scan Selectable and Network Search Available
7 Day EPG, LCN, Games, Timer, Parental Lock and Fav.Group Available
S/W Upgrade via RS232/USB Optional
Bouquet Function Available
NIT Auto Detect for Channel Change, LCN Change and etc.
Meida Play Support
Program Reminder Function
Timers Display and Management
Volume Offset for Each Channel
Open to the latter value-added services
OSD Menu View
Specification Detail
| Mainboard | Chip Set | GX6605 |
| CPU Frequency | 600MHZ | |
| Demodulator | Embedded | |
| DDR | 1G Bit | |
| Flash | 8MB | |
| Tuner | AV2018 | |
| Crystal | 27MHz | |
| Size | N/A | |
| Front Panel | LED Indicator | Red: PowerGreen: Lock |
| IR | Yes | |
| 4-digit LED Display | w/o | |

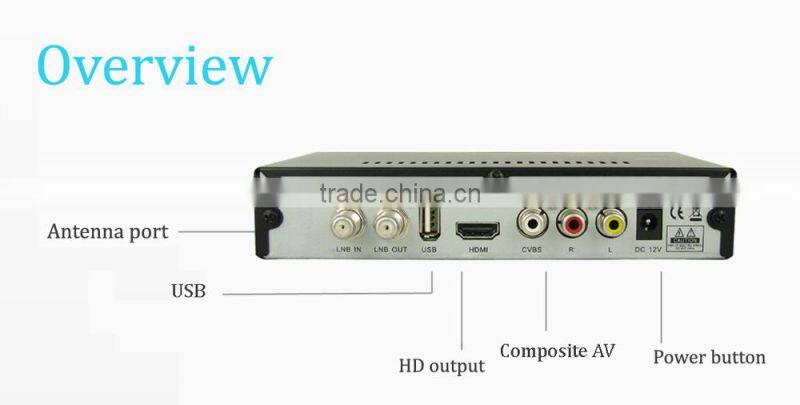

| Rear Panel | Cable In | F-Type Female |
| Cable Out | No | |
| HDMI | Yes | |
| RCA | Audio_L, Audio_R, CVBS | |
| Power Supply | Type: External PowerWorking Input Voltage: 12V DC | |
| Tuner | Tuner Type | Onboard |
| Cable Input | F-Type | |
| Cable Out | No | |
| Input Frequency | 950 ~ 2150 MHz | |
| Input Signal Range | -70 ~ -25 dBm | |
| Input Impedance | 75Ω |
Packaging & Shipping
| Unit Packing Size | PCS/ Carton |
| 190*180*45mm | 20 pcs |
| Carton CBM (0.03m3) | QTY per Container |
| 41*30*33 cm | 20GP: 12100pcs |
| Box Type | 40GP: 27000pcs |
| Color/ Neutral | 40HQ: 33000pcs |
| Unit Weight: | Carton Weight: |
| approx. 0.5kg | 10.5kgs |
