Quad Core Android OTT TV BOX Amlogic S805 With WIFI

FOB Price

US$ 20 - 35 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Chieta OTT TV Box
Model Number	A38

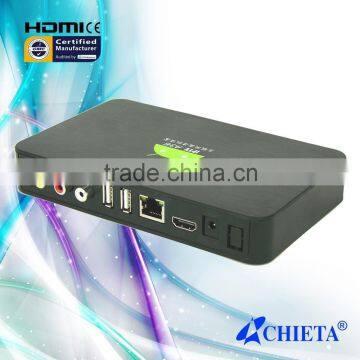

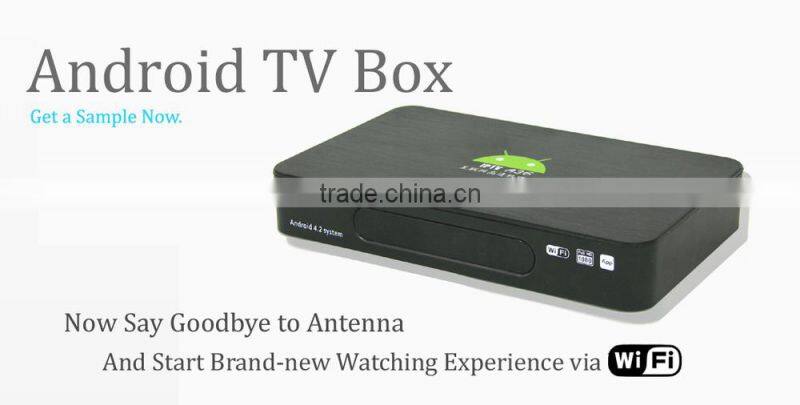

Quad Core Android OTT TV BOX Amlogic S805 with WIFI

Product Description

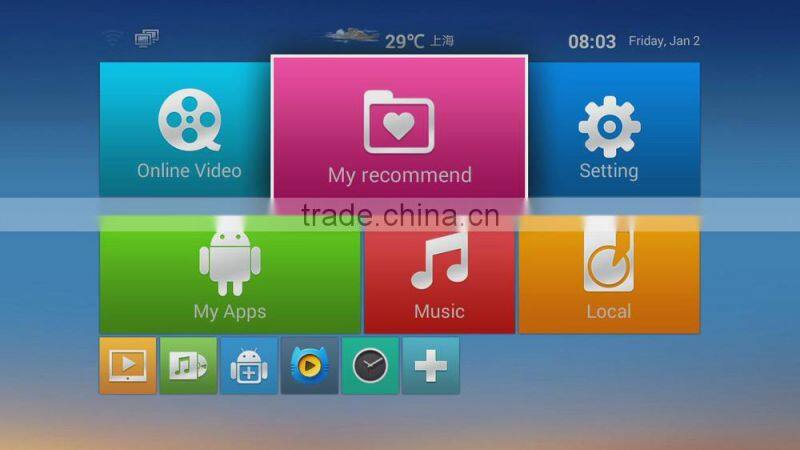

OSD Menu View

Specification Detail

*Android 4.4 platform with better experience
*ARM Cortex-A7 1.0G 4-Core Processor
*2USB+ RJ45+AV+HDMI port
*Built in WIFI module

Video	Decoder	1. 1MPEG2 ISO/IEC 13818-2 MP@ML,
		2. H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL
	Display Resolution	1920×1080,1280×720,720×480 (i&p)
	Supported Videos	AVC,MJPEG,DviX,DivX 5,DivX 3 Low,WMV3 (VC-1),H.263,MPEG-4 Visual,S-Mpeg 4 v3,MPEG-1 Video,MPEG-2 Video,Sorenson H263,On2 VP6,Real 2,Real 3,RealVideo 3,RealVideo 2,RealVideo 4,DivX 4,WMV1,WMV2,MPEG,MPEG-4 Visual ASP,Real 4,V_VP8,MS MPEG-4 1/2,VC-1,S-Mpeg 4 v2,VP6,H.265
Picture	Supported Picture	.jpg, .png, .bmp, .gif
	Supported Audio	MPEG-1 Audio layer 3,DTS,PCM,MPEG-1 Audio layer 2,WMA2,MPEG-1/2 L3,Vorbis,MPEG-2 Audio layer 3,AMR-WB,AMR-NB,AAC LC,AAC LC-SBR,ADPCM,AAC LC-SBR-PS,AAC Main,Cooker,WMA3,U-Law,G.729,AAC-LC,AAC-HE,MPEG-1L3,MPEG-2 Audio layer 2,AAC LTP,TrueHD,DTS-HD ,FLAC
Audio	Decoder	MPEG-1,MPEG-2(Layer I/II)
	Mode	LEFT/RIGHT/STEREO/MONO
	Frequency	32KHz,44.1KHz,48KHz
	Response	20HZ~20KHZ +/-2Db
AV Output	Video Bandwidth	SD:5.0MHz(-3dB),HD:30MHz(-3dB)
	Video Impedance	75Ω
	Video Voltage Level	1.0 Vp-p
	Audio Freq. Range	20~20KHz
	Audio Impedance	600Ω
	Audio Voltage Level	2V rms(5.6Vp-p)
Ethernet	Wifi Module	Optional
	External WIFI Mouse and Keypad	Support
	RF45 Port	Yes
Environment	Power input voltage	AC 100~240V,50Hz/60Hz
	Power Consumption	Max 12W
	Humidity	<95%
	Operation Temperature	0°C~40°C

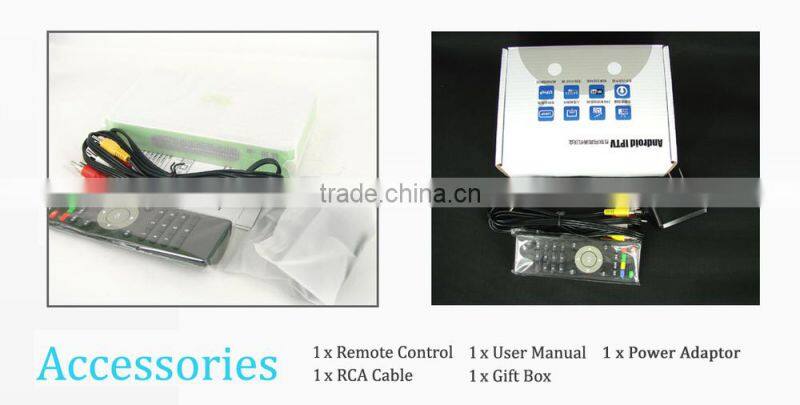

Packaging & Shipping
