DVB-S Digital TV Satellite Receiver With RS-232 Update Software
- Zhuhai/Shengzhen/Guangzhou
- T/T Credit Card
You May Like
-
Ali3329 Chipset 260mm Design SD DVB-S Digital Satellite Receiver
-
DVB-S Satellite TV Receiver MPEG2 SD FTA Digital TV Set Top Box
-
RS-232 Serial Super DVB-S Satellite Set Top Box With MPEG-2 Decoding Design for Russia Country
-
Haier2302 Chipset 220mm Design DVB-S TV Satellite Receiver With SCART Interface for Russia
-
National Chip DVB-S2 Satellite Digital TV Receiver With LED Display
-
DVB-S2 Satellite Set Top Box With OTA
Product Details
| Place of Origin | Guangdong, China | Brand Name | Chieta | |
| Model Number | SCT-3688M |
Product Description
Advantage
*Biss satellite receiver
*DVB-S & MPEG-2 compliant
*SCART/ AV port optional
*Many panels for your choice

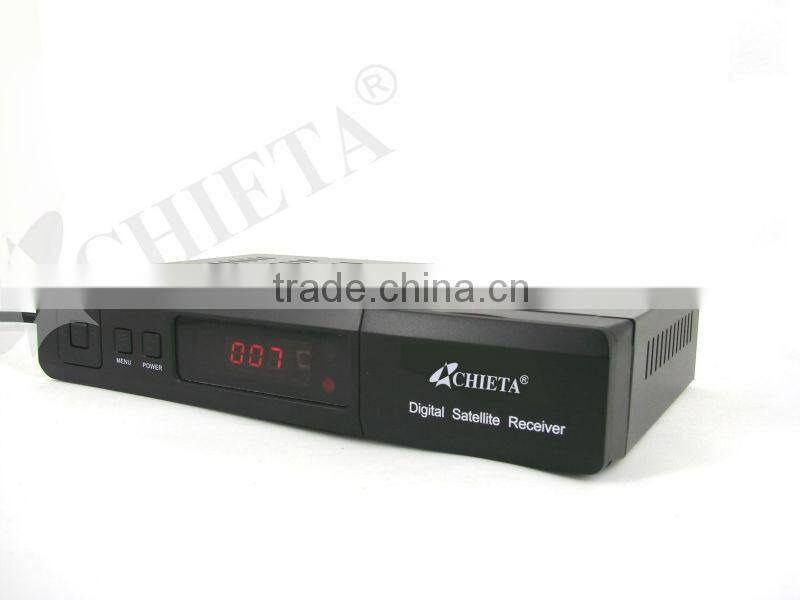

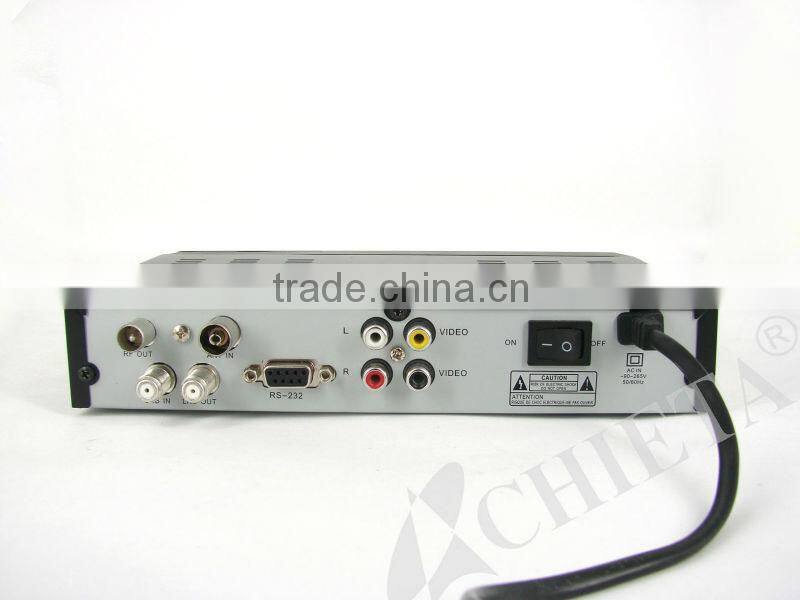

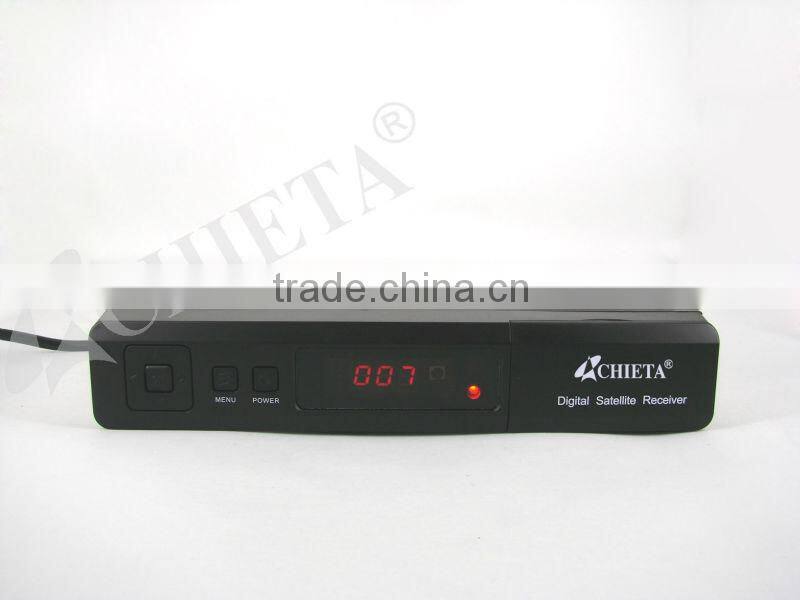

DVB-S Digital TV Satellite Receiver with RS-232 Update Software
CHIPSET Ali3328/3329
Compatible with DVB-S/MPEG-2
Ultra low threshold(<2.2dB)
Storing 2000 channels
With RF- port
9PIP function
Signal indicator available
0/22KHz function available
DiSEqC 1.0,1.2function available
PID settings available
Power off memory
Software upgradable via RS-232
BOX-to-BOX upgrading function available
Highly reliable ON/OFF power switch
Tuner | Frequency range | 950~2,150MHz |
Input level | -79~-11dBm | |
Input impedance | 75ohms | |
IF band width | 27~36MHz | |
Threshold | <2.2dB | |
Input interface | F-type | |
Audio | Audio output | L/R |
Frequency characteristic | <=+/-0.5dB(20Hz-20KHz) | |
Audio SNR | >=70dB | |
Level difference between left and right sound channels: | <=0.3dB(60Hz-18KHz) | |
Output connector | RCA | |
Video | Decode format | MPEG- |
Bit rate | <=15Mbps | |
Output mode | NTSC/PAL | |
Video output | 1V+/-20(mV)P-P | |
Resolution | 720x576(PAL),720x480(NTSC) | |
Channel decode | Demodulation mode | QPSK |
Symbol rate | 2~45Mbps | |
LNB power supply | 13/18V | |
Operating voltage | 80270V AC | |
Power | 20W(Max.) |
| Unit Packing Size | PCS/ Carton |
| 230*210*45mm | 20pcs |
| Carton CBM (0.06m3) | QTY per Container |
| 53.0*45.5*25.5 cm | 20GP: 9180pcs |
| Box Type | 40GP: 16390pcs |
| Color/ Neutral | 40HQ: 21310pcs |
| Unit Weight: | Carton Weight: |
| 720g | 15.5kg |
