Product Details
| Place of Origin | Guangdong, China | Brand Name | Chieta Satellite Receiver | |
| Model Number | HD-7816 198mm | FTA(Free To Air) | Yes | |
| Type | Digital | High Definition | Yes |
Product Description
Low Cost DVB-S2 TV Digital Satellite Receiver
*DVB-S/S2 standard compliant
*Compatible with MPEG-4,MPEG-2 output
*Compatible with MPEG-1 Layer I & II, Stereo Digital Audio
*950-2150MHz input & LOOP OUT

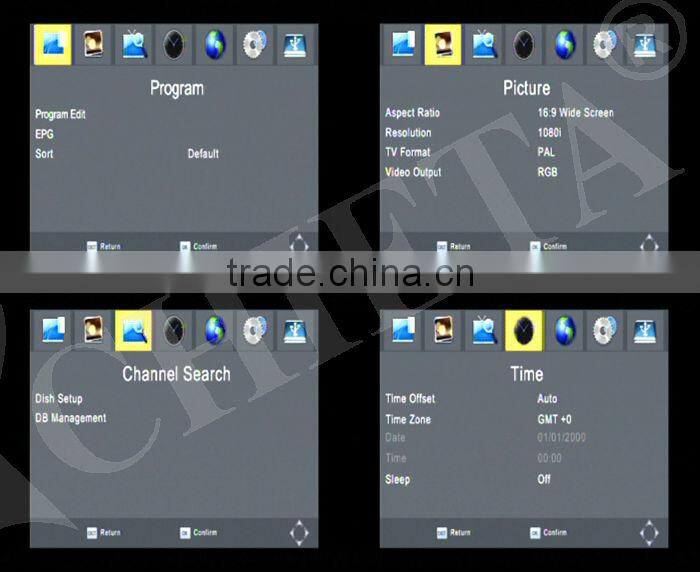

*Multi-bilingual OSD language, audio & subtitle language supported
*Fully support to Electronic Program Guide(EPG)
*Support Auto & Manual search and Bilnd Scan
*Channel editing: Favorites, Move, Skip,Lock, Delete
*Coaxial S/PDIF output
*Support 4:3 and 16:9 Aspect Ratio
*Support High Definition Multimedia Interface
*USB 2.0 interface PVR& media playback
*Record digital television FTA program to a USB Flash Drive
*Software upgrade via USB2.0
English, French, Deutsch, Italian, Spanish, Swedish, Danish, Greece, Portuguese, Finland, Holland, Turkish, Czech | ||
Input Frequency | 950~2150MHz | |
Loop Out Frequency | 950~2150MHz | |
Input Level | -65~ -25dBm | |
Input Impedance | 75Ω | |
LNB Power | Auto/14v/18v/OFF | |
Video Decoder |
| |
Video Compression | MPEG-2& MPEG-1 compatible, H.246 | |
Video Formats | 4:3 / 16:9 | |
Letterbox for 4:3 TV-Device |
| |
Audio Decoder |
| |
Audio Compression | MPEG-1 & MPEG-2 Layer I and II, MP3 | |
Audio Mode | Dual (main/sub), Stereo | |
Frequency | 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz 24 kHz | |
Digital Output |
| |
Output Level | 0,5 Vss on 75 Ohm | |
Sampled Data Filtering | 32 kHz, 44.1 kHz, 48 kHz | |
S/PDIF-Output optical, Toslink |
| |
Video Parameter |
| |
Input Level | FBAS 1 Vss +/- 0.3 dB on 75 Ohm | |
Teletext filter in conformity with ETS 300 472 Standard | ||
Console Interface |
| |

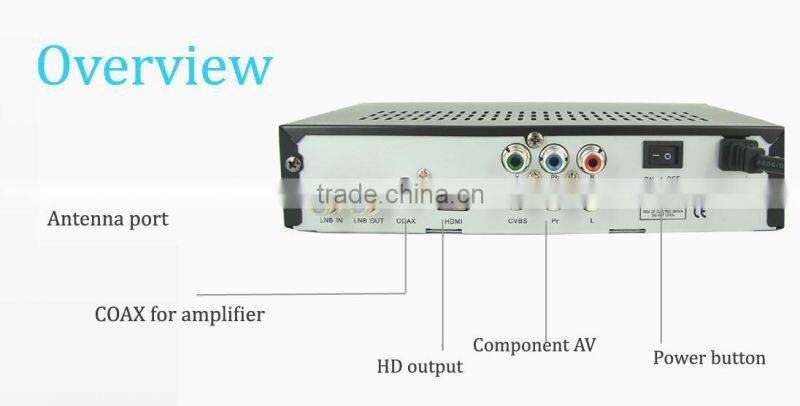

LNB In | IEC169-24.F-Type.Female | |
LNB Out | IEC169-24.F-Type.Female | |
Video Output | 1×CVBS/1×YpYbYr/1×HD port(optional) | |
Audio Output | 1×RCA | |
USB | 1×USB2.0 Host Type-A | |
|
| |
LNB Power and Polarisation Per Tuner |
| |
LNB Voltage Vertical | < 14V no load, > 11,5V at 400mA | |
LNB Voltage Horizontal | < 20V no load, > 17.3V at 400mA | |
Count of Active Satellite Position |
| |
DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION / SAT OPTION | ||
DiSEqC - Rotor Control | ||
